Marantz SC-11S1 Service Manual

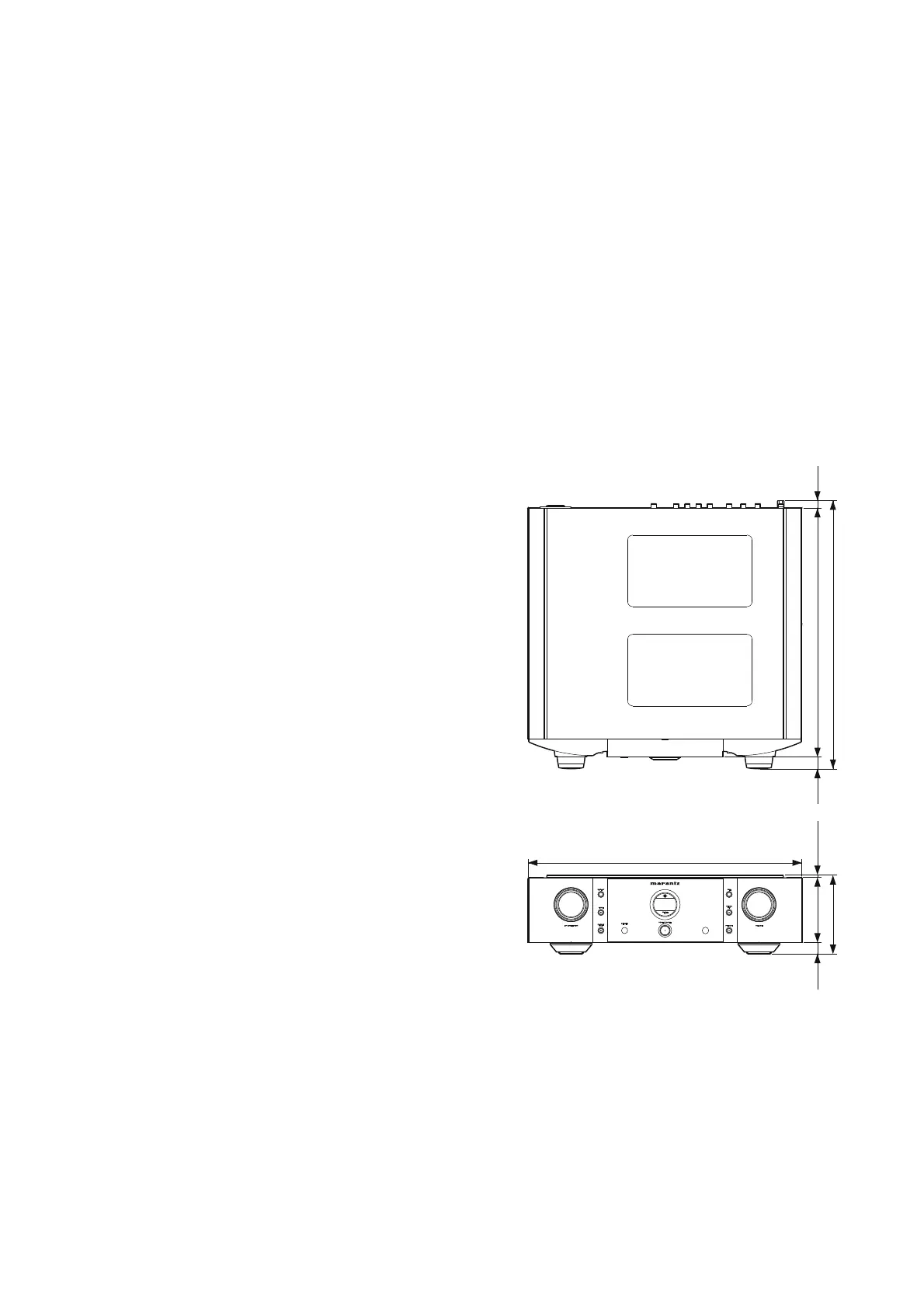

1
12
(1/2)
431 (17)
400 (15-3/4)
19
(3/4)
4 (3/16)
127 (5)
18
(3/4)
105 (4-3/16)
440 (17-3/8)
SC-11S1UN01Eng.indd29 07.9.142:40:03PM
1. TECHNICAL SPECIFICATIONS
Power output (20 Hz ~ 20 kHz)
..................................................... 2.0V (BALANCED)
................................................2.0V (UNBALANCED)
Maximum output
(20Hz ~ 20kHz)
................................................... 13.5V (BALANCED)
..............................................13.5V (UNBALANCED)
Total frequency distortion (20Hz ~ 20kHz)
................................................ 0.002% (BALANCED)
........................................... 0.003% (UNBALANCED)
Frequency response (±3dB)
........................................ 5Hz ~ 120kHz(BALANCED
...................................5Hz ~ 120kHz(UNBALANCED
Input sensitivity/Input impedance
PHONO (MC) ............................................... 280µV/100
Ω
PHONO (MM) ...............................................2.9mV/47k
Ω
BALANCED .................................................250mV/20k
Ω
CD/LINE/RECORDER .................................250mV/20k
Ω
S/N rate (IHF-A network, 0.5V output)
PHONO (MC) .................................... 78dB (0.5mV input)
PHONO (MM) ...................................... 89dB (5mV input)
BALANCED ..................................... 98dB (500mV input)
CD/LINE/RECORDER ..................... 98dB (500mV input)
Tone control
Bass (50Hz) .........................................................±8.0dB
Treble (20kHz) .......................................................±8.0dB
Maximum allowed PHONO input (1kHz)
MC ..........................................................................15mV
MM ........................................................................150mV
Headphone maximum output (20Hz ~ 20kHz)
.....................................200mW + 200mW (32
Ω
load)
...................................400mW + 400mW (600
Ω
load)
Headphone total frequency distortion (20Hz ~ 20kHz)
....................................................................... 0.015%
Headphone frequency response (±3dB) .........5Hz ~ 100kHz
Power requirement
[/F] ..................................................AC 100V 50/60Hz
[/N] ..................................................AC 230V 50/60Hz
[/U] .......................................................AC 120V 60Hz
Power consumption
EN60065, UL60065 ..................................................35W
J60065 [/F] ................................................................30W
Maximum outer dimensions
Width ...................................................440mm (17-3/8 in)
Height ......................................................... 127mm (5 in)
Depth ....................................................... 431mm (17 in)
Weight .........................................................16.0kg (35.3 lbs)
Accessories
Remote controller .......................................................... 1
AAA/R03 batteries ......................................................... 2
Detachable AC power cable ........................................... 1
2. CAUTION
The layout of this amplifier is well concerned for sound quality.
1. When screws and washers are removed, those parts must
be set to the same places.
2. When wires are removed, the wires must be installed in the
same roots, same places.
3. Do not hold the side panel (001D) to move the unit when
the unit is disassembled.
2. 注意
当機は音質を考慮したレイアウトになっています。
1. ネジやワッシャ類を取り外した場合、元の位置に取り付け
てください。
2. ワイヤ類を取り外した場合の配線ルートは、元のルート通
りに戻してください。
3. 当機を分解した状態で移動するときは、サイドパネル
(001D)を持たないでください。
