Marantz SC-11S1 Service Manual

5453
鉛フリー半田
鉛フリー半田
半田付けには、鉛フリー半田
(Sn-Ag-Cu)
を使用してください。
Lead-free Solder
When soldering, use the Lead-free Solder (Sn-Ag-Cu).
C151 D9
C152 D9
C153 C9
C154 C9
C155 B6
C156 B7
C157 B8
C158 B8
C159 C9
C160 C9
C161 A6
C162 A8
C193 B10
C194 B10
C195 A10
C196 A10
C601 H7
C602 H3
C603 H8
C604 H5
C605 H8
C606 H4
C607 H8
C608 H4
C609 G8
C610 G4
C611 G8
C612 G4
C613 G7
C614 G3
C615 G8
C616 G5
C651 G6
C652 G3
C653 G9
C654 G5
C655 F7
C656 F3
C657 F9
C658 F5
C659 G7
C660 G3
C661 G9
C662 G5
C663 F7
C664 F3
C665 F9
C666 F5
C671 F8
C672 F4
C673 F8
C674 F4
C675 F8
C676 F4
C681 F10
C682 G10
C683 F10
C684 G10
C685 F10
C686 H10
C687 H2
C691 F2
CA01 A2
CA03 B2
CA04 B2
CA05 B2
CA06 B2
CA07 C2
CA08 C2
CA09 D2
CA10 D3
CA11 C3
CA12 C3
CB01 A3
CB03 B3
CB04 B4
CB05 B3
CB06 B4
CB07 C3
CB08 C3
CB09 D3
CB10 D4
CB11 C4
CB12 C4
CC01 A4
CC03 B4
CC04 B5
CC05 B4
CC06 B5
CC07 C4
CC08 C5
CC09 D4
CC10 D5
CC11 C5
CC12 C5
CD01 A6
CD03 B6
CD04 B6
CD05 B6
CD06 B6
CD07 C6
CD08 C6
CD09 D6
CD10 D6
CD11 C7
CD12 C7
CE01 A7
CE03 B7
CE04 B8
CE05 B7
CE06 B8
CE07 C7
CE08 C7
CE09 D7
CE10 D8
CE11 C8
CE12 C8
D101 E2
D151 B9
D152 B9
D191 D10
DA01 E2
DB01 E4
DC01 E5
DD01 E6
DE01 E7
J101 D1
J102 E1
J103 G1
J104 I1
J151 A6
J152 A8
J191 H6
J192 A10
J199 I6
J601 H8
J602 H4
J603 H2
J691 F1
JA01 A2
JB01 A3
JC01 A4
JD01 A5
JE01 A7
L101 E1
L102 H1
L103 H1
L151 B9
L152 B9
L191 D10
LA01 E2
LB01 E3
LC01 E5
LD01 E6
LE01 E7
Q101 E1
Q102 E2
Q103 C2
Q104 C2
Q151 D9
Q153 B8
Q154 B8
Q155 E9
Q156 E9
Q191 E9
Q192 E10
Q601 G8
Q602 G4
Q651 G7
Q652 G3
Q653 G9
Q654 G5
Q681 F10
Q682 G10
Q691 G2
Q692 G2
Q693 G2
Q694 G2
QA01 C2
QA02 C2
QA03 E3
QA04 E3
QB01 C3
QB02 C4
QB03 E4
QB04 E4
QC01 C5
QC02 C5
QC03 E5
QC04 E6
QD01 C6
QD02 C6
QD03 E6
QD04 E7
QE01 C7
QE02 C8
QE03 E8
QE04 E8
R101 E1
R103 C8
R104 D8
R151 E8
R152 D8
R153 D9
R154 D10
R155 D9
R156 D9
R157 D9
R158 C10
R159 B10
R160 B9
R161 B8
R162 B9
R163 B6
R164 B7
R165 B8
R166 B8
R169 C8
R170 C10
R171 C9
R172 C9
R201 C10
R202 C11
R203 C10
R204 C11
R205 B10
R206 B11
R207 D10
R601 H8
R602 H4
R603 H8
R604 H4
R605 H8
R606 H4
R607 H8
R608 H4
R609 H8
R610 H4
R611 H8
R612 H4
R613 G7
R614 G4
R615 G8
R616 G4
R617 H7
R618 H3
R619 H9
R620 H5
R621 H7
R622 H3
R623 H9
R624 H5
R651 G6
R652 G3
R653 G8
R654 G5
R655 G6
R656 G2
R657 G8
R658 G5
R659 G7
R660 G3
R661 G9
R662 G5
R663 G7
R664 G3
R665 G9
R666 G6
R671 H9
R672 H5
R673 H9
R674 H5
R681 F10
R682 G10
R683 F10
R684 G10
R685 F10
R686 G10
R687 F10
R688 H10
R691 G2
R692 G2
R693 F2
R694 F2
R695 E10
R701 G6
R702 G2
R703 G8
R704 G4
R705 G6
R706 G2
R707 G8
R708 G5
R709 G6
R710 G2
R711 G8
R712 G5
R713 F6
R714 F2
R715 F8
R716 F5
R717 F6
R718 F2
R719 F8
R720 F5
R721 F6
R722 F2
R723 F8
R724 F5
R725 F6
R726 F2
R727 F8
R728 F5
R729 F6
R730 F2
R731 F8
R732 F5
R733 F6
R734 F2
R735 F8
R736 F5
R737 F6
R738 F2
R739 F8
R740 F5
R751 G7
R752 G4
R753 G10
R754 G6
R755 G7
R756 G3
R757 G9
R758 G5
R759 G7
R760 G4
R761 G10
R762 G6
R763 F7
R764 F4
R765 F10
R766 F6
R767 F7
R768 F4
R769 F10
R770 F6
R771 F7
R772 F4
R773 F10
R774 F6
R775 F7
R776 F4
R777 F10
R778 F6
R779 F7
R780 F4
R781 F10
R782 F6
R783 F7
R784 F4
R785 F10
R786 F6
R787 F7
R788 F4
R789 F10
R790 F6
RA01 B2
RA02 B2
RA03 B2
RA04 B2
RA05 B2
RA06 B2
RA07 E2
RA08 D3
RA09 E2
RB01 B3
RB02 B3
RB03 B3
RB04 B3
RB05 B3
RB06 B3
RB07 E3
RB08 D4
RB09 E3
RC01 B4
RC02 B5
RC03 B4
RC04 B5
RC05 B4
RC06 B5
RC07 E4
RC08 D5
RC09 E5
RD01 B6
RD02 B6
RD03 B6
RD04 B6
RD05 B6
RD06 B6
RD07 E6
RD08 D6
RD09 E6
RE01 B7
RE02 B7
RE03 B7
RE04 B7
RE05 B7
RE06 B7
RE07 E7
RE08 D8
RE09 E7
RR11 A9
RR12 A9
RR13 A9
RR14 A9
RR15 A9
U001 F2
U002 D2
U003 E8
P601A

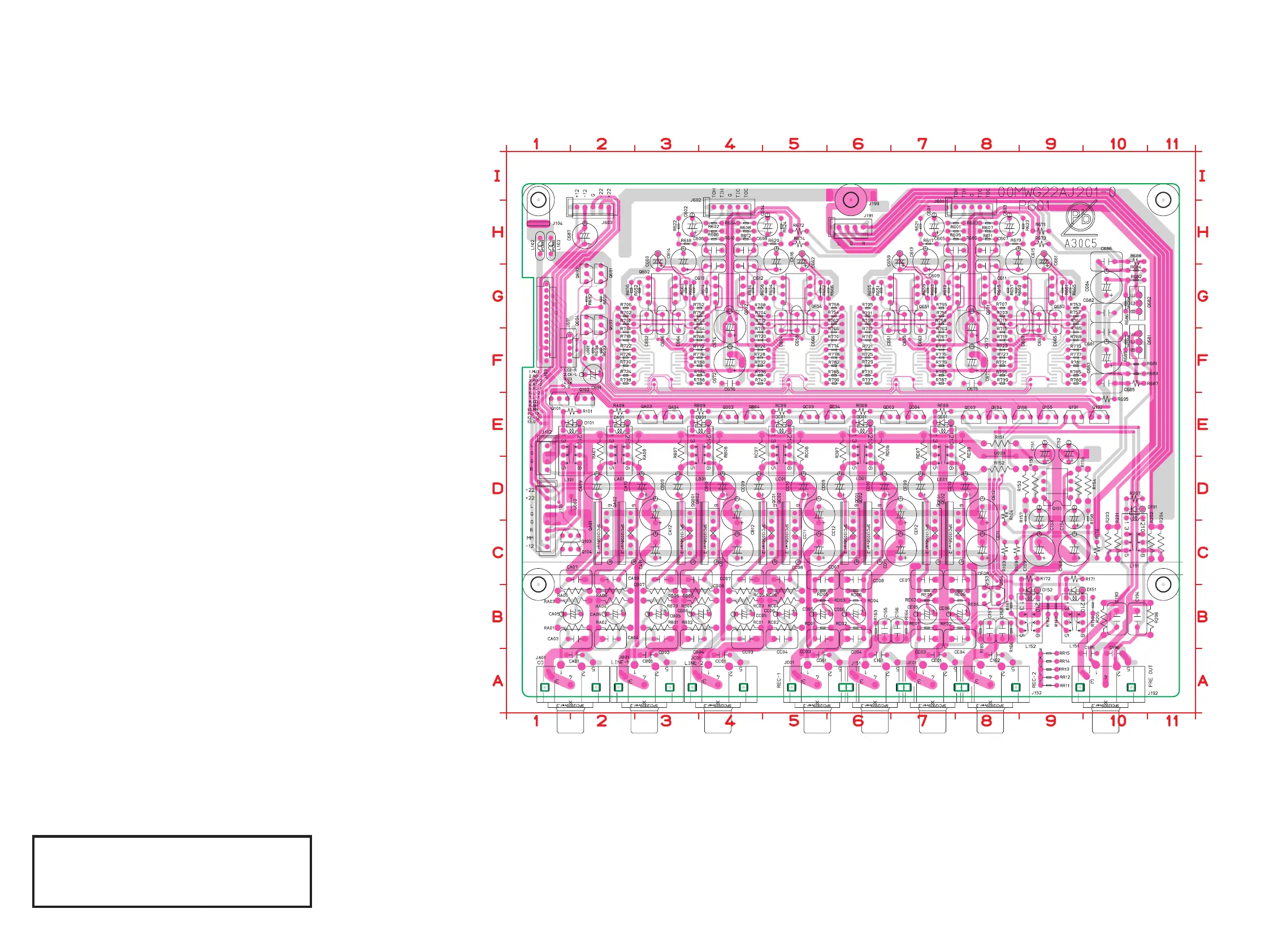

9. PARTS LOCATION
