75

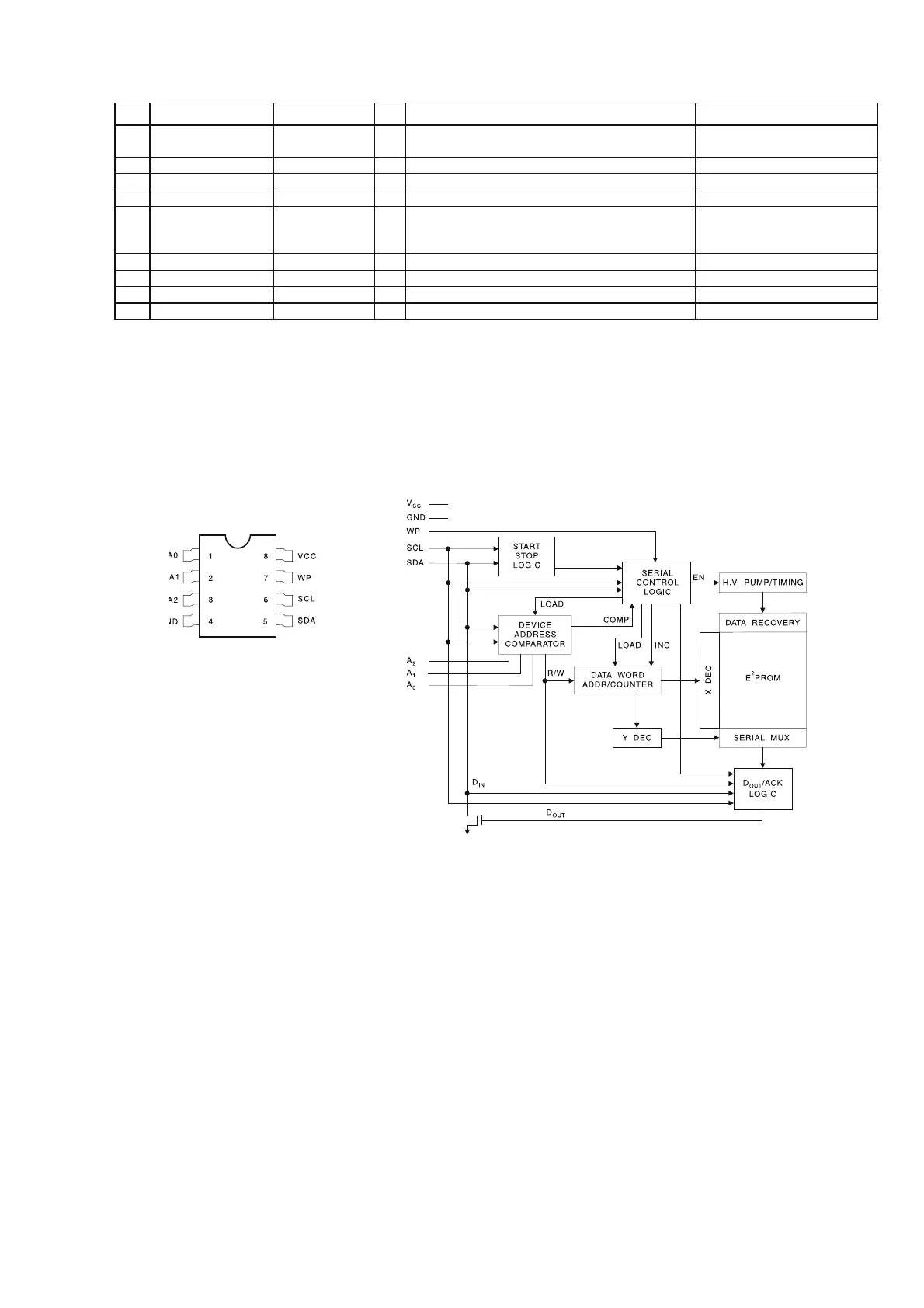

PU01 / QU03 : AT24C08A
Pin PORT
SIGNAL NAME
I/O Function Description
57 P31 RS O
LCD-Controler(SPLC093C) REGISTER
SELECT
H/L = Data/Status
58 P30 RES O LCD-Controler(SPLC093C) RESET Active L(Reset)
59 PB3_AN3 BORD_TST2 I PWB mode setting 2
60 PB2_AN2 BORD_TST1 I PWB mode setting 1
61 PB1_AN1 D-SET I LCD driver communication Mohd setting input
H/L = Communicates by
100msec/communication of
the operation
62 PB0_AN0 AD3 I Analog KEY information
63 PB4_AN4 NC5 I
64 PB5_AN5 NC6 I
PU01 / QU01 : HD64F3687H
To Next Page
