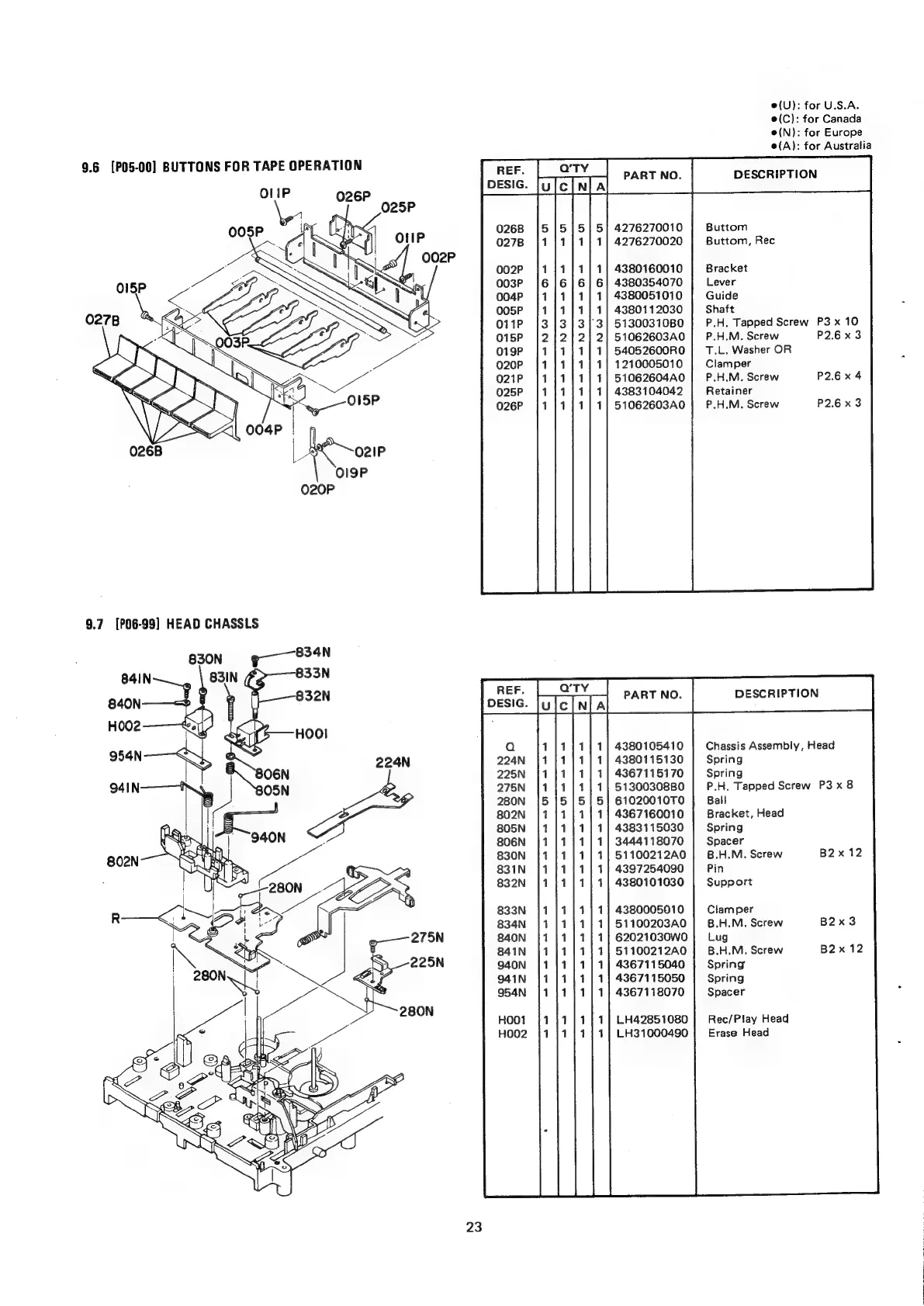

Marantz SD1000 - Exploded Views and Parts List; Tape Operation Buttons Parts List; Head Chassis Components List

e(U): for U.S.A.
e(C): for Canada
@(N): for Europe
e(A): for Australia
9.6
[P05-00]
BUTTONS
FOR
TAPE
OPERATION
7
lute
[Nn]
a}
4276270010 Buttom
4276270020 Buttom, Rec
4380160010 Bracket
4380354070 Lever
4380051010 Guide
4380112030 Shaft
51300310B0 P.H. Tapped Screw P3 x 10
51062603A0 | P.H.M. Screw P2.6x3
54052600RO | T.L. Washer OR
1210005010 Clamper
51062604A0 | P.H.M. Screw P2.6 x 4
4383104042 Retainer
51062603A0 P.H.M. Screw P2.6x3
2s] 44N02-20- pees aenwsaona
Bese 44NWws40- Beane anws-ono
9.7 [P06-99] HEAD CHASSLS
4380105410 Chassis Assembly, Head
4380115130 Spring
4367115170 Spring
51300308B0 P.H. Tapped Screw P3x 8
61020010T0 Ball
4367160010 Bracket, Head
4383115030 Spring
3444118070 Spacer
51100212A0 | B.H.M. Screw
4397254090 Pin
4380101030 Support
4380005010 Clamper
51100203A0 B.H.M. Screw
62021030W0 ;} Lug
51100212A0 B.H.M. Screw
4367115040 Spring
4367115050 Spring
4367118070 Spacer
LH42851080 | Rec/Play Head
LH31000490 Erase Head
