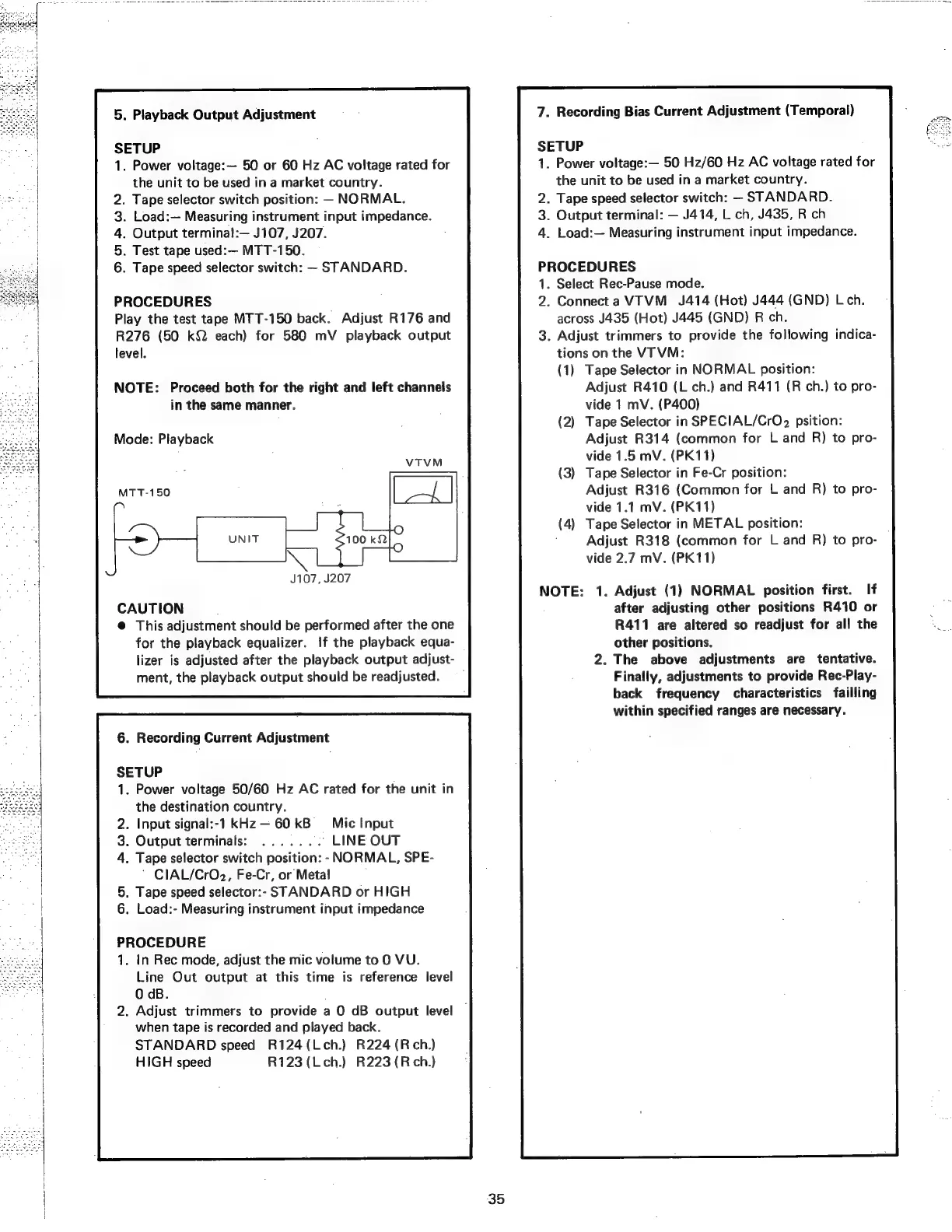

5.
Playback
Output
Adjustment
SETUP
1.
Power
voltage:—
50
or
60
Hz
AC
voltage
rated
for
the
unit
to
be
used
in
a
market
country.
.
Tape
selector
switch
position:
-
NORMAL.
.
Load:—
Measuring
instrument
input
impedance.
.
Output
terminal:—
J107,
J207.
.
Test
tape
used:—
MTT-150.
.
Tape
speed
selector
switch:
-
STANDARD.
PROCEDURES
Play
the
test
tape
MTT-150
back.
Adjust
R176
and
R276
(50
kQ
each)
for
580
mV
playback
output
level.
NOTE:
Proceed
both
for
the
right
and
left
channels
in
the
same
manner.
Mode:
Playback
MTT-150
J107,
J207
CAUTION
@
This
adjustment
should
be
performed
after
the
one
for
the
playback
equalizer.
If
the
playback
equa-
lizer
is
adjusted
after
the
playback
output
adjust-
ment,
the
playback
output
should
be
readjusted.
6.
Recording
Current
Adjustment
SETUP
1.
Power
voltage
50/60
Hz
AC
rated
for
the
unit
in
the
destination
country.
.
Input
signal:-1
kHz
60
kB
=
Mic
Input
.
Output
terminals:
LINE
OUT
.
Tape
selector
switch
position:
-
NORMAL,
SPE-
CIAL/CrO2,
Fe-Cr,
or
Metal
.
Tape
speed
selector:-
STANDARD
or
HIGH
.
Load:-
Measuring
instrument
input
impedance
PROCEDURE
1.
In
Rec
mode,
adjust
the
mic
volume
to
0
VU.
Line
Out
output
at
this
time
is
reference
level
O
cB.
.
Adjust
trimmers
to
provide
a
O
dB
output
level
when
tape
is
recorded
and
played
back.
STANDARD
speed
R124
(Lch.)
R224
(R
ch.)
HIGH
speed
R123
(Lch.)
R223
(R
ch.)
35
7.
Recording
Bias
Current
Adjustment
(Temporal)
SETUP
1.
Power
voltage:—
50
Hz/60
Hz
AC
voitage
rated
for
the
unit
to
be
used
in
a
market
country.
2.
Tape
speed
selector
switch:
STANDARD.
3.
Output
terminal:
J414,
L
ch,
J435,
R
ch
4.
Load:—
Measuring
instrument
input
impedance.
PROCEDURES
1.
Select
Rec-Pause
mode.
2.
Connecta
VTVM
J414
(Hot)
J444
(GND)
Lch.
across
J435
(Hot)
J445
(GND)
R
ch.
3.
Adjust
trimmers
to
provide
the
following
indica-
tions
on
the
VT
VM:
(1)
Tape
Selector
in
NORMAL
position:
Adjust
R410
(L
ch.)
and
R411
(R
ch.)
to
pro-
vide
1
mV.
(P400)
(2)
Tape
Selector
in
SPECIAL/CrO2
psition:
Adjust
R314
(common
for
L
and
R)
to
pro-
vide
1.5
mV.
(PK11)
(3)
Tape
Selector
in
Fe-Cr
position:
Adjust
R316
(Common
for
L
and
R)
to
pro-
vide
1.1
mV.
(PK11)
(4)
Tape
Selector
in
METAL
position:
;
Adjust
R318
(common
for
L
and
R)
to
pro-
vide
2.7
mV.
(PK11)
NOTE:
1.
Adjust
(1)
NORMAL
position
first.
If
after
adjusting
other
positions
R410
or
R411
are
altered
so
readjust
for
all
the
other
positions.
.
The
above
adjustments
are
tentative.
Finally,
adjustments
to
provide
Rec-Play-
back
frequency
characteristics
failling
within
specified
ranges
are
