Marantz SR4021 User Guide

11
ENGLISH

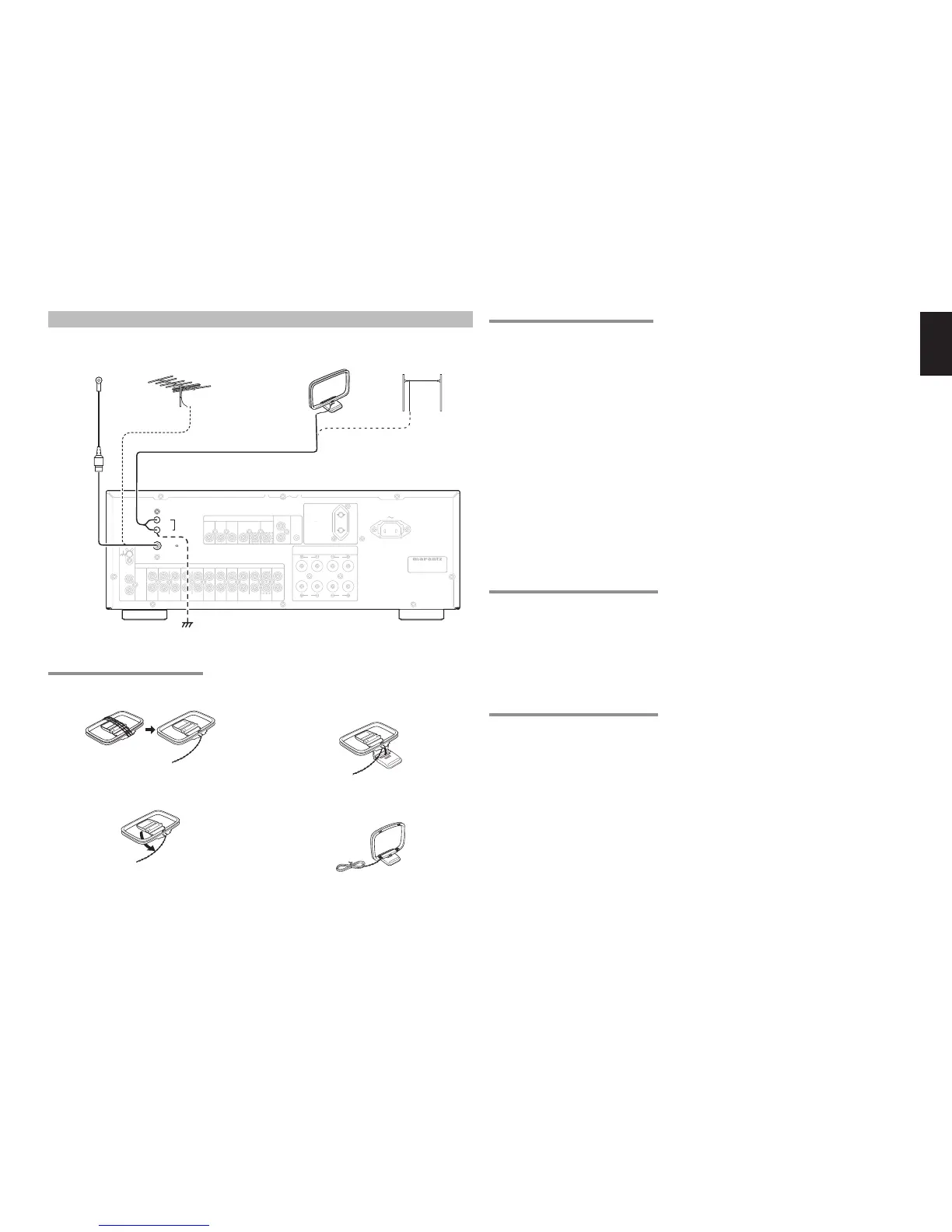

CONNECTING THE ANTENNA TERMINALS
SYSTEM 1 : 4 - 16 OHMS
SYSTEM 2 : 4 - 16 OHMS
SYSTEM 1+2 : 8 - 16 OHMS
230V 50/60Hz
IN
SYSTEM 2
150W 1A MAX.
AC OUTLET
SWITCHED
IN
PHONO
ININ OUTIN OUT
DSSAUX
VIDEO
SYSTEM 1
CONTROL
REMOTE
GND
VCR
IN
OUT
L
IN
OUT
INOUT OUT ININ
IN
OUTIN
(CD-R) (TAPE)
AUXCD DSS PREDVDRECORDER 2 MAINVCRRECORDER 1
IN
R
DVD
AUDIO
R
MONITOR
FLASHER
AC IN
L
R L
MODEL NO. SR4021
AM
FM
(
75
)
GND
ANTENNA
FM
Antenna
FM External
Antenna
AM Loop
Antenna
AM External
Antenna
ASSEMBLING THE AM LOOP ANTENNA
1.
Take out the connection line.
2.
Bend the base part in the reverse direction.
CONNECTING THE SUPPLIED ANTENNAS
Connecting the supplied FM antenna
The supplied FM antenna is for indoor use only.
During use, extend the antenna and move it in various
directions until the clearest signal is received.
Fix it with push pins or similar implements in the
position that will cause the least amount of distortion.
If you experience poor reception quality, an outdoor
antenna may improve the quality.
Connecting the supplied AM loop antenna
The supplied AM loop antenna is for indoor use
only.
Set it in the direction and position it to where you
receive the clearest sound. Put it as far away as
possible from the unit, televisions, speaker cables,
and power cords.
If you experience poor reception quality, an outdoor
antenna may improve the quality.
1.
Loosen the screws and attach the wire terminals.
2.
Tighten the screws.
CONNECTING AN FM OUTDOOR ANTENNA
Notes:
• Keep the antenna away from noise sources (neon
signs, busy roads, etc.).
• Do not put the antenna close to power lines. Keep it
well away from power lines, transformers, etc.
• To avoid the risk of lightning and electrical shock,
grounding is necessary.
CONNECTING AN AM OUTDOOR ANTENNA
An outdoor an tenna will be more effective if it is
stretched horizontally above a window or outside.
Notes:
• Do not remove the AM loop antenna.
• To avoid the risk of lightning and electrical shock,
grounding is necessary.
3.
Insert the hook at the bottom of the loop part
into the slot at the base part.
4.
Place the antenna on stable surface.
