Marantz SR5002 Service Manual

1
MULTI
SPEAKER
DIGITAL RLVIDEO S-VIDEO
AUX 1 INPUT
AUDIO
SETUP
SIMPLE
MULTI
PURE
T-MODE
SURROUND
MEMORY DISPLAY
ATT MUTE
STANDBY
PHONES POWER ON/STANDBY
INPUT SELECTOR VOLUME
UP DOWN
AV SURROUND RECEIVER SR5002
DIRECT
AUTO HT-EQ EXIT MENU
MODE
BAND
CLEAR
ENTER
SETUP MIC
6-5/16 ins.
(160 mm)
9/16 ins.
(14 mm)
5-3/4 ins.
(146 mm)
17-5/16 ins. (440 mm)
13/16 ins.
(20 mm)
29/32 ins.
(23 mm)
13-7/16 ins.
(341 mm)
15-1/8 ins.
(384 mm)
SR4002-5002UDFU01E22.indd53 07.7.92:47:45PM
SR4002-5002UDFU01E22.indd53 07.7.92:47:45PM
FM TUNER SECTION
Frequency Range ..........................87.5 - 108.0 MHz [ /N /U ]
Usable Sensitivity .................................. IHF 1.8 µV/16.4 dBf
Signal to Noise Ratio ..........................Mono/Stereo 75/70 dB
Distortion ...........................................Mono/Stereo 0.2/0.3 %
Stereo Separation ............................................... 1 kHz 45 dB
Alternate Channel Selectivity ...................... ± 300 kHz 60 dB
Image Rejection ...............................................98 MHz 70 dB
Tuner Output Level ..................1 kHz, ± 75 kHz Dev 800 mV
AM TUNER SECTION
Frequency Range ..................................531 - 1602 kHz [ /N ]
..................................520 - 1710 kHz [ /U ]
Signal to Noise Ratio .................................................... 50 dB
Usable Sensitivity .......................................... Loop 400 µV/m
Distortion ....................................... 400 Hz, 30 % Mod. 0.5 %
Selectivity ...................................................... ± 20 kHz 70 dB
AUDIO SECTION
Power Output (20 Hz - 20 kHz/THD=0.08%)
Front L&R .................................................. 8 ohms 90 W / Ch
Center ........................................................ 8 ohms 90 W / Ch
Surround L&R ............................................ 8 ohms 90 W / Ch
Surround Back L&R ................................... 8 ohms 90 W / Ch
Front L&R ................................................ 6 ohms 110 W / Ch
Center ...................................................... 6 ohms 110 W / Ch
Surround L&R .......................................... 6 ohms 110 W / Ch
Surround Back L&R ................................. 6 ohms 110 W / Ch
Input Sensitivity/Impedance ......................180 mV/ 47 kohms
Signal to Noise Ratio
(Analog Input / Pure Direct) ................................. 105 dB
Frequency Response
(Analog Input / Pure Direct) ........ 8 Hz - 100 kHz (± 3 dB)
(Digital Input / 96 kHz PCM) ......... 8 Hz - 45 kHz (± 3 dB)
VIDEO SECTION
Television Format...................................................NTSC/PAL
Input Level/Impedance ..................................1 Vp-p/75 ohms
Output Level/Impedance ................................1 Vp-p/75 ohms
Video Frequency Response ..............5 Hz to 8 MHz (- 1 dB)
Video Frequency (Component) ........5 Hz to 80 MHz (- 1 dB)
S/N ................................................................................ 60 dB
GENERAL
Power Requirement .........................AC 230 V 50/60 Hz [ /N ]
..............................AC 120 V 60 Hz [ /U ]
Power Consumption .............................................600 W[ /N ]
............................................500 W [ /U ]
Weight .......................................................12.3 kg (27.1 lbs)
ACCESSORIES
Remote Control Unit RC5001SR ..........................................1
AAA-size batteries ............................................................... 2
FM Antenna ..........................................................................1
AM Loop Antenna .................................................................1
Front AUX Jack Cover ..........................................................1
AC Power Cord .....................................................................1
Microphone MC-10 ...............................................................1
1. TECHNICAL SPECIFICATIONS

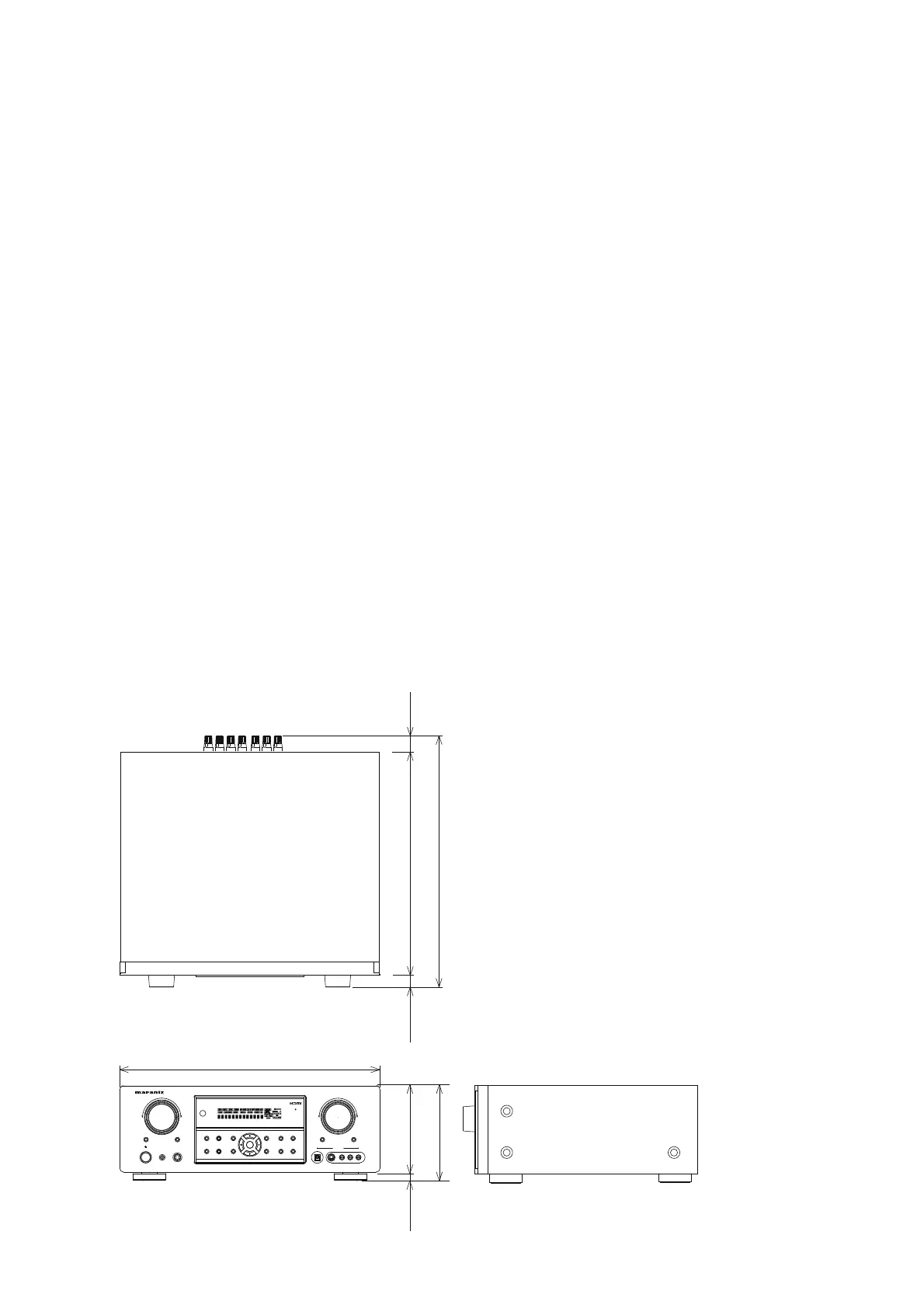

DIMENSIONS
