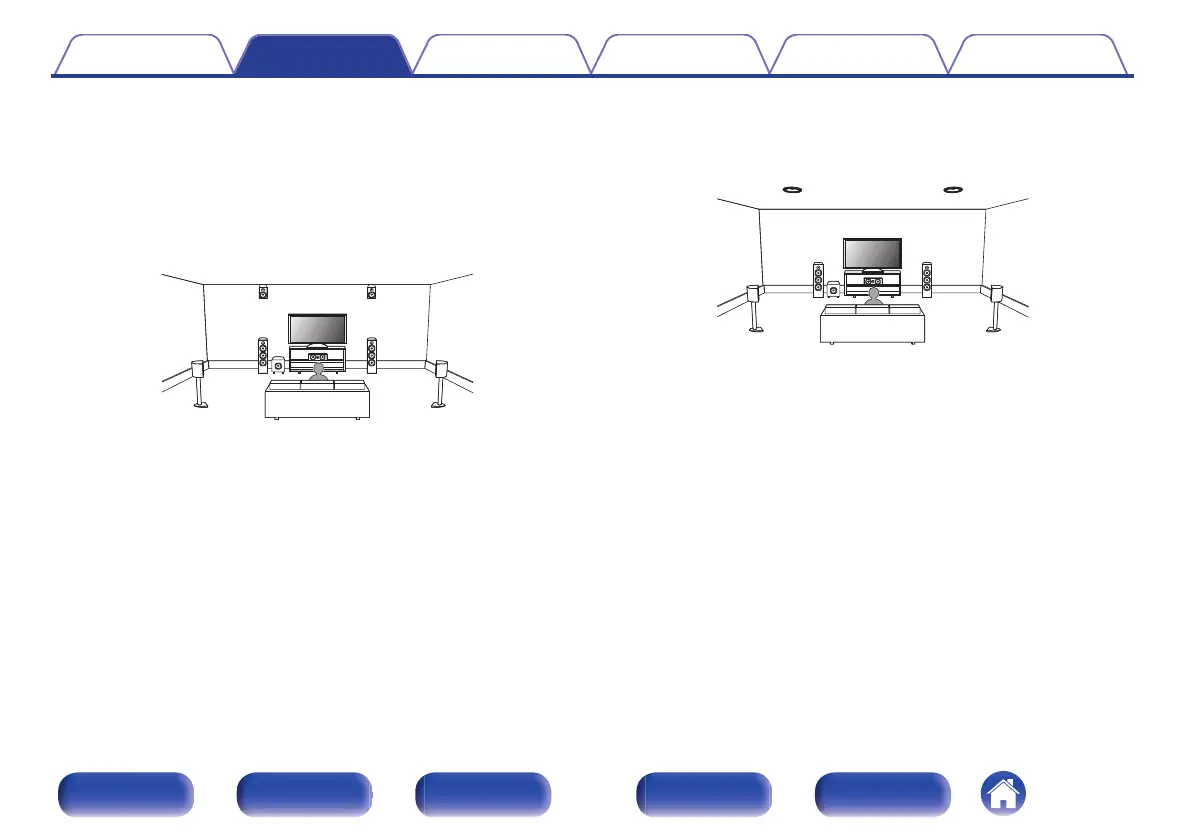

Layout including height speakers and ceiling
speakers
n
Height speaker layout example
Combination of 5.1-channel layout and front height speakers.
.
FHL FHR
C
FL FR
SW
SL SR
n
Ceiling speaker layout example
Combination of 5.1-channel layout and top middle speakers.
.
TMR
TML
C
FL FR
SW
SL SR
