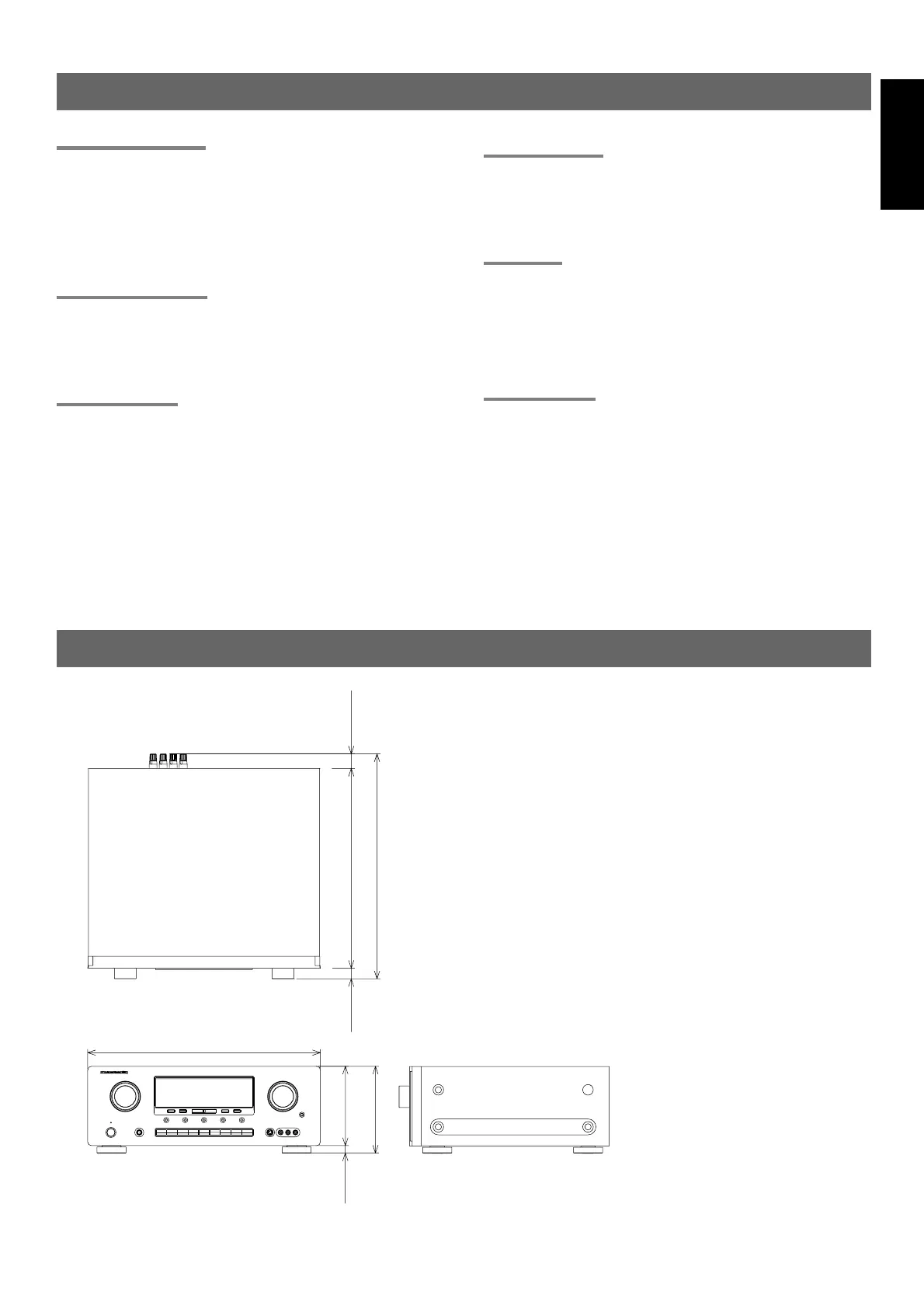

TECHNICAL SPECIFICATIONS
1-1/16 inch (27 mm)
14-7/8 inch (378 mm)
16-3/4 inch (425 mm)
16/13 inch (20 mm)
6-7/16 inch (164 mm)
9/16 inch (14 mm)
5-7/8 inch (150 mm)
17-5/16 inch (440 mm)
FM TUNER SECTION
Frequency Range ................................... 87.5 - 108.0 MHz
Usable Sensitivity .............................. IHF 1.8 µV/16.4 dBf
Signal to Noise Ratio ..................... Mono/Stereo 75/70 dB
Distortion ...................................... Mono/Stereo 0.2/0.3 %
Stereo Separation ......................................... 1 kHz 45 dB
Alternate Channel Selectivity ................. ± 400 kHz 60 dB
Image Rejection ......................................... 98 MHz 70 dB
Tuner Output Level .............. 1 kHz, ± 75 kHz Dev 500 mV
AM TUNER SECTION
Frequency Range ............................... AM: 520 - 1710 kHz
Signal to Noise Ratio ............................................... 50 dB
Usable Sensitivity ..................................... Loop 400 µV/m
Distortion ................................... 400 Hz, 30 % Mod. 0.5 %
Selectivity ................................................. ± 20 kHz 60 dB
AUDIO SECTION
Continuous Power Output (8 ohms / 20 Hz - 20 kHz)
Front ..................................................................... 90 W
Center ................................................................... 90 W
Surround ............................................................... 90 W
THD Front (20 Hz - 20 kHz) ....................... 8 ohms 0.05 %
Input Sensitivity/Impedance
Linear ............................................. 340 mV/ 47 Kohms
Signal to Noise Ratio
Linear ................................................................. 105 dB
VIDEO SECTION
Television Format .................................................... NTSC
Input Level/Impedance ........................... 1 Vp-p/ 75 ohms
Output Level/Impedance ........................ 1 Vp-p/ 75 ohms
Video Frequency Response ......... 5 Hz to 8 MHz (– 1 dB)
S/N ........................................................................... 60 dB
GENERAL
Power Requirement ................................ AC 120 V 60 Hz
Power Consumption ................................................. 3.6 A
Dimension (MAX)
Width.......................................... 17-5/16 inch (440 mm)
Height .......................................... 6-7/16 inch (164 mm)
Depth ........................................... 16-3/4 inch (425 mm)
Weight.............................................. 28.38 lbs (12.9 kg)
ACCESSORIES
Remote Control Unit RC5300SR ..................................... 1
AAA-size batteries ........................................................... 2
FM Feeder Antenna ........................................................ 1
FM Antenna Converter .................................................... 1
AM Loop Antenna............................................................ 1
Warranty Card (for USA) .................................................. 1
Warranty Card (for CANADA) .......................................... 1
User Guide ...................................................................... 1
pecifications subject to change without prior notice.
DIMENSION
