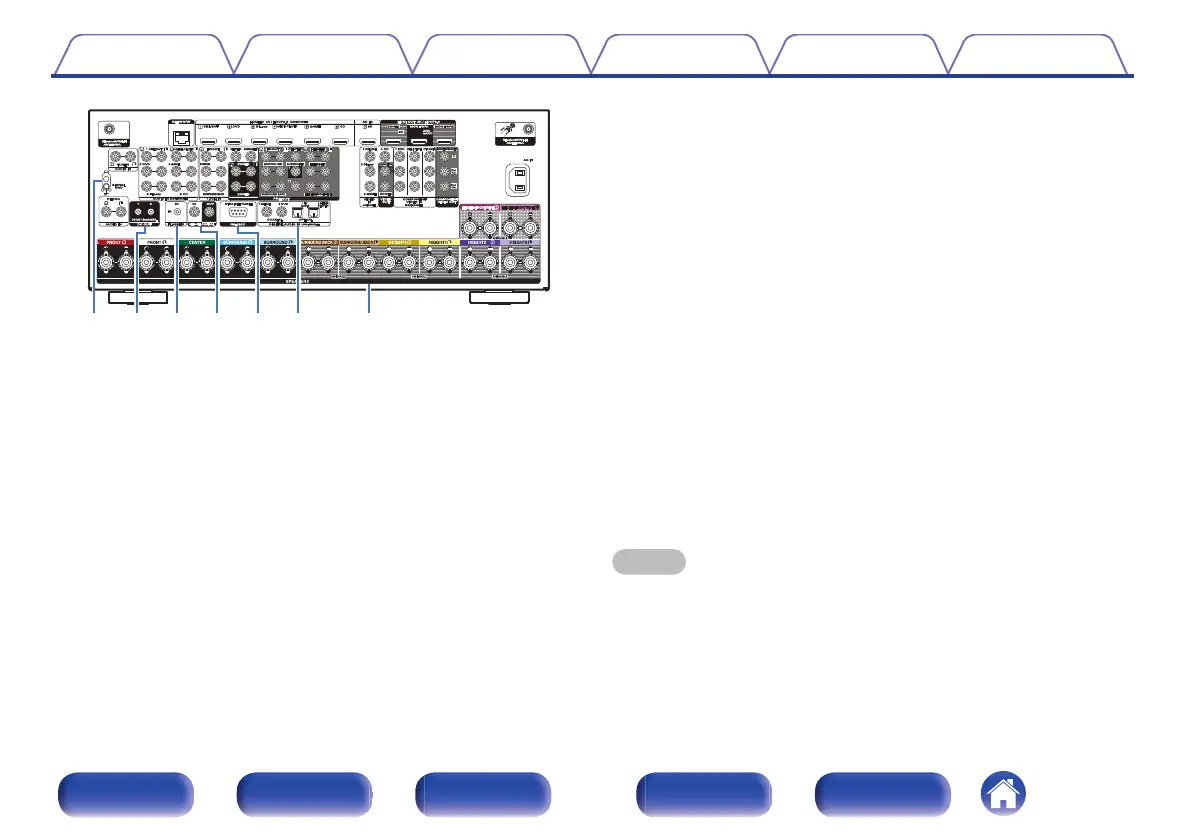

J
SIGNAL GND terminal
Used to connect a ground wire for the turntable. (v p. 94)
K
DC OUT jacks
Used to connect devices equipped with the trigger function.
(v p. 100)
L
FLASHER IN jack
Used when using a control BOX or other such control devices to control
this unit.
M
REMOTE CONTROL jacks
Used to connect infrared receivers/transmitters in order to operate this
unit and external devices from a different room. (v p. 99)
N
RS-232C connector
Used to connect home automation controller devices fitted with
RS-232C connectors. Consult the owner’s manual of the home
automation controller for more information about serial control of this
unit.
Perform the operation below beforehand.
A
Turn on the power of this unit.
B
Turn off the power of this unit from the external controller.
C
Check that the unit is in the standby mode.
O
Digital audio connectors (DIGITAL AUDIO)
Used to connect devices equipped with digital audio connectors.
0
“Connection 2 : TV equipped with an HDMI connector and
incompatible with the ARC (Audio Return Channel) / eARC
(Enhanced Audio Return Channel)” (v p. 87)
0
“Connection 3 : TV equipped without an HDMI
connector” (v p. 88)
0
“Connecting a set-top box (Satellite tuner/cable TV)” (v p. 90)
0
“Connecting a DVD player or Blu-ray Disc player” (v p. 91)
P
Speaker terminals (SPEAKERS)
Used to connect speakers. (v p. 45)
NOTE
0
Do not touch the inner pins of the connectors on the rear panel. Electrostatic
discharge may cause permanent damage to the unit.
