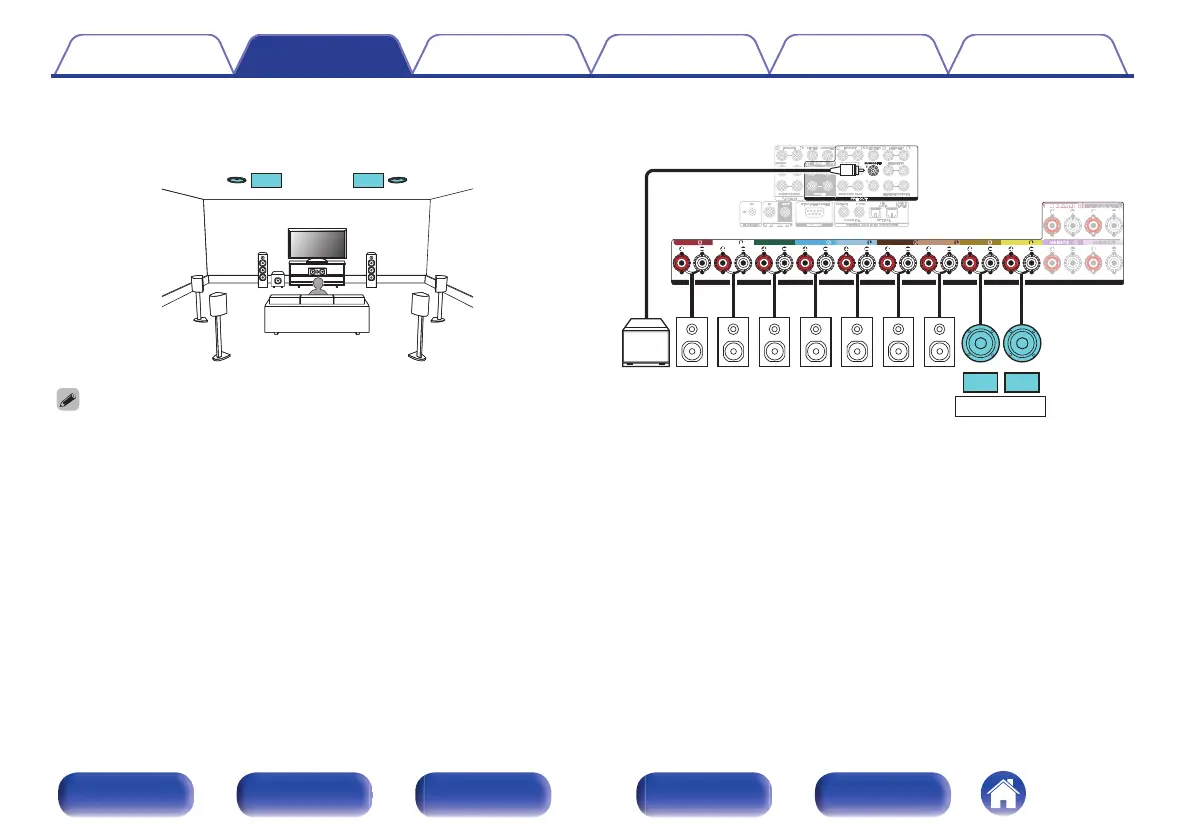

Example connection when using one set of ceiling speakers
.
C
FL FR
SBL
SBR
SW
SL SR
TML TMR
0
Set “Height” - “Height Sp” to “2ch” in the menu when connecting in this
configuration. (v p. 235)
.
ASSIGNABLE
FRONT FRONT
CENTER
SURROUND SURROUND
HEIGHT1 HEIGHT1
ASSIGNABLE
SURROUND BACK SURROUND BACK
ASSIGNABLE
SPEAKERS
ASSIGNABLE
HEIGHT 1
z
SW
SBR SBL
FR FL C SR
SL
TMR TML
z
The top front or top rear speakers can be connected instead of the top middle
speakers. In this case, set the ceiling speakers to be connected under “Height” -
“Layout” in the menu. (v p. 236)
