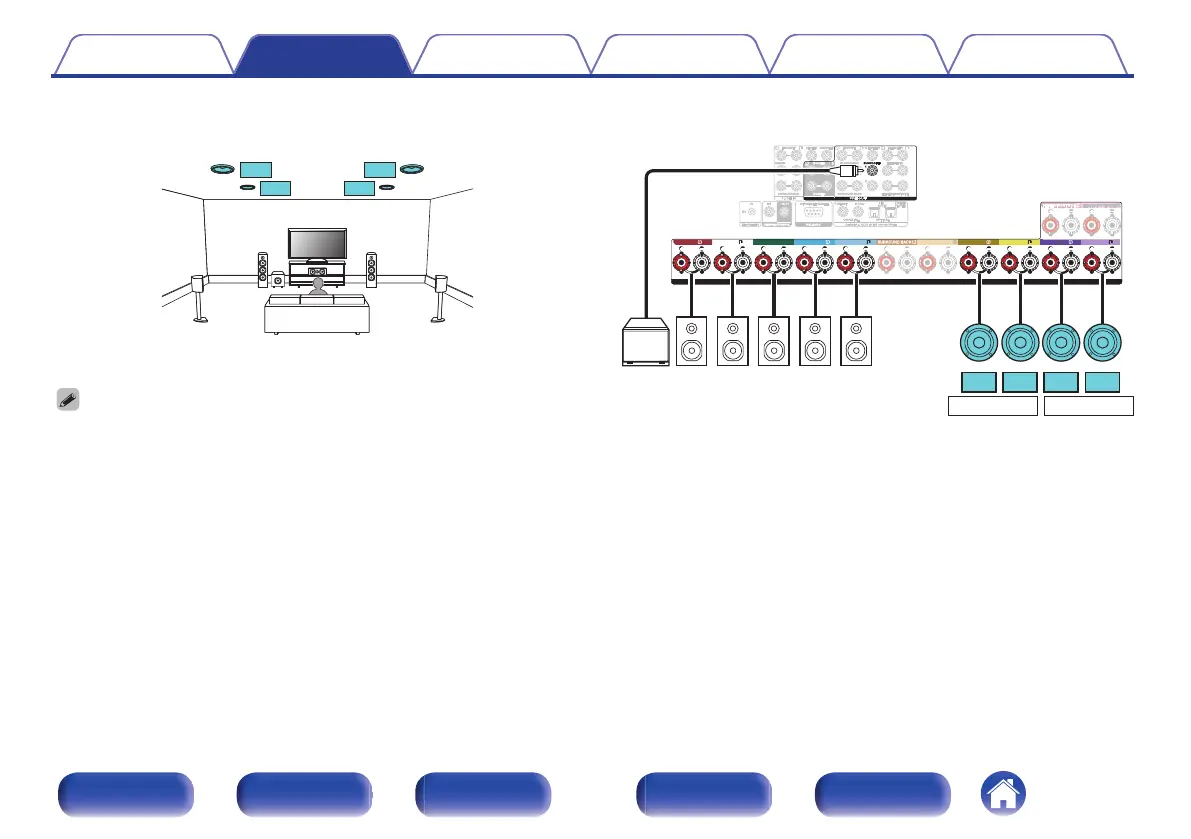

Example connection when using two sets of ceiling speakers
.
C
FL FR
SW
SL SR
TRL TRR
TFL TFR
0
Set “Floor” to “5ch” or set “5ch & SB” and “Height Sp” to “4ch” in the menu when
connecting in this configuration. (v p. 234, 235)
.
ASSIGNABLE ASSIGNABLE
FRONT FRONT
CENTER
SURROUND SURROUND
HEIGHT1 HEIGHT1 HEIGHT2 HEIGHT2
ASSIGNABLE
ASSIGNABLE
SURROUND BACK
SPEAKERS
TRR TRLTFR TFL
HEIGHT 1
z
HEIGHT 2
z
SW
FR FL C SR SL
z
You can change the combination of the HEIGHT1 and HEIGHT2 channels in the
settings. (v p. 74)
