Service Manual 1000660 T5 1000661 T10 1000665 PB5 1000666 PB10 Ecoboiler 231109.doc Page 11 of 22
•
Disconnect the machine from the electrical supply.
•
Allow to cool sufficiently.
•
The metal Front Fascia Top and Bottom panels are fixed to the surround with ball studs that
lock into spring clips mounted in the surround panel – refer to picture above.
•
To separate the ball studs from the spring clips insert a flat headed screwdriver at the locations
indicated on the picture and lever apart the front panels from the surround.
•
To remove the Front Fascia Top panel, after seperating the ball stud from the spring clip,
rotate the top edge of the panel forward and pull the panel in an upwards motion.
•
Place the panel to the side of the machine
•
To remove the Front Fascia Bottom, after seperating the ball stud from the spring clip, rotate
the bottom edge of panel forwards and pull in a downward motion. This panel is now free to be
placed out of the way.
•

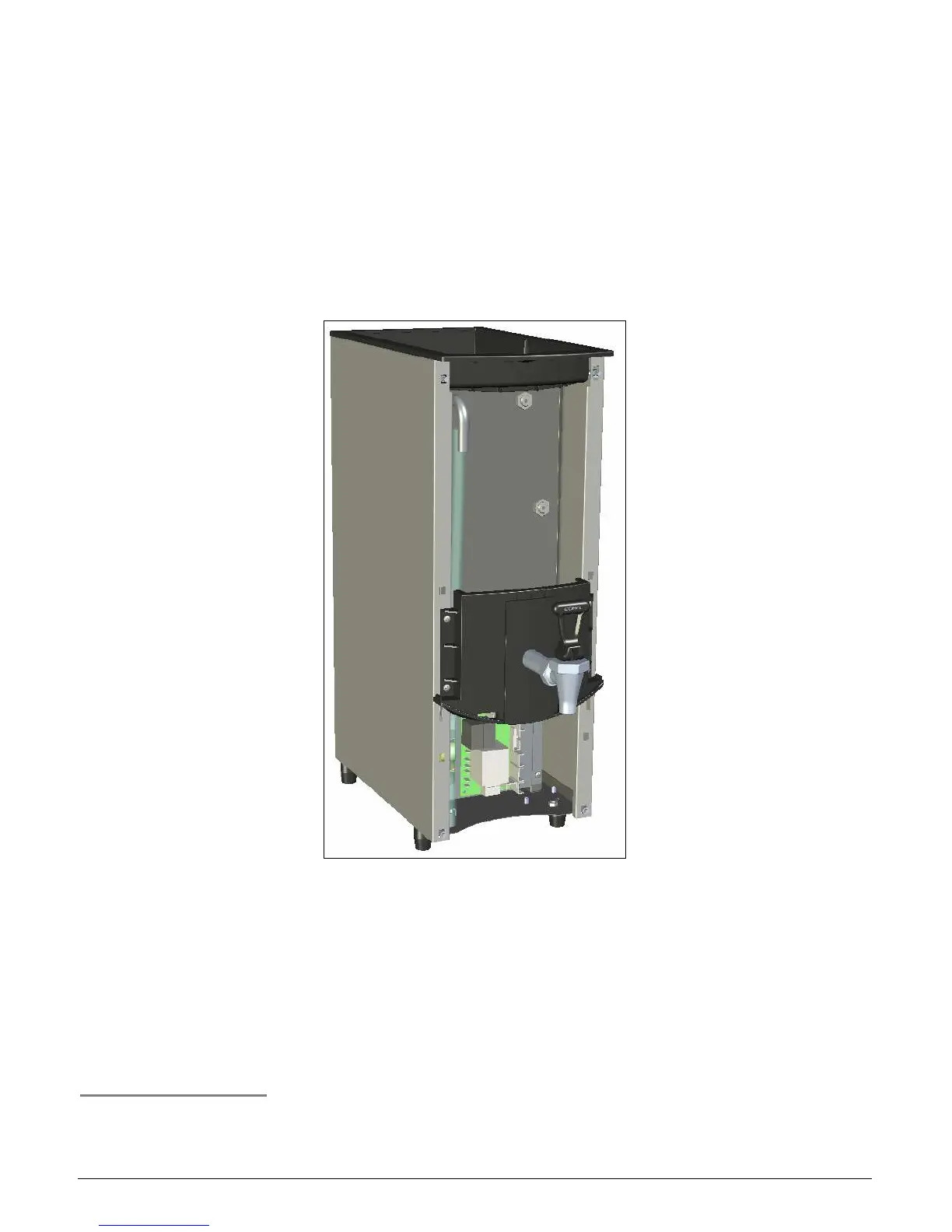

This allows access to most of the internal components and the machine does not need to be
drained for most maintenance or service operations.
•
If further access is required, the plastic Front Fascia Middle panel should be removed by
unscrewing the four cross recessed pan headed screws.
•
On Tap versions, the Tap assembly will need to be removed before the plastic Front Fascia
Middle can be removed.
•
The Tank can be drained by removing the plug from the end of the drain hose, and draining
into an external drain or a large enough container.
Inlet Solenoid Access:
•
To access the inlet solenoid, the PCB and PCB bracket need to be removed.
•
Unscrew the two crss-recessed pan headed screws holding the bracket in place.
