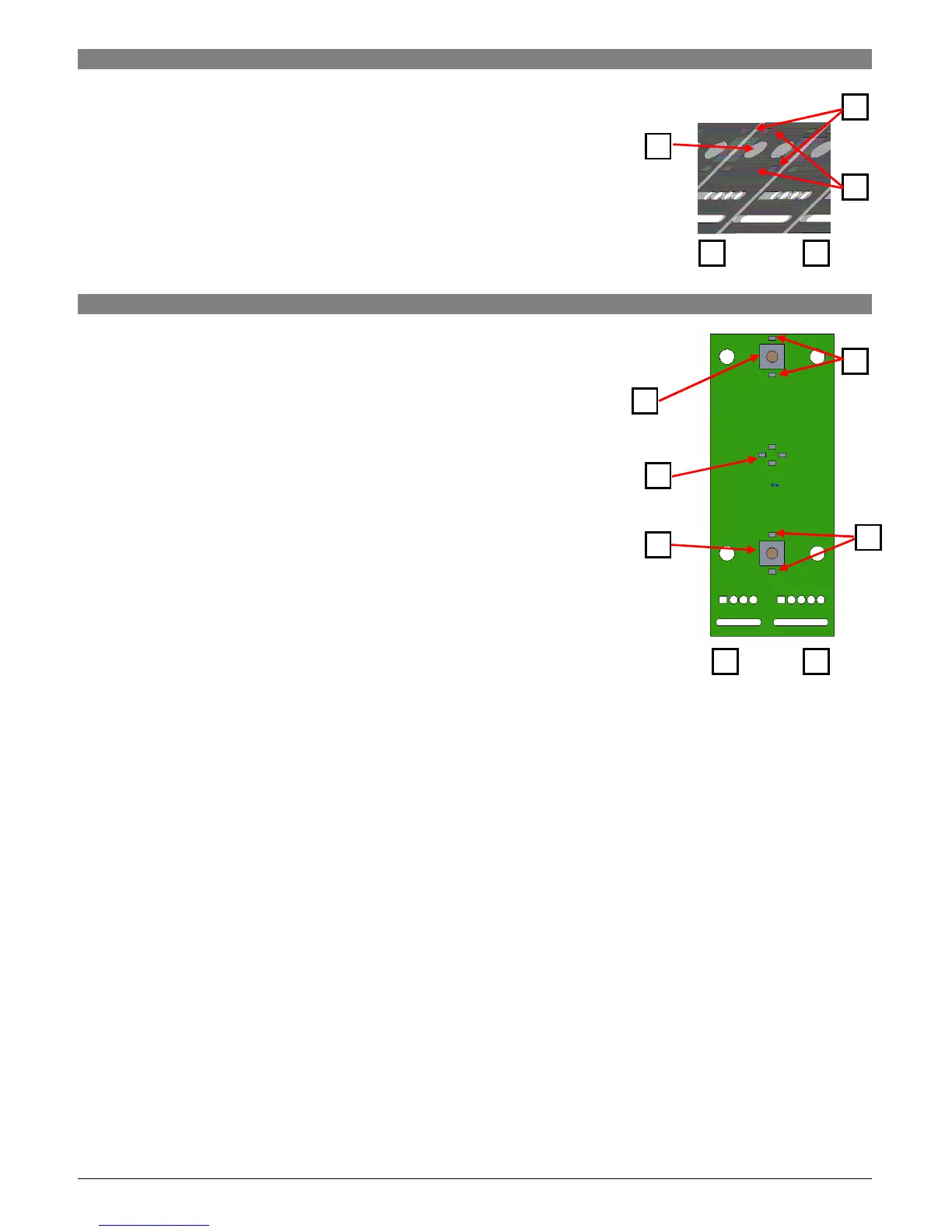

4.5.3. PCB Display Ecoboiler 5L (1600348)
1. Power On LED’s
• shows that machine is switched on
2. Status LED’s
• displays Error signals via a flashing RED LED
3. Power On/Off switch
4. 5 way connector – to PCB Ecoboiler LED connector
5. 4 way connector – to PCB Ecoboiler BUTTONS connector
4.5.4. PCB Display Ecoboiler 10L (1600349)
1. Power On LED’s
• shows that machine is switched on
2. Power On/Off switch
3. Status LED’s
• displays Error signals via a flashing RED LED
4. Eco Mode On LED’s
5. Eco Mode On/Of Switch
6. 5 way connector – to PCB Ecoboiler LED connector
7. 4 way connector – to PCB Ecoboiler BUTTONS connector
