4. Technical Data:
4.1. GENERAL DESCRIPTION:
ECO Boiler PB5, PB10, T5, T10.
PB5 PB10 T5 T10
Dimensions Height (mm)
Width (mm)
Depth – counter footprint (mm)
Depth – to front of Tap (mm)
Depth incl. Drip Tray (mm)
465
210
360
-
460
590
210
360
-
460
465
210
360
470
510
590
210
360
470
510
Performance Immediate Draw-Off (litres)
Max. Hourly Output (litres/hour)
5
33
10
38
5
33
10
38
Electrical Connection 2.8kW,230V, c/w 1.5m flex and moulded plug -
fused (BS1363).
Plumbing Fittings
Pressure
0.75” BSP
Food grade inlet hose supplied
5-50 psi (35-345 kPa)

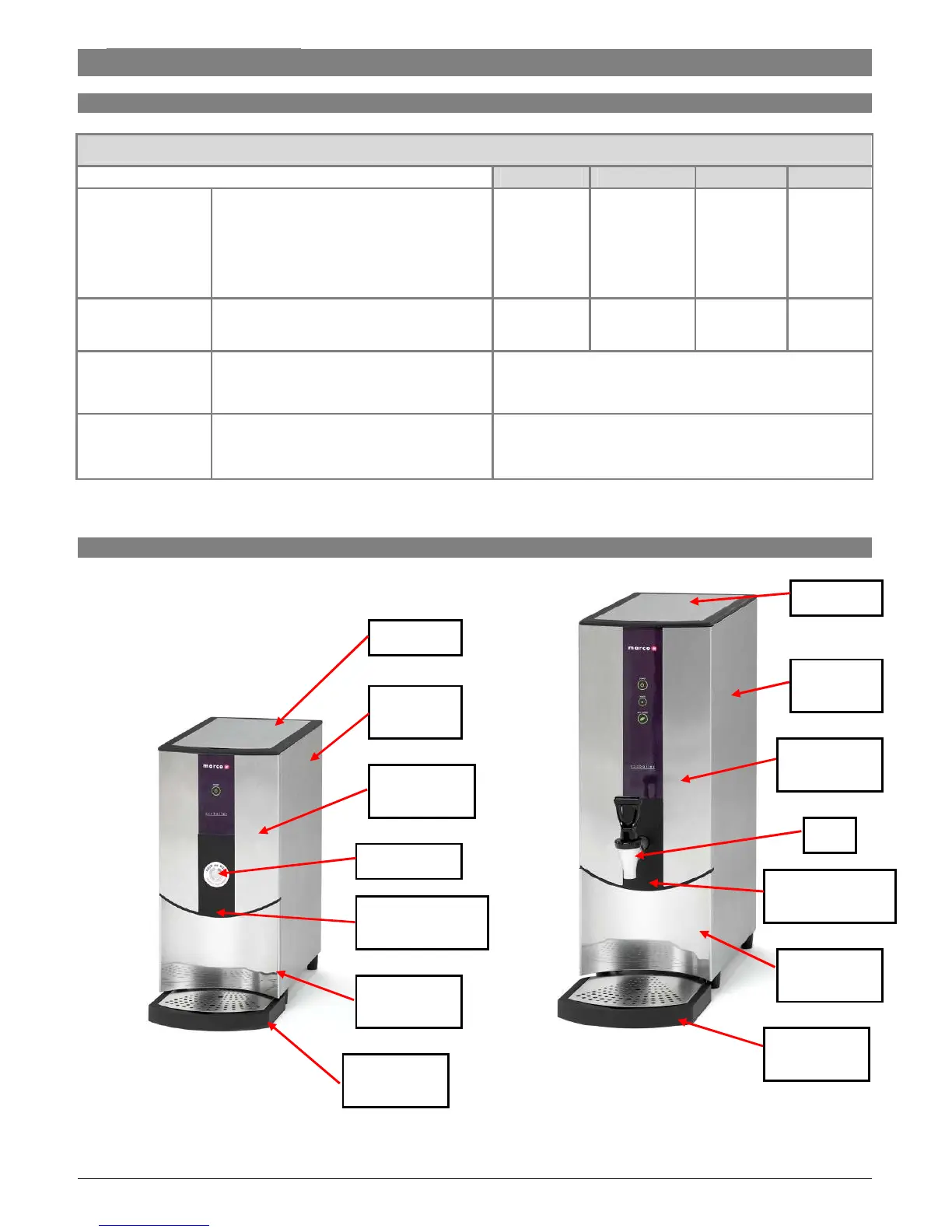

4.2. EXTERNAL ARRANGEMENT:
Outer Lid
Surround
Panel
Tap
Push Button
Front Panel
Top
Front Panel
Bottom
Surround
Panel
Front Panel
Top
Outer Lid
Front Panel
Bottom
Front Panel
Middle - Plastic
Drip Tray
Complete
Drip Tray
Complete
Front Panel
Middle - Plastic
