Marcy GS 99 - Assembly Instructions - Step 1; Step 1: Base Frame Assembly

5
ASSEMBLY INSTRUCTION
Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen Wrenches
NOTE: It is strongly recommended two or people assembling this machine to avoid
possible injury.
STEP 1 (See Diagram 1)
A.) Place the Right Base Frame (#1) on a flat surface. Make sure there is enough space around
to assemble the machine.
B.) Insert four Guide Rods (#9) into the holes on the Right Base Frame (#1). Secure each Guide
Rod to the Right Base Frame from the bottom with a M10 x 1” Allen Bolt (#81).
C.) Slide four Ø 2 ½” x 1” Rubber Bumpers (#75) onto the Guide Rods.

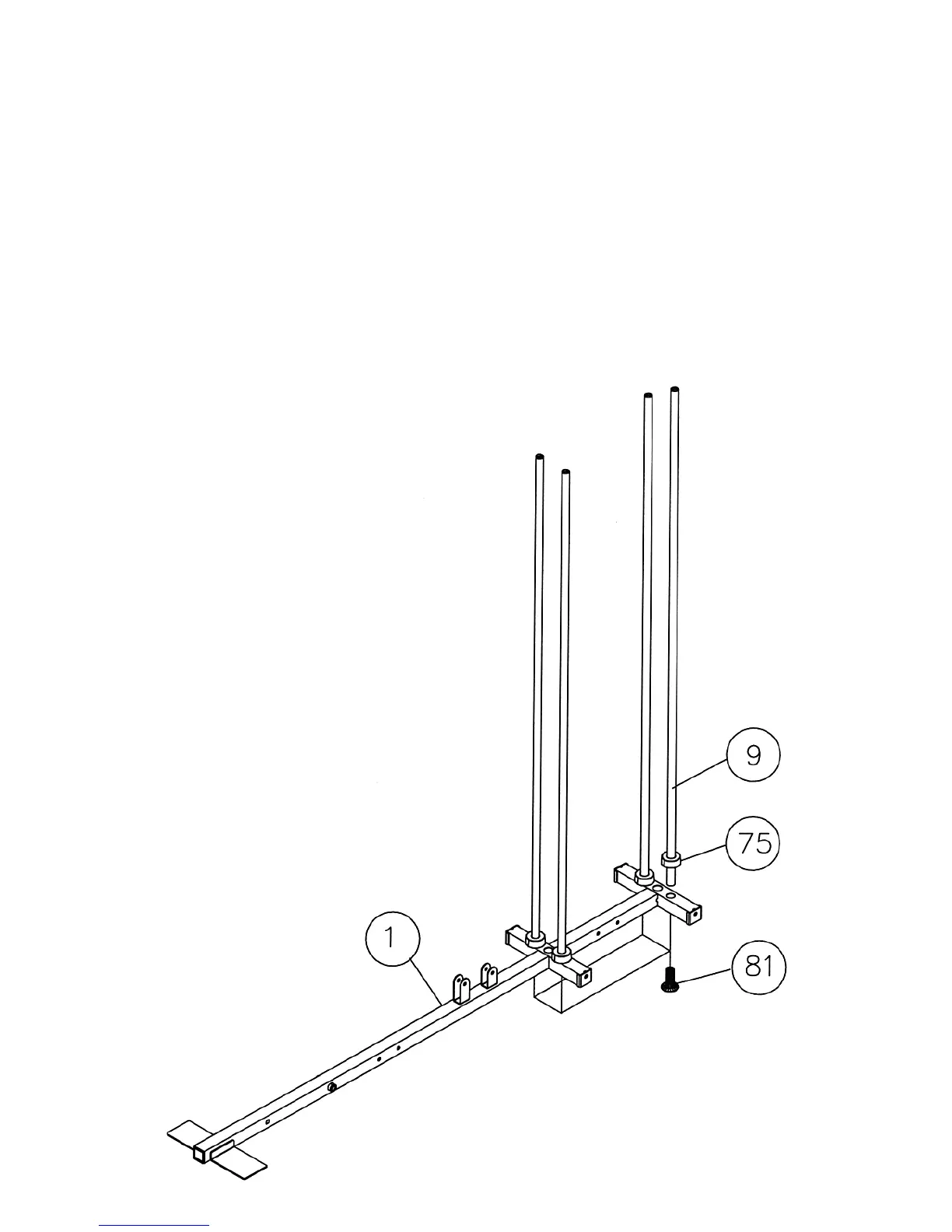

Diagram 1
