Marcy GS 99 - Assembly Instructions - Step 2; Step 2: Attaching Vertical Frames

6
STEP 2 (See Diagram 2)
A.) Attach the Rear Vertical Frame (#4) to the Right Base Frame (#1). Attach the Left Base
Frame (#2) to the Rear Vertical Frame. Align the holes and secure them with two M10 x 2
¾” Carriage Bolts (#84), ∅ ¾” Washers (#99), and M10 Aircraft Nuts (#96).
B.) Do not tighten the Nuts and Bolts yet.

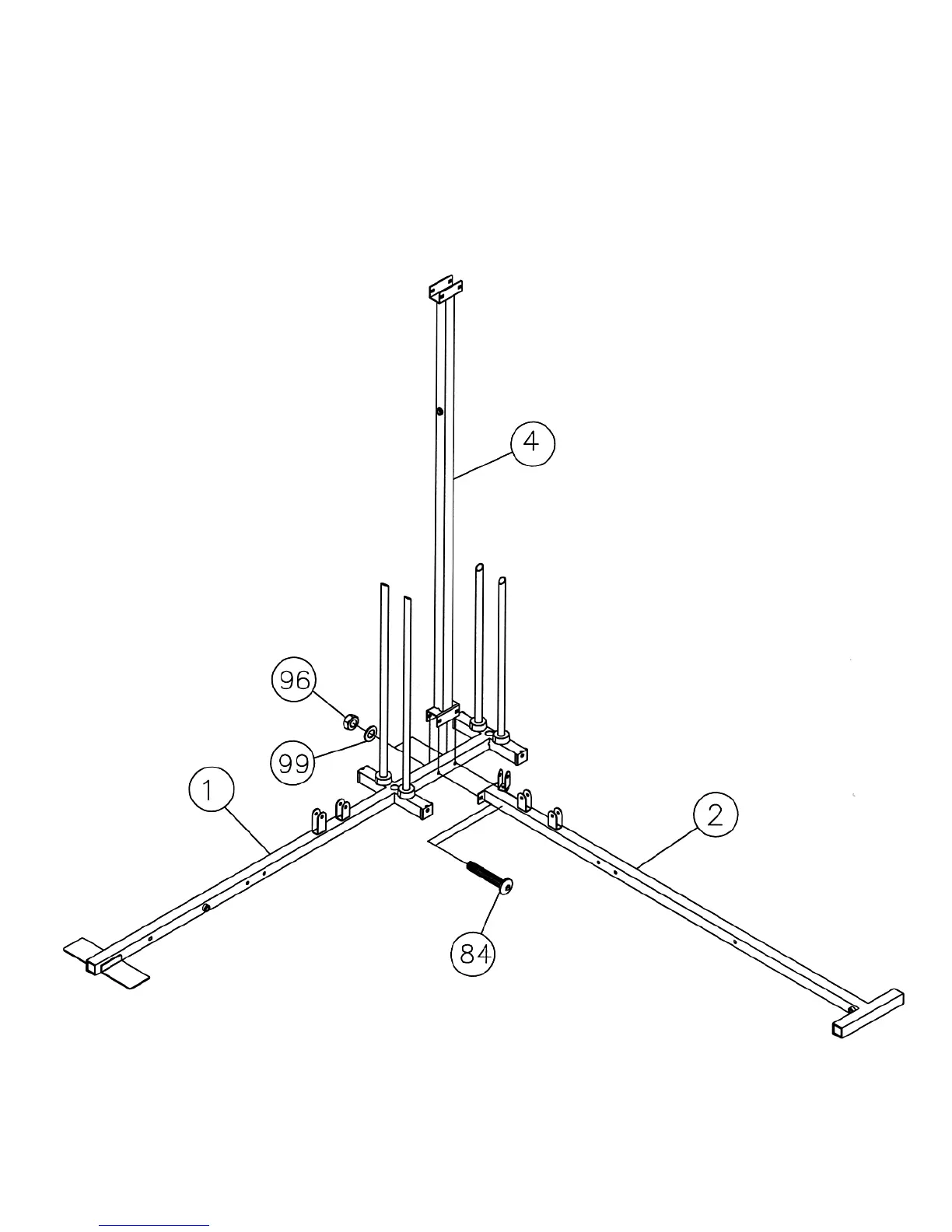

DIAGRAM 2
7
