ASSEMBLY INSTRUCTION

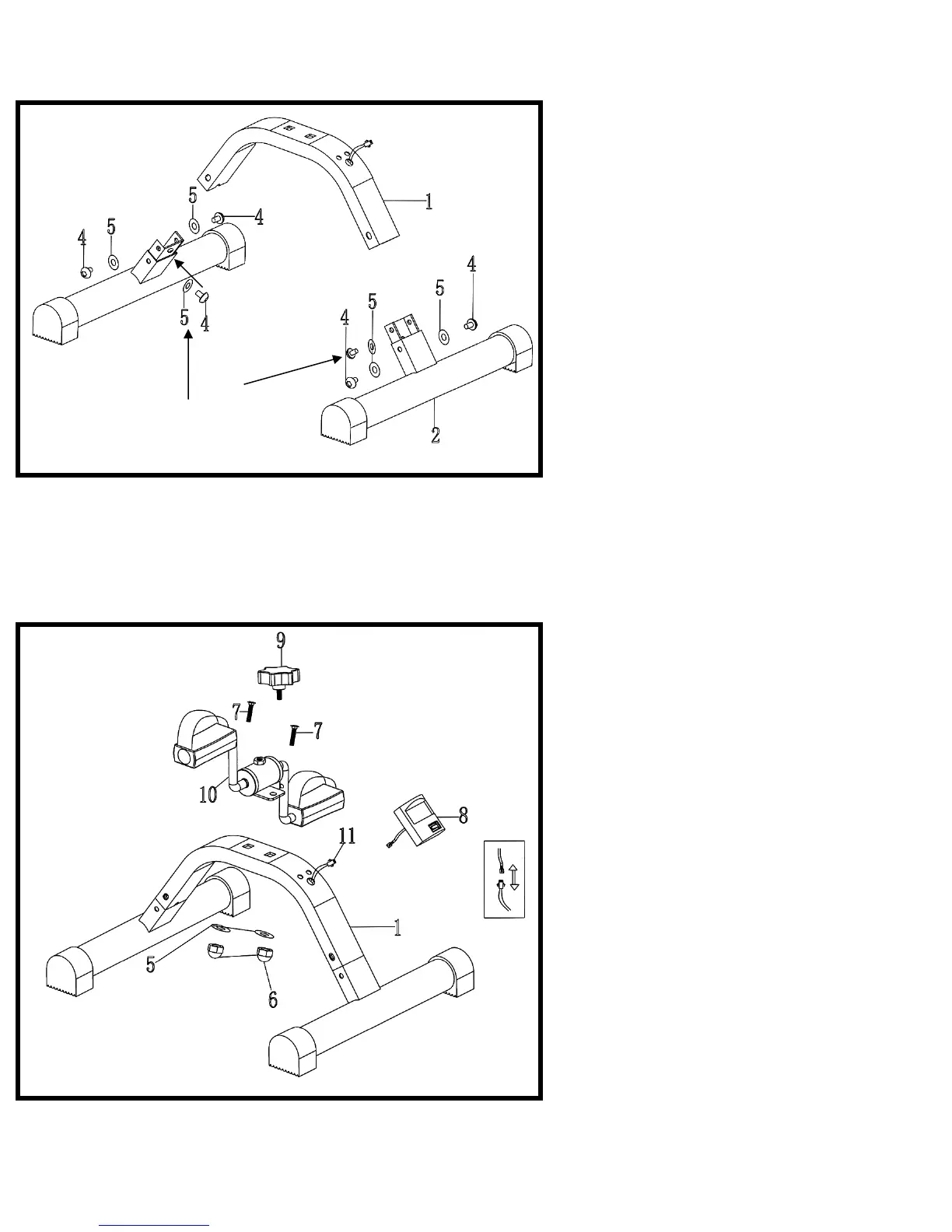

Step-1
A.) Attach the Main Frame
(#1) to the two Bases
(#2).
B.) Secure each end of the
Main Frame to each
Base with three M8 x
5/8” Allen Bolts (#4) and
three Ø 5/8” Washers
(#5). Install the bolts on
the inside panel first
(as indicated in the
drawing). Install the
bolts on the side
panels.
Step 2
A.) Place the Crank (#10)
onto the Main Frame
(#1). Secure it with two
M8 x 1 3/8” Carriage
Bolts (#7), two Ø 5/8”
Washers (#5), and two
M8 Nuts (#6).
B.) Thread a Lock Knob (#9)
into the top opening on
the Crank.
C.) Connect the computer
Sensor Wire (#11) to the
Computer (#8).
