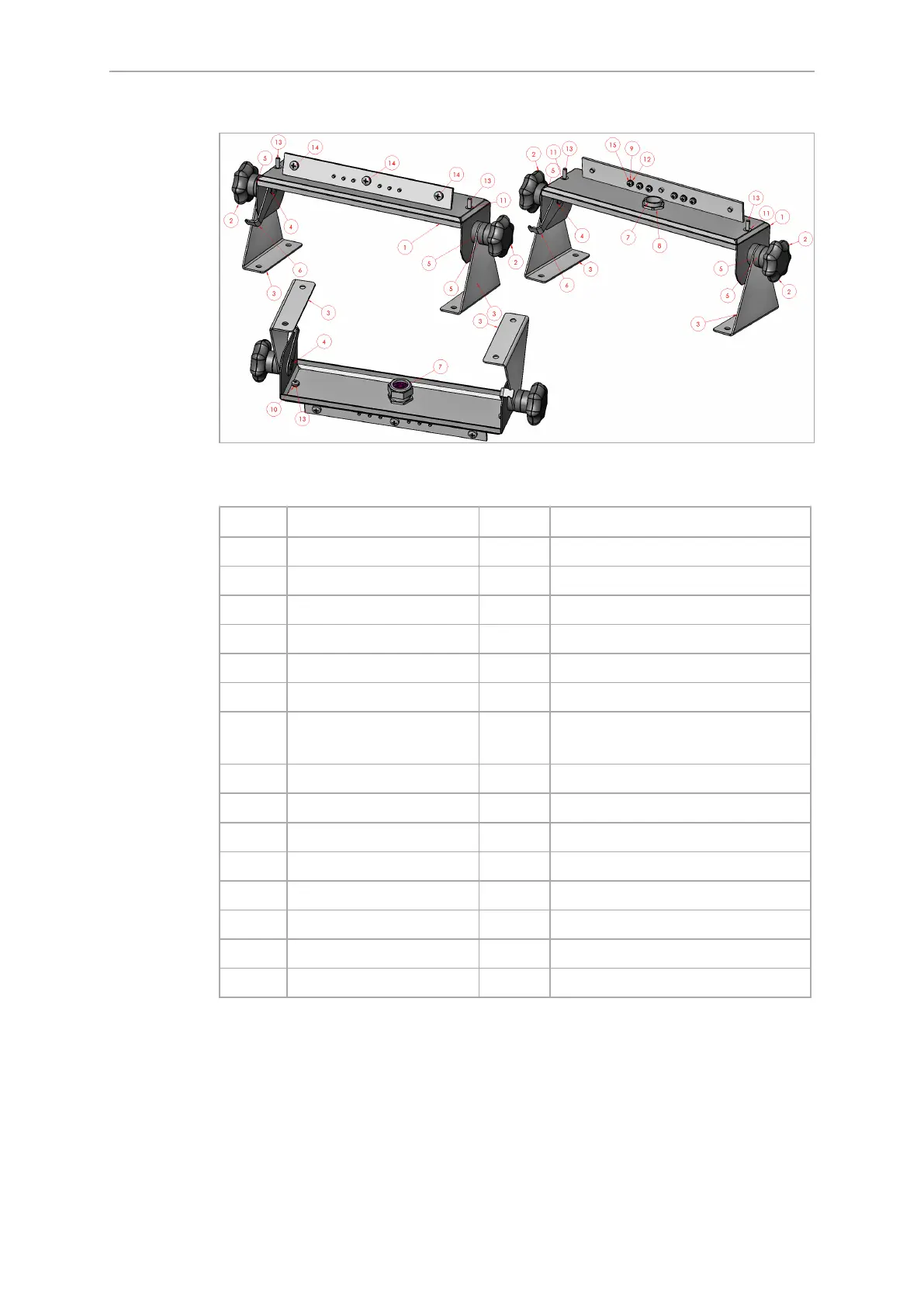

Figure 9 M3310 HMI Controller, lower enclosure, details
Item Item number Qty Description
1 001-0009-1138 1 Assembled bottom
2 001-0009-2279 2 Handle knob ø60
3 001-0009-2277 2 Universal fastening bracket
4 001-0009-2285 2 Bolt for brake shim ø30
5 001-0009-2280 4 Brake shim ø30
6 001-0021-2264 2 Rotation stop
7 721-3900-11311254060 1 Cable gland, brass.
M25 4 x 4.5 - 6.0 mm IP68
8 721-3902-1800025 1 M25 Cable gland nut
9 740-125a-04 6 Medium washer stainless steel A4-7
10 740-1250-05 2 Washer M5
11 742-1905-05 2 M5 washer
12 740-6798-04 6 Lock washer M4
13 740-7985-05016 2 Screw M5 x 16
14 740-7985-06010 3 Screw M6 x 10
15 740-7985-04010 6 ScrewM4 x 10
M3310 HMI Controller User Manual Parts Lists
18 160317ENG
