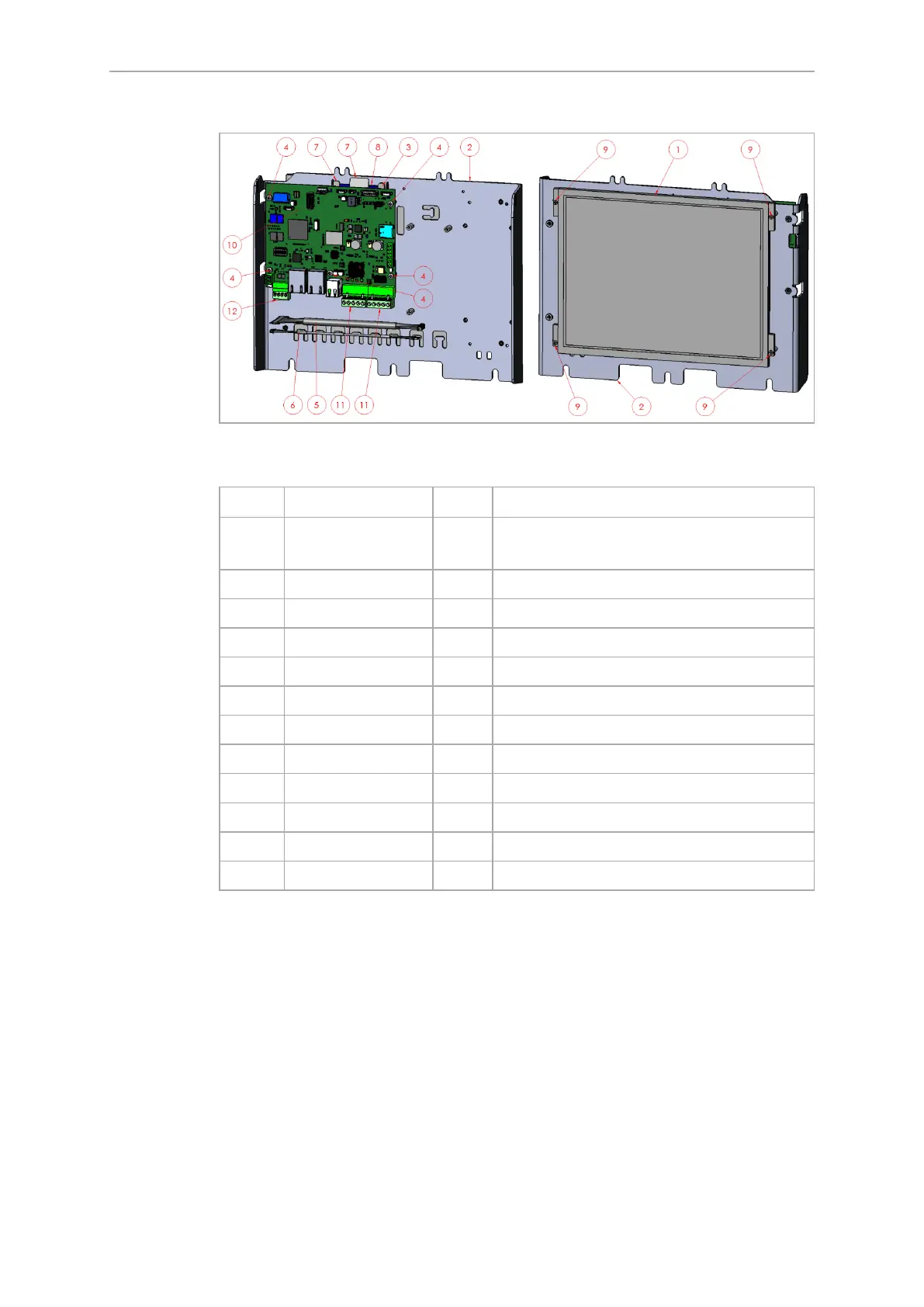

Figure 10 M3310 HMI Controller, electronics assembly
Item Item number Qty. Description
1 713-2608-1036022 1 Display AUO 10.4” G104XVN01.0
1024 x 768 LED
2 001-0028-A008 1 Mounting Bracket with fasteners
3 719-4403-0010 1 Battery 3.7V/1500 mAh (UP325385A4H)
4 740-7985-1005311 5 Screw M3 x 8
5 718-3703-1029113 1 AUO G104XVN0 LVDS cable, 200 mm
6 718-3703-1029114 1 AUO G104XVN0 LED cable, 200 mm
7 001-0028-2009 1 Battery compartment
8 721-3800-1022434 1 Heat-shrinkable sleeve green 104 mm
9 740-0965-1004019 4 Screw M2 5 x 16
10 500-0001-v39-C 1 V391-C assembled CPU board
11 7153002-1012247 2 Plug 5-pin, MSTB 2.5/5 - ST- 5.08
12 715-30021005 1 Plug 4-pin, 3.81 mm pitch, MC 1.5/4 - ST - 3.81
Parts Lists M3310 HMI Controller User Manual
160317ENG 19
