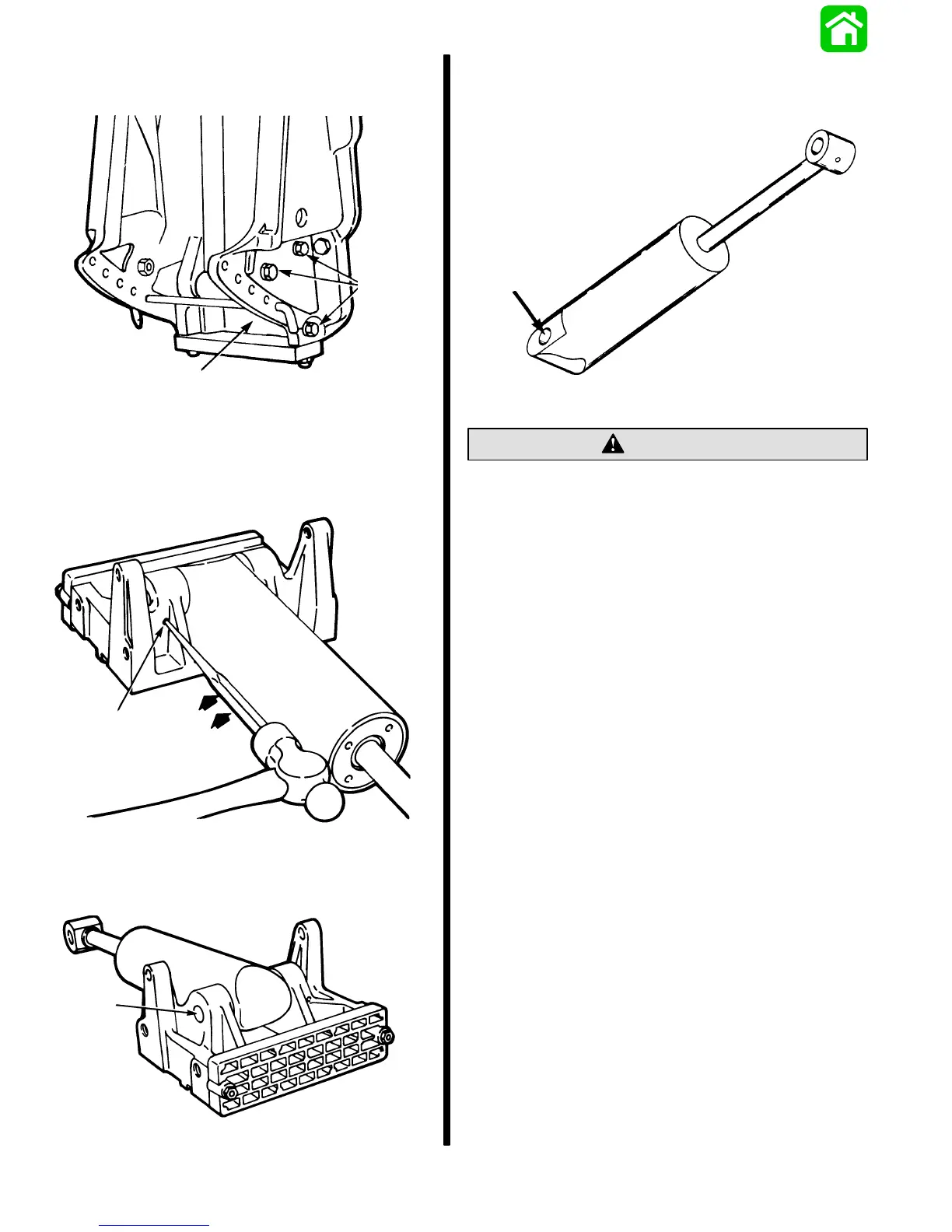

4. Support lower mount bracket and remove (6)
bolts.
17244
a
b
a - Bolts (3 Each Side)
b - Lower Mount Bracket
5. Remove shock absorber from lower mount
bracket by driving out cross pin using a punch and
hammer.
17257
a
a - Cross Pin
6. Push out retaining pin.
17258
b
b - Retaining Pin
Inspection and Repair
1. Inspect bushings and replace if worn.
a
a - Bushings
The shock absorber is pressurized with gas. Do
not disassemble unless fluid is leaking from
shock absorber.
CAUTION
NOTE:
A pressurized shock absorber makes tilting of
the engine easier than a non-pressurized shock
absorber.
If the shock absorber leaks fluid it can be rebuilt by
installing “Shock Absorber Repair Kit” (P/N
41760A2), however, the shock absorber will no
longer be pressurized and the force needed to tilt the
engine will be increased to that of a non-pressurized
shock absorber. Instructions are supplied with kit.
If the shock absorber leaks fluid and a pressurized
shock absorber is desired, replace shock absorber as
an assembly.
