3 Receiving of the goods
3.1 Transport damage
Unpack the goods in the presence of the driver and check for completeness and damage with the
delivery slip. Transport damage must be acknowledged by the transporter (date and signature)! A
late complaint will be rejected by insurance.
3.2 Transport packaging
The transport packaging has been quantitatively reduced to the absolute minimum to transport the
quality parts without damage. The material is fully recyclable. The disposal costs are for the recipient
of the goods. It is also possible to return the packaging material. The costs for transport of these are
for the recipient of the goods. Please note that the packaging may not be contaminated and must be
seperated into groups.
4 Mounting

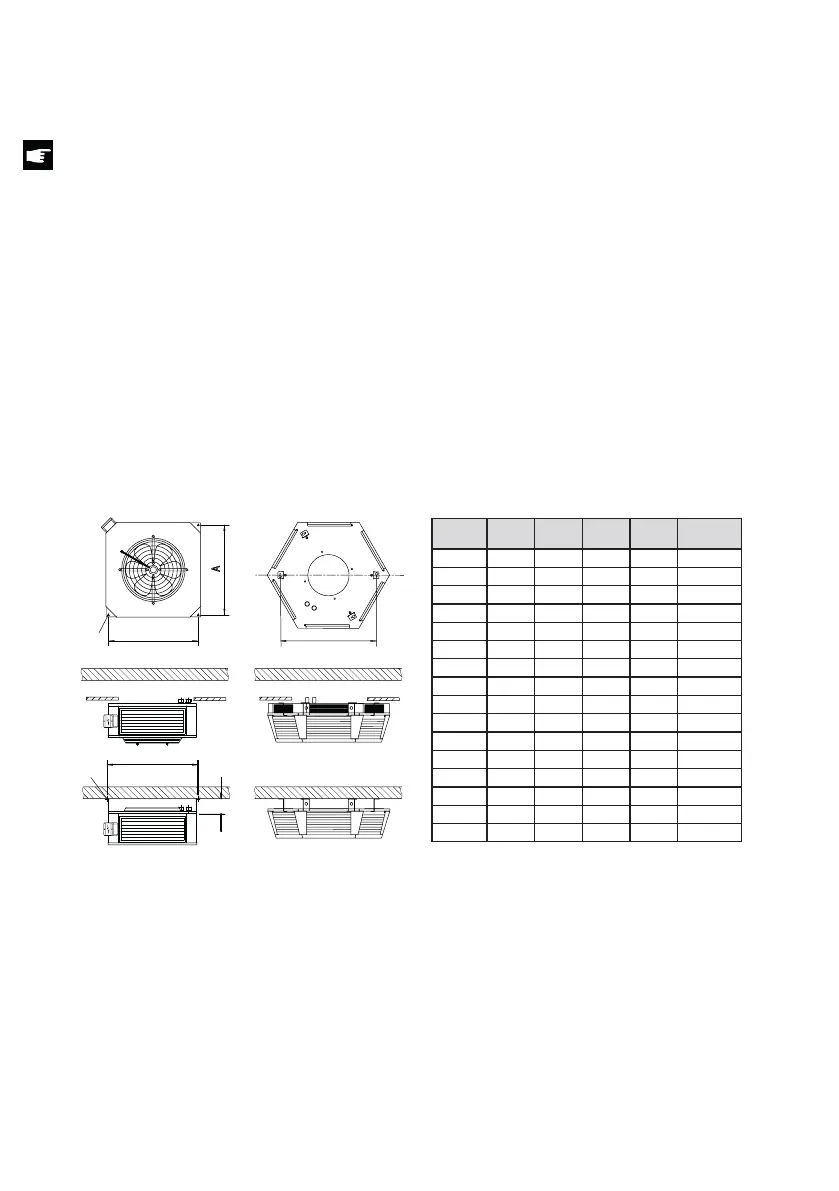

4.1 Ceiling mounting
Fastening the FBA device to the ceiling must be done with ofcially approved fasteners. In the
dimensioning of the fastening the following gear weights should be taken into account.
Installation procedure:
1. Mark the distance to the ceiling and drill.
2. For connection assemble possible required bends.
3. Mount the FBA device with fasteners (for concrete including consoles)
For FBA devices with cooling:
Mount device horizontally. If possible, provide a gentle slope (1º) for the condensation drain (located
inside the unit in the drain).
Type A (mm) B (mm) C (mm) Weight
(kg)
With outlet
nozzle
621 + 626 568 612 22,5 27,5
631 + 636 568 612 25,0 30,0
721 + 726 718 762 30,5 38,0
731 + 736 718 762 32,5 40,0
821 + 826 818 862 37,0 47,0
831 + 836 818 862 39,0 49,0
625-6 835 38,0
635-6 835 40,0
635-6 K 835 56,0
725-6 935 44,0
735-6 935 47,0
735-6-K 935 63,0
825-6 1095 49,0
835-6 1095 54,0
835-6-K 1095 68,0
834-6-D 1095 68,0
4 x ø 9
A
A
B
4 x ø 9
100
C
