14

























72751

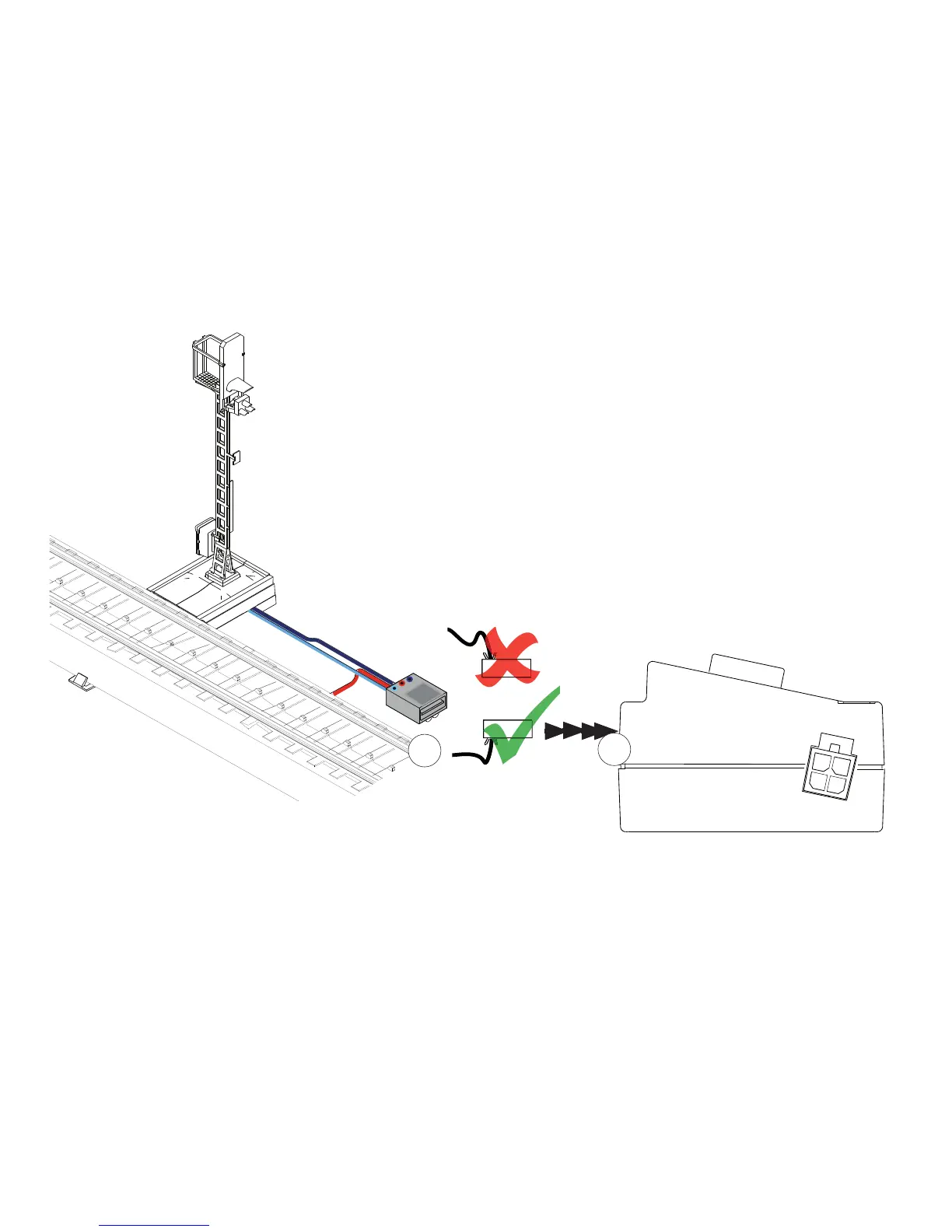

Usingthesocket(Fig.1)attachedtothewiresfromthe
signals plug the 74371 or 74391 signals into the 3-pin plug
contactontherear(Fig.3)ofthesignalcontrolbox.Make
sure that the wires attached to the socket are pointing down
(seeFig.2).Descriptionsofadditionalconnectionworkcan
be found in the instructions for the 72751 signal control box.
Usingthesocket(Fig.1)attachedtoitswires,plugthe74380
signalintothe2-pinplugcontactontherear(Fig.3)ofthe
signal control box next to the plug-in location for the 74391
home signal assigned to it.
Attachdecals(seepage52).
74371
74391
74380
6
7
