11
5. Function
The 74371 and 74391 signals offer the possibility of train con-
trol. The installation of the 74380 distant signal only makes
sense when it is done parallel to the 74391 home signal.
6. Preparations
Setup may be done only under the supervision of adults.
Unplug the switched mode power pack from the household
current in order to prevent damage during setup. Do not plug
the switched mode power pack in the wall outlet again until
you are finished with all of the wiring.
!The cable included with this product may not be changed.
6.1 Setup and Connections (onlywith74371and74391)

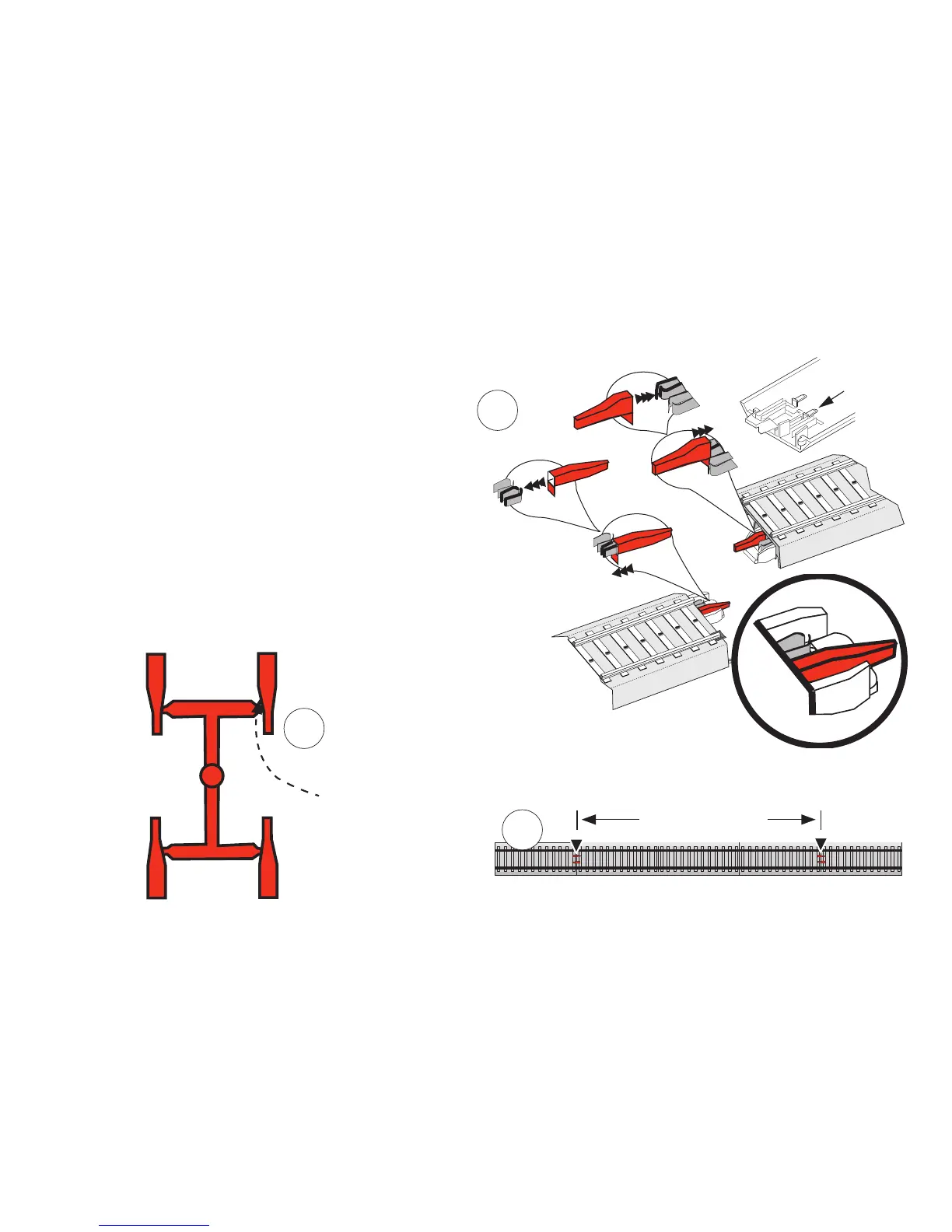

Separate the insulators included with the product.
Slide the separated insulators on to the contacts on the
trackasshowninthedrawing(ContactB).
B
B B
After that, assemble the track sections. We recommend 2 – 3
sectionsoftrack(360mm–540mm/14-3/16“–21-1/4“)for
the insulated length of track.
360 mm — 540 mm
Now, connect the bridge wire and the signal to the track as
1
2
B
0
2a
2b
2a
2b
3
