Mars DVH Series - Outdoor Unit

Service Manual - DVH 09/12/18/24 SF Series
Service Manual - DVH 09/12/18/24 SF Series
11
9

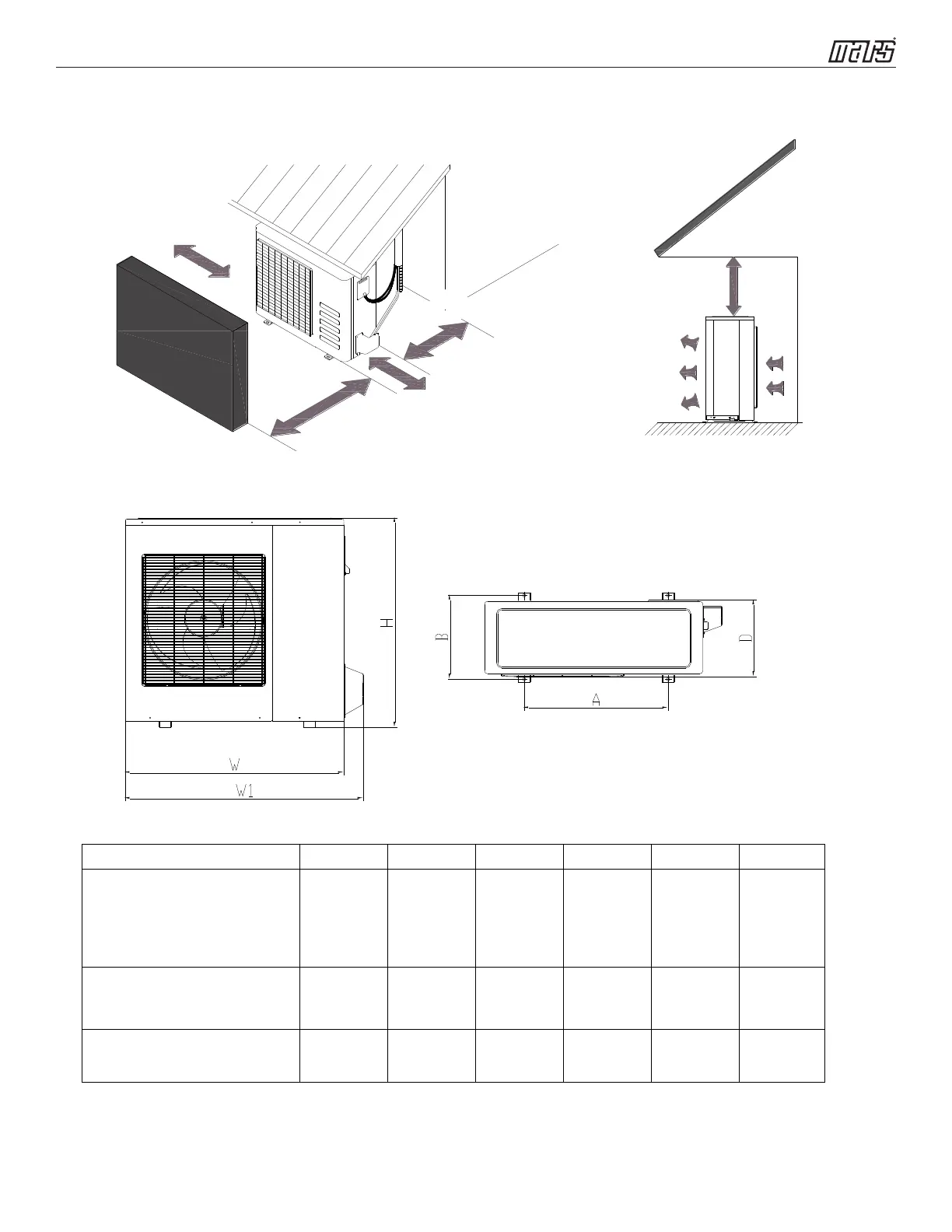

3.2 Outdoor Unit
More than 60cm(23.6in)
More than 70cm(27.6in)
More than 30cm(11.8in)
More than 60cm(23.6in)
(Service space)
Fence or obstacle
More than 30cm(11.8in)
Note: The above drawing is only for reference. The appearance of your units may be different.
Model W D H W1 A B
770(mm) 300(mm) 555(mm) 840(mm) 487(mm) 298(mm)
30.31(inch) 11.81(inch) 21.85(inch) 33.07 (inch) 19.17(inch) 11.73 (inch)
800(mm) 333(mm) 554(mm) 870(mm) 514(mm) 340(mm)
31.50(inch) 13.11(inch) 21.81(inch) 34.25 (inch) 20.24 (inch) 13.39(inch)
A-DVH12SF-0
A-DVH09SF-0
A-DVH18SF-1
A-DVH24SF-1
845(mm) 363(mm) 702(mm) 914(mm) 540(mm) 350(mm)
33.27(inch) 14.29(inch) 27.64(inch) 35.98(inch) 21.26(inch) 13.78(inch)
