Service Manual - DVH 09/12/18/24 SF Series
Service Manual - DVH 09/12/18/24 SF Series
76
78

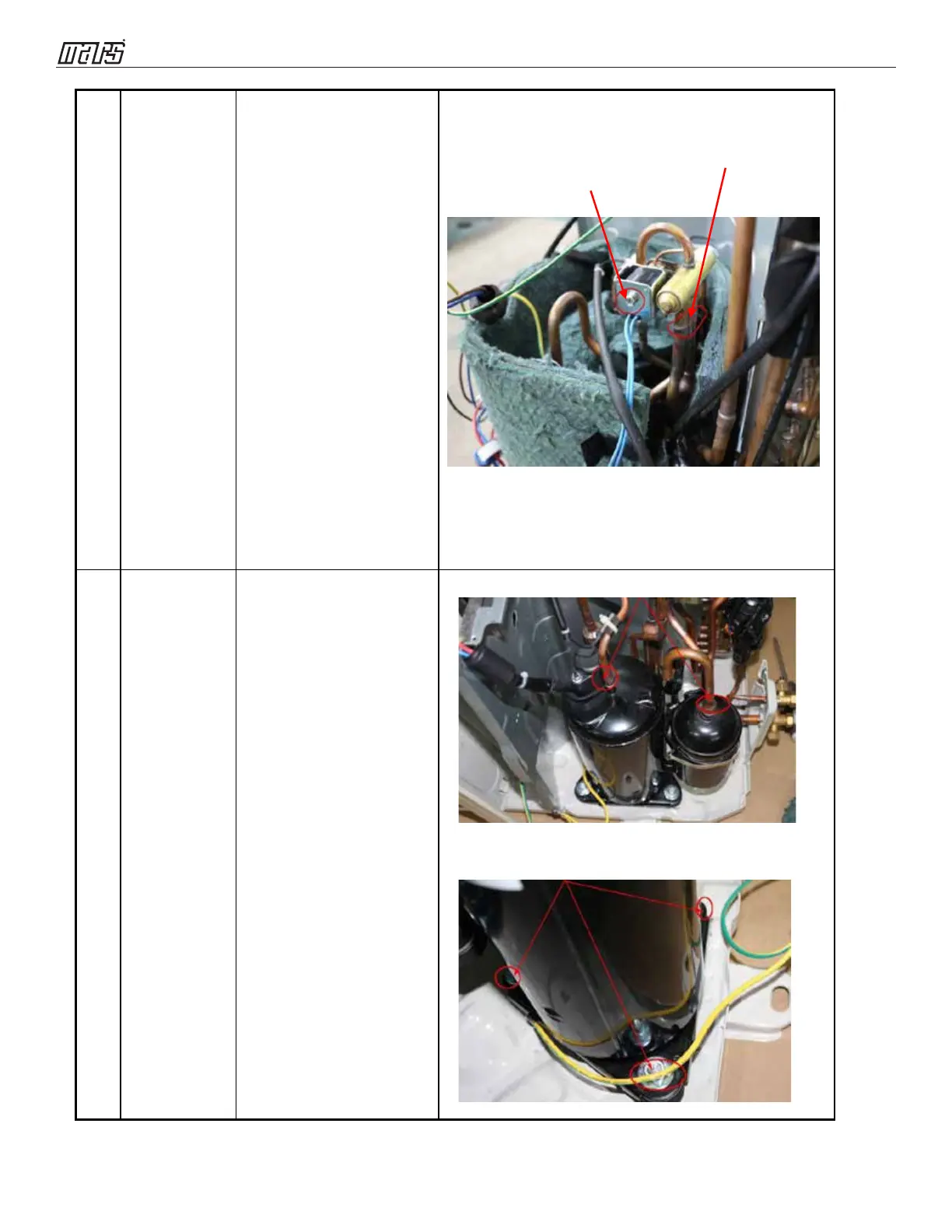

4 Four-way
valve
How to remove the
four-way valve.
1) Perform item1, 3.
2) Recover refrigerant
from the refrigerant circuit.
3) Remove the coil
screw and then remove
the coil.
4) Detach the welded
parts of four-way valve
and pipe.
5) Then the four-way
valve ass’y can be
removed
The picture of four-way valve may be
different from
the one on your side.
○
3
○
4
5 Compressor
How to remove the
compressor.
1) After performing items
1, 3, recover refrigerant
from the refrigerant
circuit.
2) Remove the
discharge pipe and
suction pipe with a torch.
3) Remove the hex nuts
and washers fixing the
compressor on bottom
plate.
4) Lift the compressor
from the base pan
assembly.
○
2
○
3
