Replacing the Lower
Feed Roller
Assembly
1. Turn the machine upside down.
2. Press the release button to unlock the lever. See Figure J.
3. Note the position of the set screw for proper reassembly and then loosen the set
screw on the stud collar using an allen wrench.
4. Pull the eccentric shaft toward you, removing it from the hole in the feed roller
assembly.
5. Remove the two side bolts, nuts and lockwashers on the feed roller assembly. See
Figure J.
6. Remove the feed roller assembly and place the new one in position.
7. Replace the two side bolts, nuts and lockwashers to secure the assembly.
8. Push the eccentric shaft back into position so that it is seated in the hole of the feed
roller assembly.

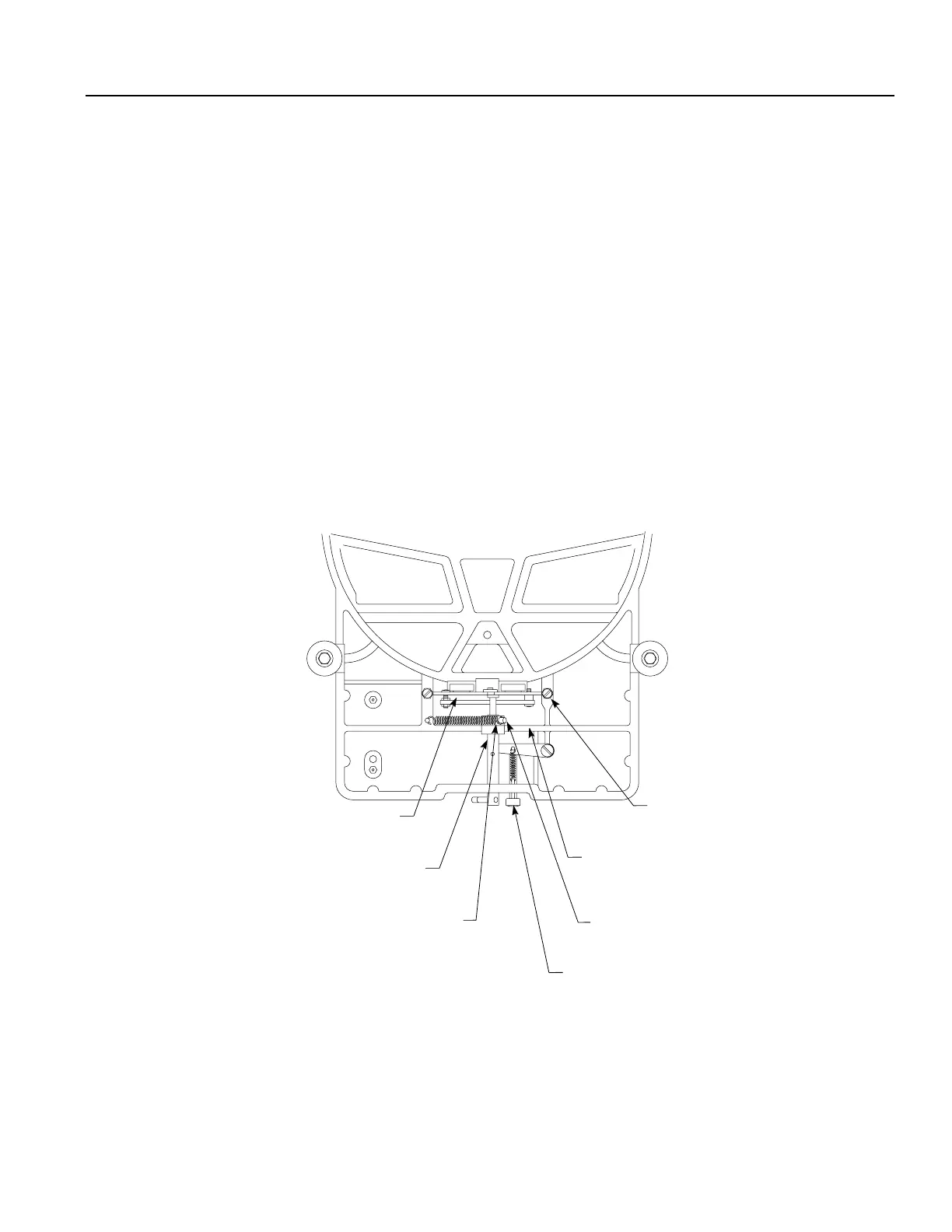

Figure J
Figura J
Release Button
Bouton de dégagement
Botón de liberación
Set Screw
Vis de pression
Tornillo prisionero
Side Bolt, Nut and Lockwasher
Boulon latéral, écrou et rondelle-frein
Perno, tuerca y arandela de
seguridad laterales
Stud Collar
Collier du goujon
Collarín del husillo
Eccentric Shaft
Arbre de l’excentrique
Eje excéntrico
Feed Roller Assembly
Ensemble des rouleaux d’alimentation
Conjunto de rodillos de avance
Base Wall
Paroi de base
Pared de base
