CV355-30X-IP Manual
www.marshall-usa.com3 4
Precautions
Warning: To reduce the risk of fire or electric shock, do not expose this camera to rain,
moisture, debris or liquids.
If the HD camera will not be used for an extended time, unplug it from the power socket.
Caution: To reduce the risk of electric shock, do not remove cover (or back). No user-
serviceable parts inside. Refer servicing to licensed service personnel. Please do not open it
by yourself
This symbol indicates that this equipment may contain dangerous voltage which could cause
electric shock.
This symbol indicates that there are important operating and maintenance instructions in this
User Manual with this unit.
FCC Warning
This product has been tested and found to comply with the limits for a Class B computer device,
pursuant to Article 15-J of FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This digital apparatus does not exceed the Class B limits for radio noise emissions
from digital apparatus as set out in the interference-causing equipment standard
entitled “Digital Apparatus” ICES-003 of Industry Canada.
Cet appareil numerique respecte les limites de bruits radioelectriques applicables aux appareils
numeriques de Classe B prescrites dans la norme sur le material brouilleur: “Appareils
Numeriques, ” NMB-003 edictee par l’Industrie.
EN55032 (CE Radiation) Warning
Operation of this equipment in a residential environment could cause radio interference.

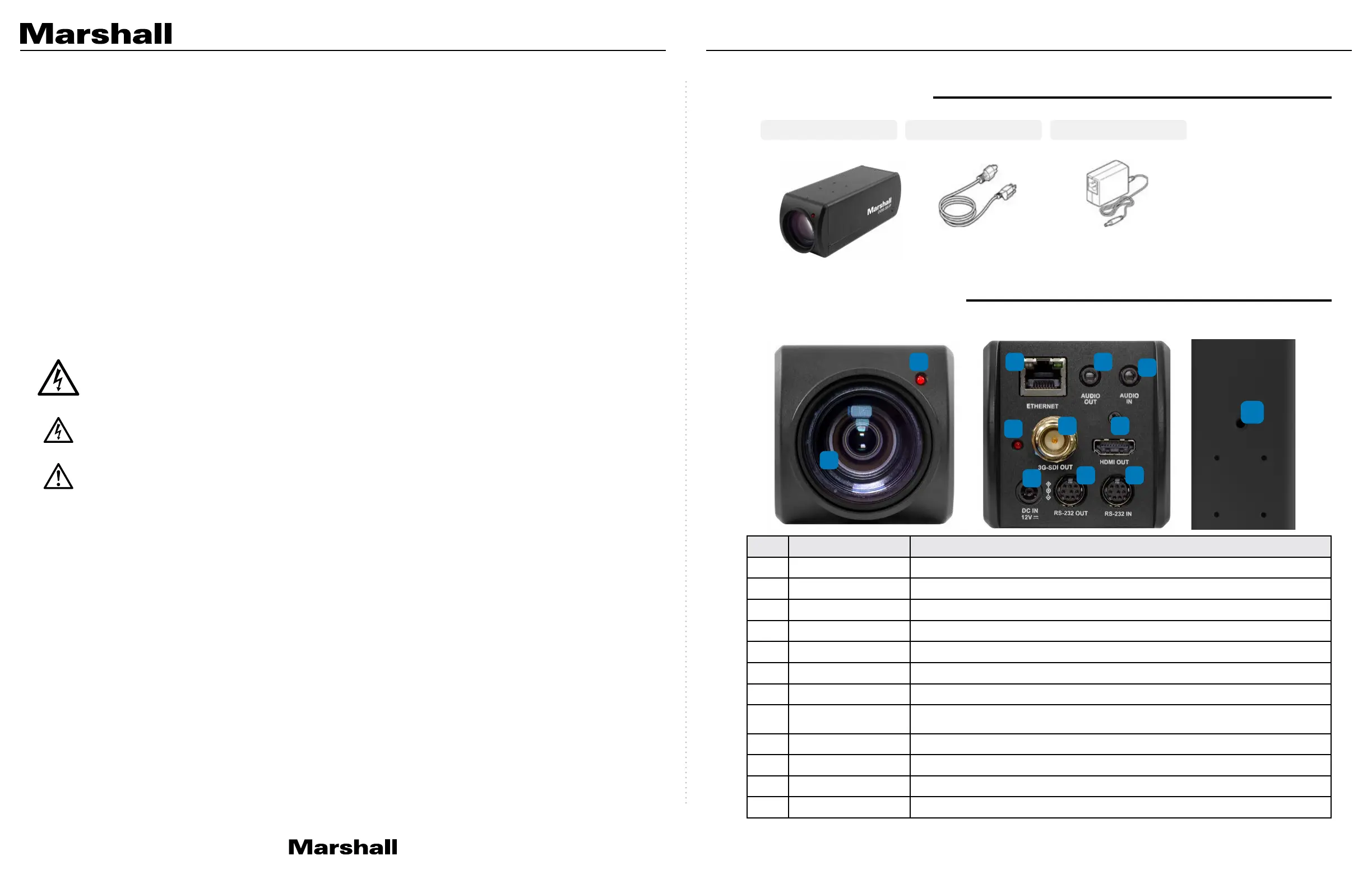

1. Package Contents
2. Function Introduction
CV355-30X-IP Power Cord Power Adapter
2.1 I/O functions Introductions
No. Item. Function Descriptions
1 Lens 30x HD camera lens
2 Tally indicator light Tally light displays status of the camera
3 Network port Network port. Support routers or hubs (IEEE 802.3 af) with PoE power supply support
4 3G-SDI output The factory setting for the output resolution is 1080P/60
5 HDMI output HDMI output port
6 RS232 output RS232 output port. At most 7 cameras can be connected in a serial connection
7 RS232 input RS232 input port. At most 7 cameras can be connected in a serial connection
8 DC 12 V power
connector
AC power supply connecting port
9 Power indicator light After power is on, the indicator light will display in red
10 Audio input 3.5mm Audio Input supports Line-level or Mic-level Stereo/Mono input
11 Audio output Loop-through 3.5mm Output
12 Tripod screw holes The camera is mounted on a (specification) 1/4”, 20 UNC tripod deck
1
2 3 11
10
4
9
8
76
5
12
4. Cleaning
4.1 Unplug all the cables before cleaning. Use a damp cloth for cleaning. Do not use liquid
or aerosol cleaners or allow any liquids to enter camera body.
5. Remote Control (if applicable)
5.1 Using an incorrect battery type in the remote control may result in breakdown. Follow
local instructions on how to dispose of used batteries.
*Appearance may vary depending
on country/region
