Marshall Amplification CV420-30X-IP - Browser & RTSP Viewing

11

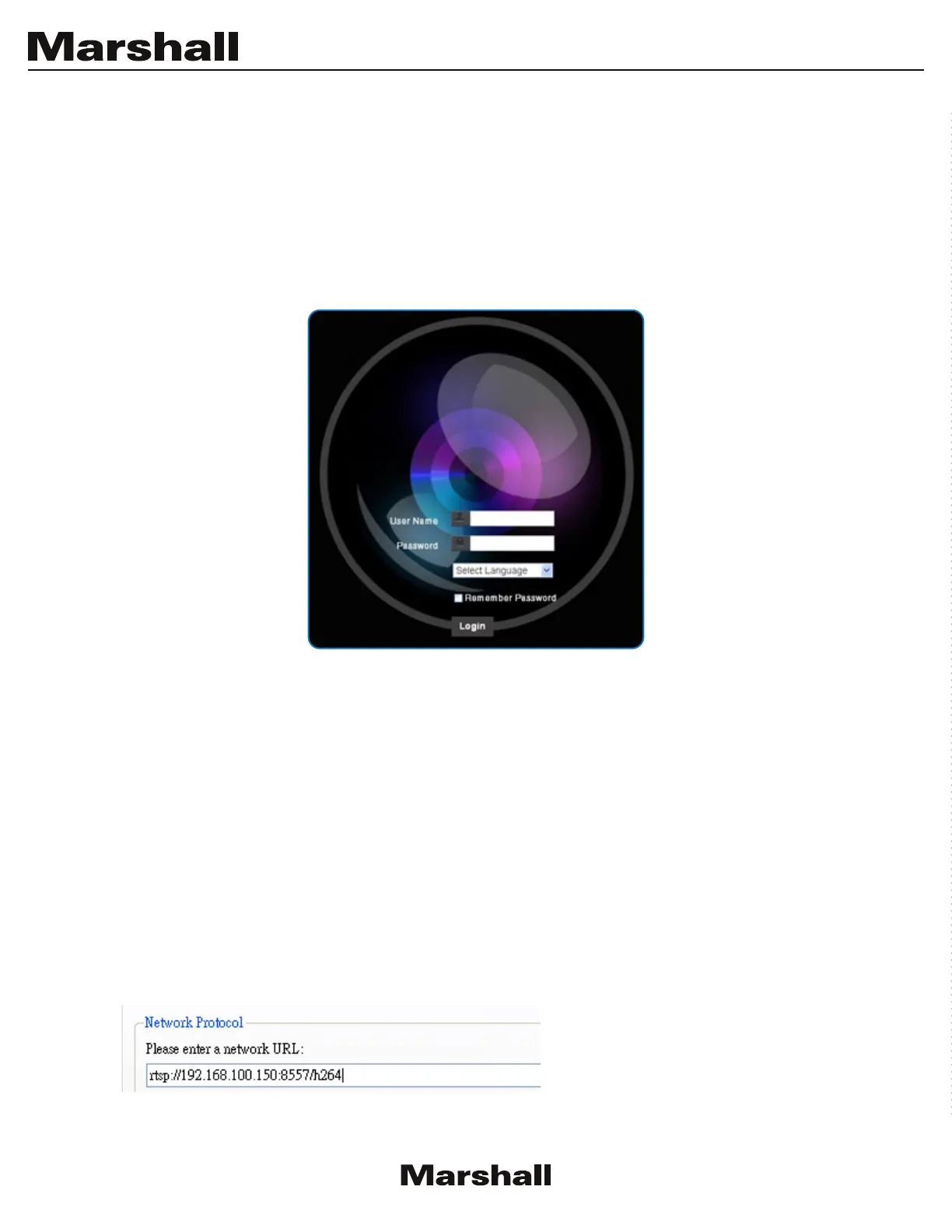

4.2.3 Using the Browser to View the Images
• Open the browser, and enter the URL of CV420-30X-IP in the IP address bar
e.g.: http://192.168.100.100 (default IP address)
• Enter administrator’s account and password
Account: admin (Default)
Password: 9999 (Default)
4.2.4 Using RTSP Player to View the Images
Besides the browser and VMS, other free software also can be used for RTSP connection, such as
VLC, Quick Time, PotPlayer, and other free software
RTSP connection address formats are as follows:
• RTSP Main Streaming => rtsp://camera IP:8554/hevc
• RTSP Sub1 Streaming => rtsp://camera IP:8557/h264
• RTSP Sub2 Streaming => rtsp://camera IP:8556/h264
•
Example: Open VLC software and input the URL: rtsp://192.168.100.150:8557/h264
