CV420-30X-IP Manual
www.marshall-usa.com 4

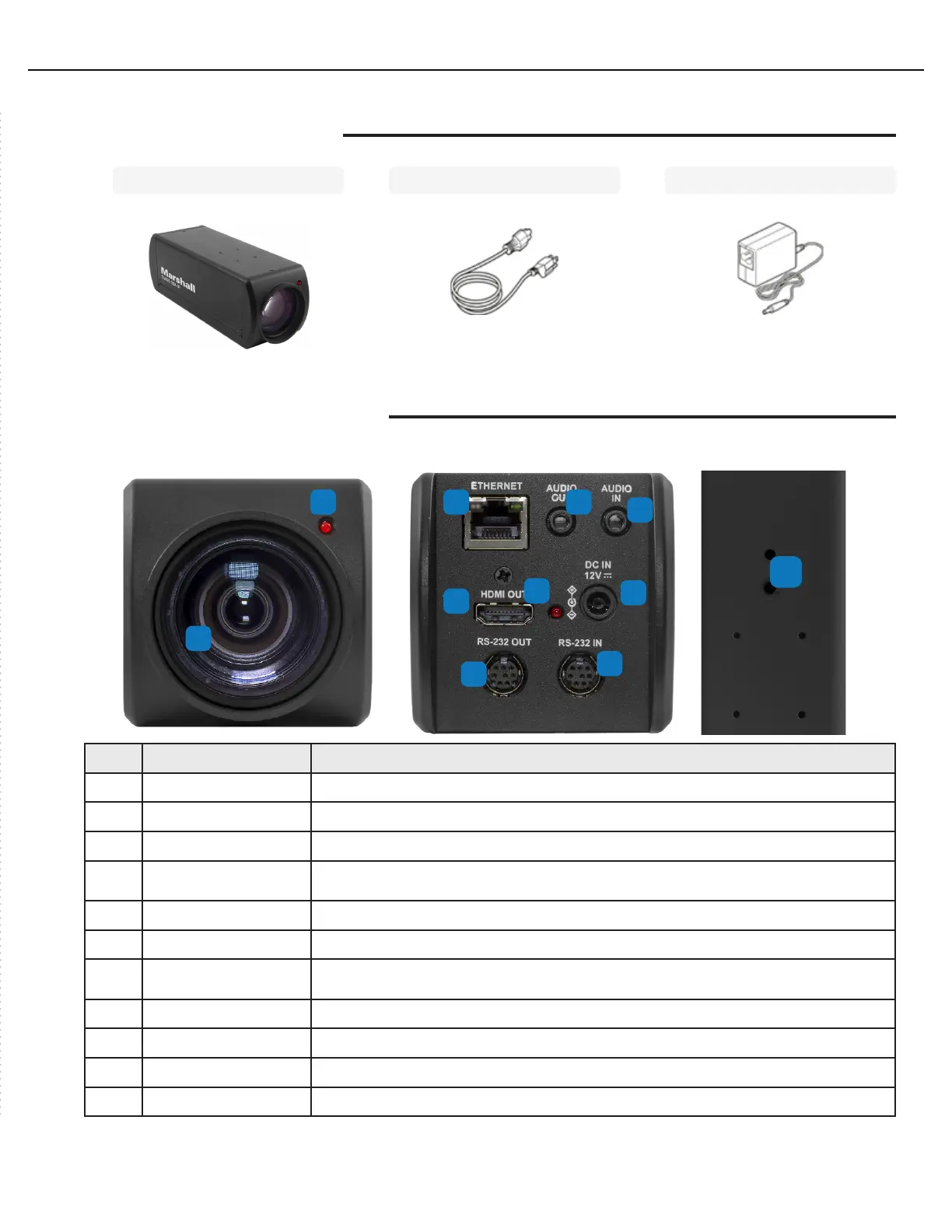

1. Package Contents
2. Function Introduction
CV420-30X-IP Power Cord Power Adapter
*Appearance may vary depending
on country/region
2.1 I/O functions Introductions
No. Item. Function Descriptions
1 Lens 30x HD/UHD camera lens
2 Tally indicator light Tally light displays status of the camera
3 Network port Network port. Support routers or hubs (IEEE 802.3 af) with PoE power supply support
4 HDMI output The factory output resolution is 4K/30. Please make sure that the connected display
device supports 4K resolution
5 RS232 output RS232 output port. At most 7 cameras can be connected in a serial connection
6 RS232 input RS232 input port. At most 7 cameras can be connected in a serial connection
7 DC 12 V power
connector
AC power supply connecting port
8 Power indicator light After power is on, the indicator light will display in red
9 Audio input 3.5mm Audio Input supports Line-level or Mic-level Stereo/Mono input
10 Audio output Loop-through 3.5mm Output
11 Tripod screw holes The camera is mounted on a (specification) 1/4”, 20 UNC tripod deck
1
2 3 10
9
4
8
7
6
5
11
