CV420-30X-IP Manual
www.marshall-usa.com 8

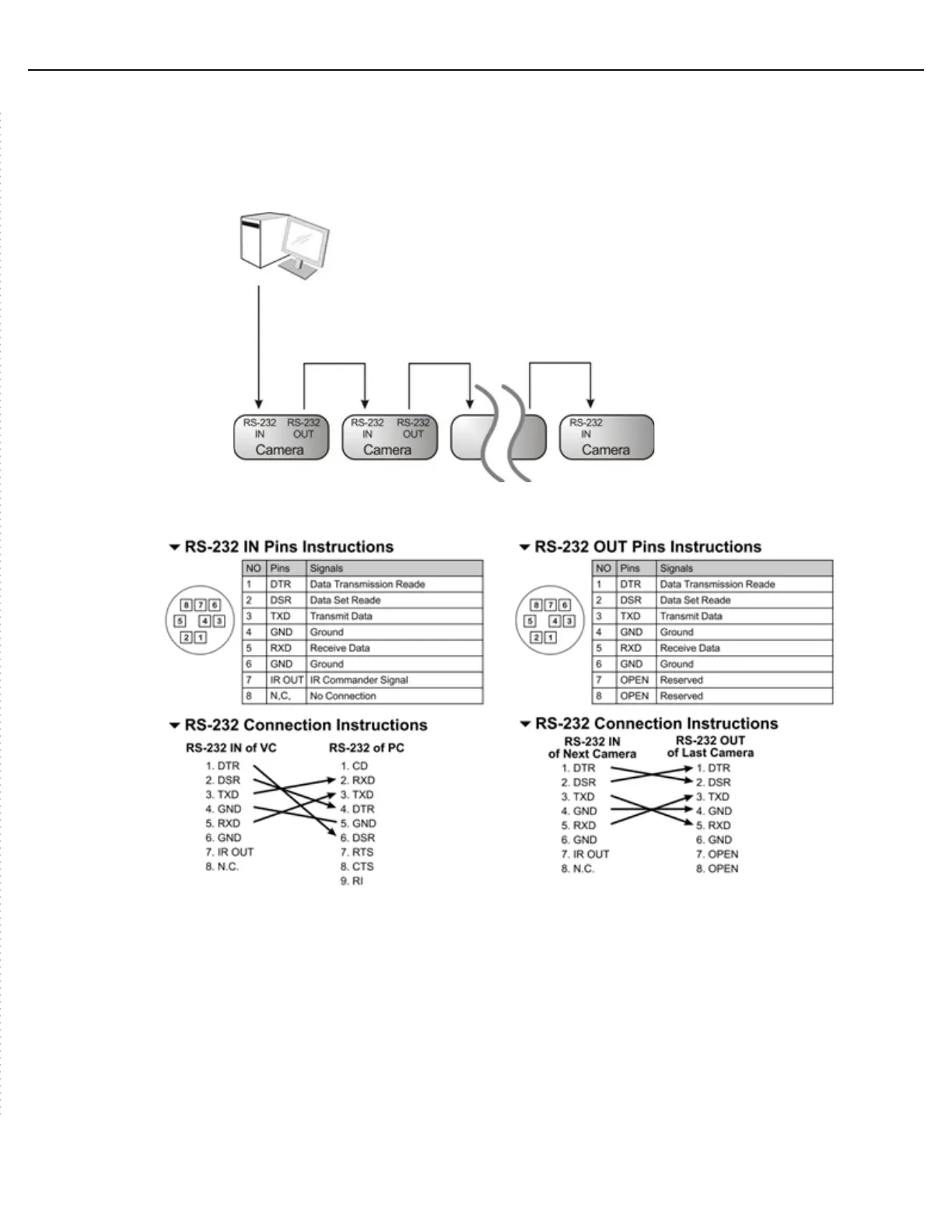

3.2.4 Connecting RS-232
CV420 camera includes a RS232 IN and OUT for Daisy Chain style connections, or can be setup
via home run using splitters (use CV620-CABLE-07 extenders to convert to CAT RJ45 cables for
longer runs).
• RS-232 pin definition description
