CV605-BK/WH Manual
www.marshall-usa.com6 7
b. Webpage Login: Open web browser and enter default IP address 192.168.5.163 in the address bar (factory default);
press Enter and enter the LOGIN prompt. Then enter the default user name admin and password admin (factory
default); then press Enter to see preview page, users can carry out PTZ control, playback, configuration and other
operations from this software GUI.
2) 3GSDI (BNC) output: Connect the camera to a monitor or switching equipment using 3GSDI (RG6) coaxial cable, then the
monitor or other equipment will display image.
2. Product overview
2.1 Product Introduction
2.1.1 Dimension

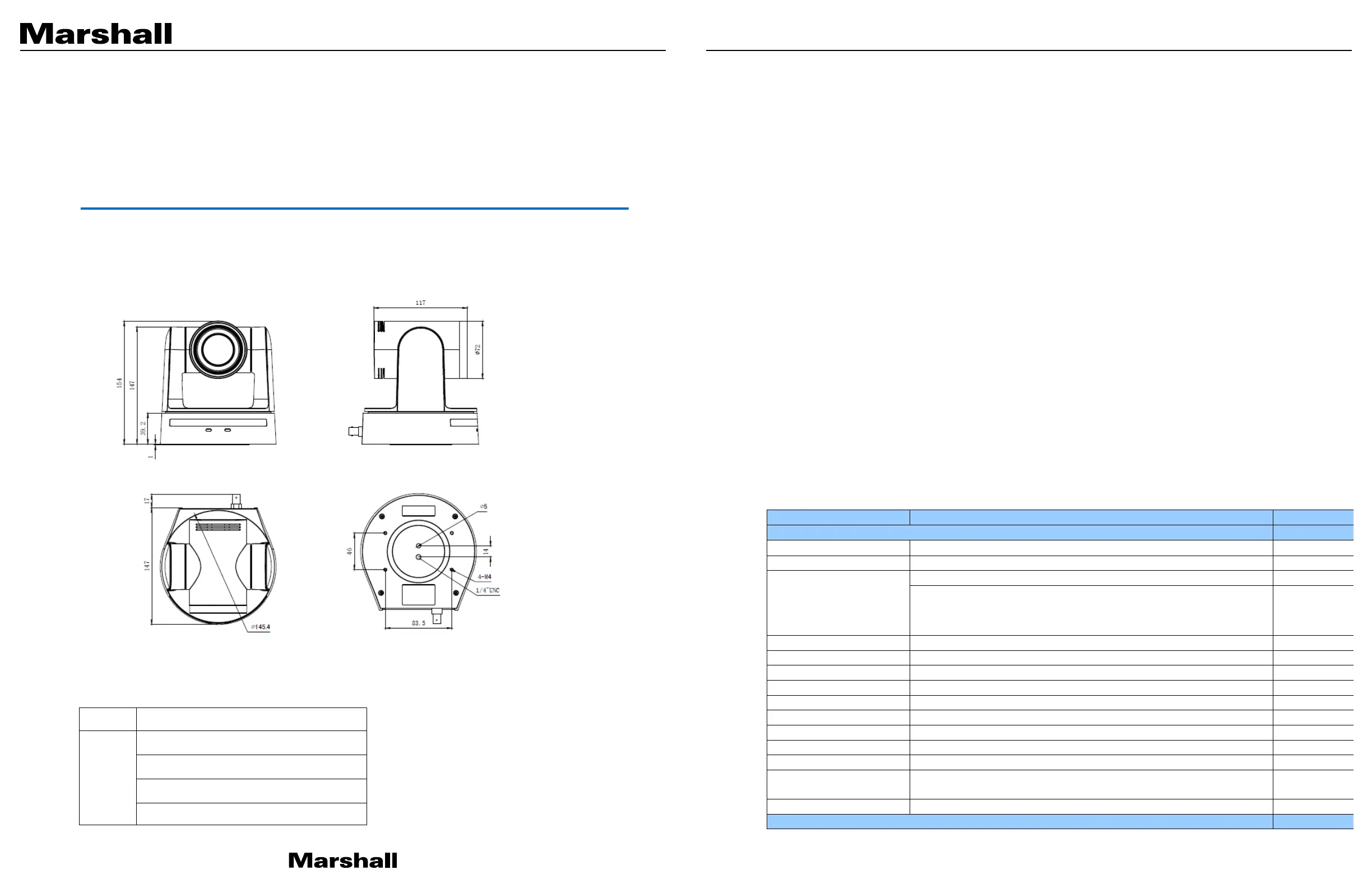

Figure 2.2 Camera dimension
2.1.2 Accessory
During unpacking the box, please check that all the supplied accessories are included:
Model NO. Accessories
CV605-BK/
CV605-WH
Power adapter
IR Remote controller
Thank You Card
Warranty card
2.2 Main Features
The CV605 camera series offers high quality performance with rich feature sets. The features include advanced ISP
processing algorithms to provide vivid images with deep color depth, crisp and clear HD images and accurate color
reproduction. The CV605 also supports H.265/H.264 encoding which creates smooth IP video performance and clear
images under less-than-ideal bandwidth conditions.
1. True High-Definition Image: 1/2.8-inch-high quality CMOS sensor. Resolution is up to 1920x1080p up to 60 fps.
2. Optical Zoom Lens: 5X zoom lens reaches a wide angle 85° AOV with very low distortion
3. Leading Auto Focus Technology: Cutting edge auto focus algorithm makes lens a fast, accurate and stable auto-focus.
4. Low Noise and High SNR: Low Noise CMOS effectively ensure high SNR of camera video.
Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.
5. Quiet PTZ: By designing in a high accuracy step motor technology, camera movement is extremely quiet with smooth
maneuvers and fast accurate destinations (presets).
6. Video Outputs: Support up to 3GSDI and LAN interfaces.
7. Multiple Video compression: Support H.265/H.264 video compression
8. Audio Input Interface: Supports 16000,32000,44100,48000 sampling frequency and AAC, MP3, G.711A audio coding.
9. Multiple Network Protocol Support: ONVIF, RTSP, RTMP protocols
10. Low-power sleep function: Supports ultra-low power consumption while in sleep mode (less then 400mW)
11.Multiple Control Protocols: Support VISCA, Pelco-D, Pelco-P and supports auto-recognize protocol discovery.
12.255 Presets Positions: Up to 255 presets (10 presets available on IR remote controller).
2.3 Technical specification
Model
CV605-BK / CV605-WH
Camera Specs
Optical Zoom
5X Optical Zoom (3
～
15.5mm)
Sensor
1/2.8-inch-high quality HD CMOS sensor
Effective Pixels
Video Format
16:9, 2 Megapixel
3G/HD-SDI video formats
1920x1080p @ 60/59.94/50/30/29.97/25 fps
1920x1080i @ 60/59.94/50 fps
1280x720p @ 60/59.94/50/30/29.97/25 fps
Viewing Angle
85° (wide open) through 16° (telephoto)
Digital Zoom
10X additional
Minimum Illumination
0.5Lux (F1.8, AGC ON)
DNR
2D & 3D DNR
White Balance
Auto / Manual/ One Push/ VAR
Focus
Auto/Manual/One Push
Iris
Close/F11/9.6/8.0/6.8/5.6/4.8/4.0/3.4/2.8/2.4/2.0/1.8
Electronic Shutter
Auto/Manual
BLC
ON/OFF
Video Adjustment
Brightness, Color, Saturation, Contrast, Sharpness,
B/W mode, Gamma curve
SNR
>55dB
Input/ Output Interface
Oponal Accessories (sold separately):
• CV605-WM (Wall Mount-Black)
• CV605-WMW (Wall Mount-White)
• CV605-CM Ceiling Mount
