Available Video I/O
3G/HD-SDI, LAN, RS232 (RJ45), Audio-IN
Image Output Multiple
Code Source
Dual Code Source output (3GSDI, LAN)
Video Compression Format
H.264 & H.265
Audio Input Interface
Two-channel 3.5mm (Line or Mic level)
Audio Output
3G/HD-SDI, LAN (IP) embedded
Audio Compression Format
AAC/MP3/G.711A
IP Interface
100M IP port (100BASE-TX)
Network Protocol
RTSP/RTMP, ONVIF, GBT28181; Visca over IP control protocol
Control Interface
RS232
Control Protocol
VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/38400/9600/4800/2400
Power Interface
HEC380 outlet (DC12V), PoE (IEEE 802.3af)
Supply Adapter
AC110V-AC220V to DC12V/1.5A
Input Voltage
DC12V±10%
Input Current
1A (Max)
Consumption
12W (Max)
PTZ Parameters
Pan Rotation
270 degrees of pan (+/-135°)
Tilt Rotation
60 degrees of tilt (-30°
～
+30°)
Pan Control Speed Range
0.1 -60°/sec
Tilt Control Speed Range
0.1-30°/sec
Preset Speed
Pan: 60°/sec, Tilt: 30°/sec
Preset Number
255 presets (10 presets by remote controller)
Other Parameters
Store Temperature
-10
℃～
+60
℃
Store Humidity
20% - 95%
Working Temperature
-10
℃～
+50
℃
Working Humidity
20% - 80%
Dimension
145.4mm x 147mm x 154mm
Weight
2.8 lbs (1.27 Kg)
Use Environment
Indoor
Accessories in Box
Power adapter, IR remote controller, Thank You Card, Warranty Card
2.4 Interface Instruction
2.4.1 External Interface
1) External interfaces: Audio Input, 3G- SDI Output, Ethernet, RS232 input, DC12V Power.

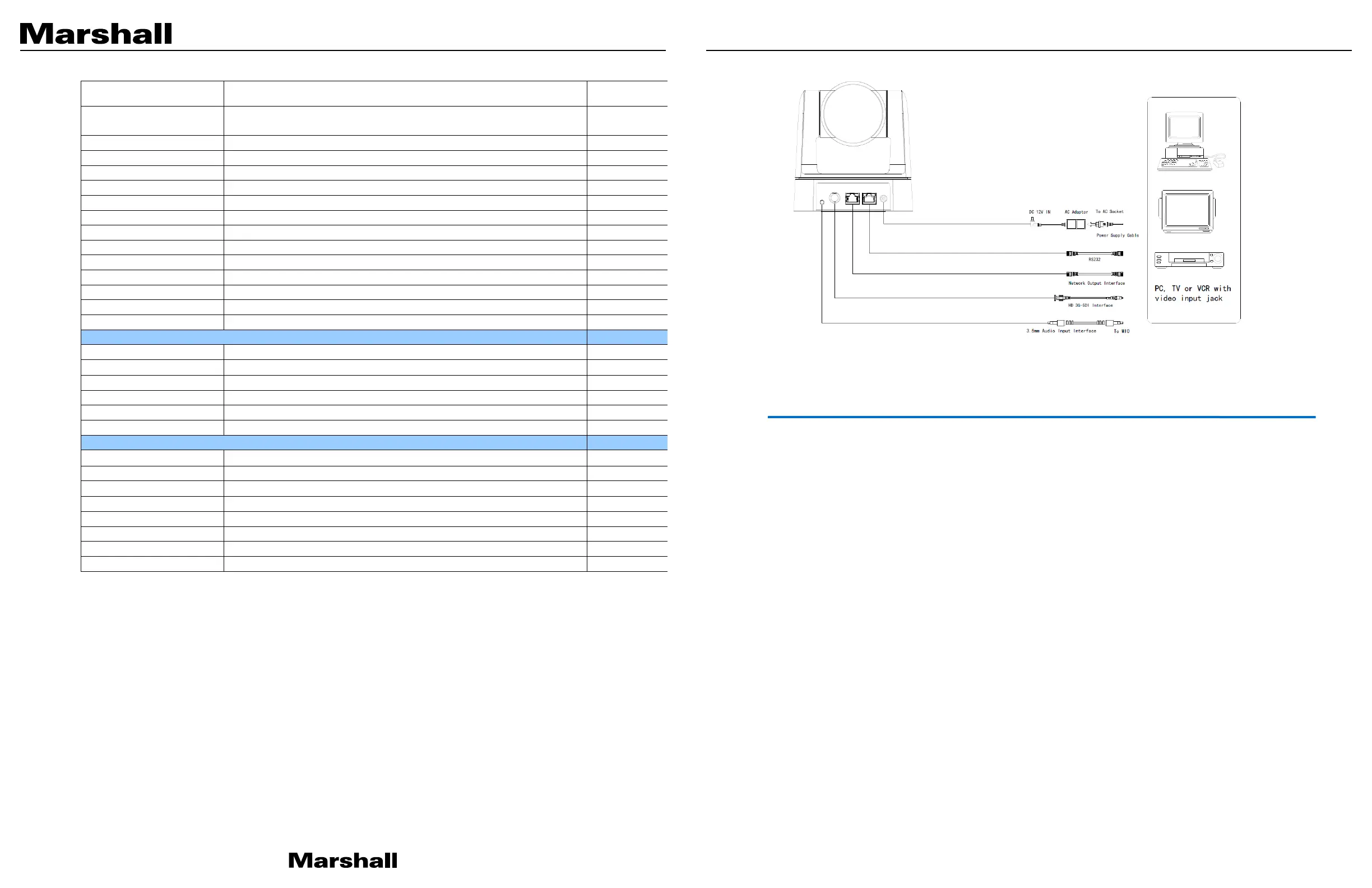

Figure 2.3 external interface diagram
3. Application Instruction
