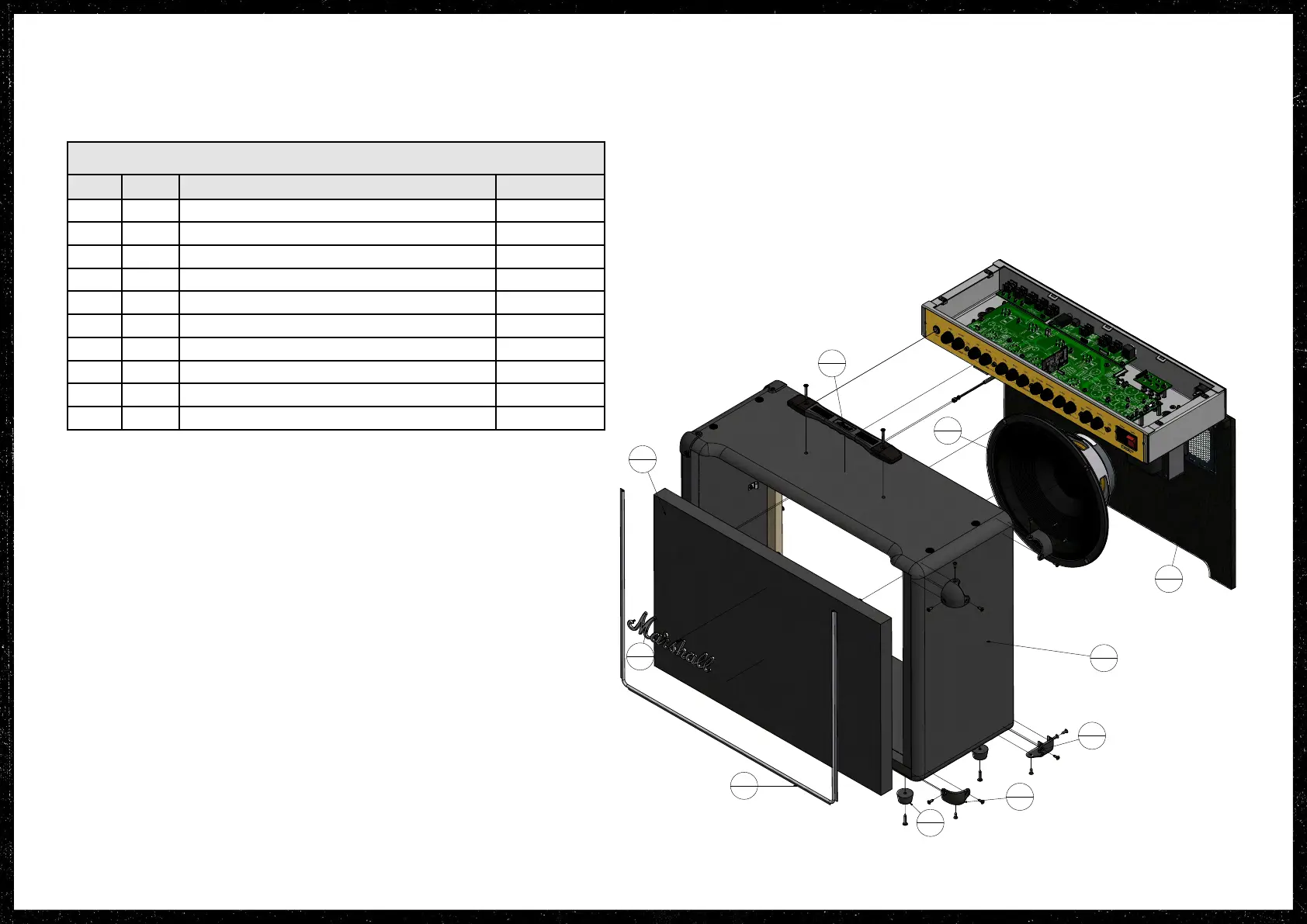

DSL40CR EXTERIOR
PARTS LIST
ITEM QTY DESCRIPTION STOCK NO.
1 2.0 WHITE PVC 5.0DIA X 13 PIPE-90002
2 1 SMALL WHITE LOGO LOGO-01204
3 1.0 BLACK FRET COVERING FRET-90027
4 1 HANDLE OVERMOULD WITH BLACK END CAPS HNDL-90014
5 1 12” SPEAKER (16OHM) V-TYPE SPKR-91009
6 1.0 BLACK ELEPHANT GRAIN CVER-90002
7 2.0 BLACK ELEPHANT GRAIN CVER-90002
8 4 90 DEGREE REAR CORNER CORN-91008
9 4 90 DEGREE FRONT CORNER CORN-91007
10 4 RUBBER FEET (BIG) FEET-90026
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
SHEET 1 OF 1
DRAWN
CHECKED
QA
MFG
APPROVED
MPoderys
23/01/2020
DWG NO
DSL40C-00-00-01 FOR SERVICE MANUAL
TITLE
SIZE
D
SCALE
REV
1:2.2
1
2.0
2
1
3
1.0
4
1
5
1
6
1.0
7
2.0
8
4
9
4
10
4
6DSL40CR service manual
BOOK-80015-01 | M3390.069
