Marshall Electronics CV630-IP User Manual

English - 6
Chapter 3 Function Introduction

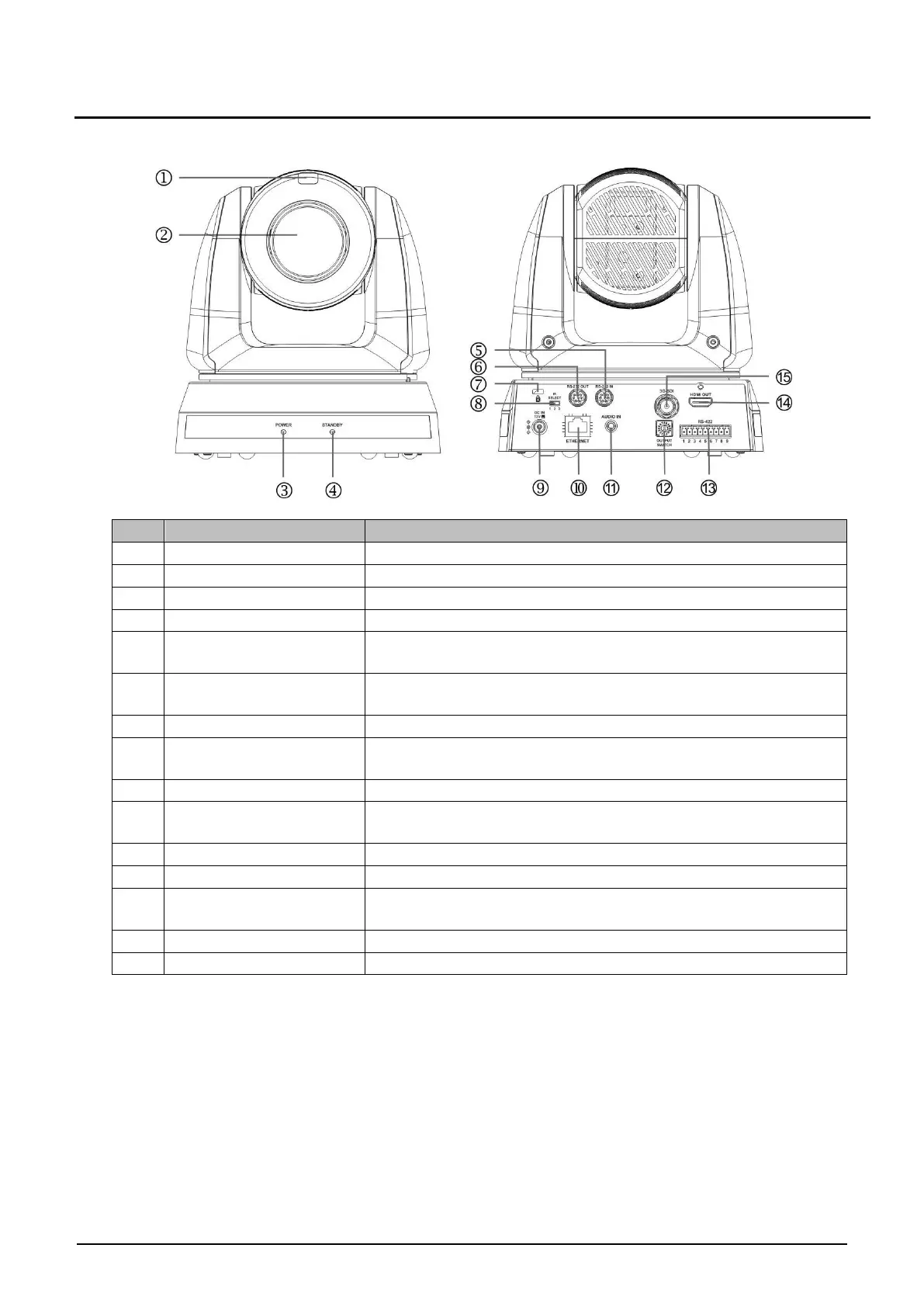

3.1 I/O functions Introduction
NO.
Item
Function Descriptions
1.
Tally indicator light
Displays the tally light status of the camera
2.
Camera lens
30x HD/UHD camera lens
3.
Power LED indicator
Displays the status of the camera
4.
Standby LED indicator
Displays the status of the camera
5. RS-232 input
RS-232 input port, up to 7 cameras can be connected in a
serial connection
6. RS-232 output
RS-232 output port, up to 7 cameras can be connected in a
serial connection
7.
Kensington lock hole
Lock hole of safety lock
8. IR SELECT
The remote-control ID setting is set to match and control the
specific corresponding Camera (up to three cameras)
9.
DC 12 V power Port
DC power supply connecting port
10. Ethernet port
Network cable port supports routers or hubs of PoE+ (IEEE
802.3at) with power supply
11.
Audio input
Supports Line/Mic In
12.
OUTPUT Switch
Adjust the resolution setting. The default is 1080p/59.94
13. RS-422 Port
RS-422 connecting port; up to 7 cameras can be connected
in a serial connection
14.
HDMI output
HDMI output (Audio output supported)
15.
3G-SDI output
3G/HD-SDI output (Audio output supported)

Marshall Electronics CV630-IP Specifications

General

Megapixel	8 MP
Camera type	Single camera
Sensor type	-
Optical zoom	30 x
Zoom capability	Yes
Optical sensor size	1/2.5 \
Vertical field of view (wide)	70 °
Networking standards	IEEE 802.3at
Maximum frame rate	- fps
Supported video modes	720p, 1080p, 3840p
Video formats supported	H.264, H.265, HEVC
Maximum video resolution	3840 x 2160 pixels
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160
Pan range	0 - 340 °
Product color	Black
Tilt angle range	0 - 120 °
