12
■
Pixel-to-Pixel
Use this setting to enable Pixel-to-Pixel mode.
This mode bypasses the monitor’s internal scaling function and displays images in their native resolution and aspect ratio, with a
one-to-one mapping of incoming image pixels to screen pixels:
• For incoming formats smaller than the native resolution of the screen (or selected aspect ratio), the image will be
displayed in the center of the screen using only the necessary LCD pixels. For example, 720p images will occupy exactly 1280x720
pixels in the center of the screen. The surrounding screen area will be black.
To select a Custom Pixel to Pixel zone, enter the Adjust function:
Adjust
Custom Aspect Ratio selection
21

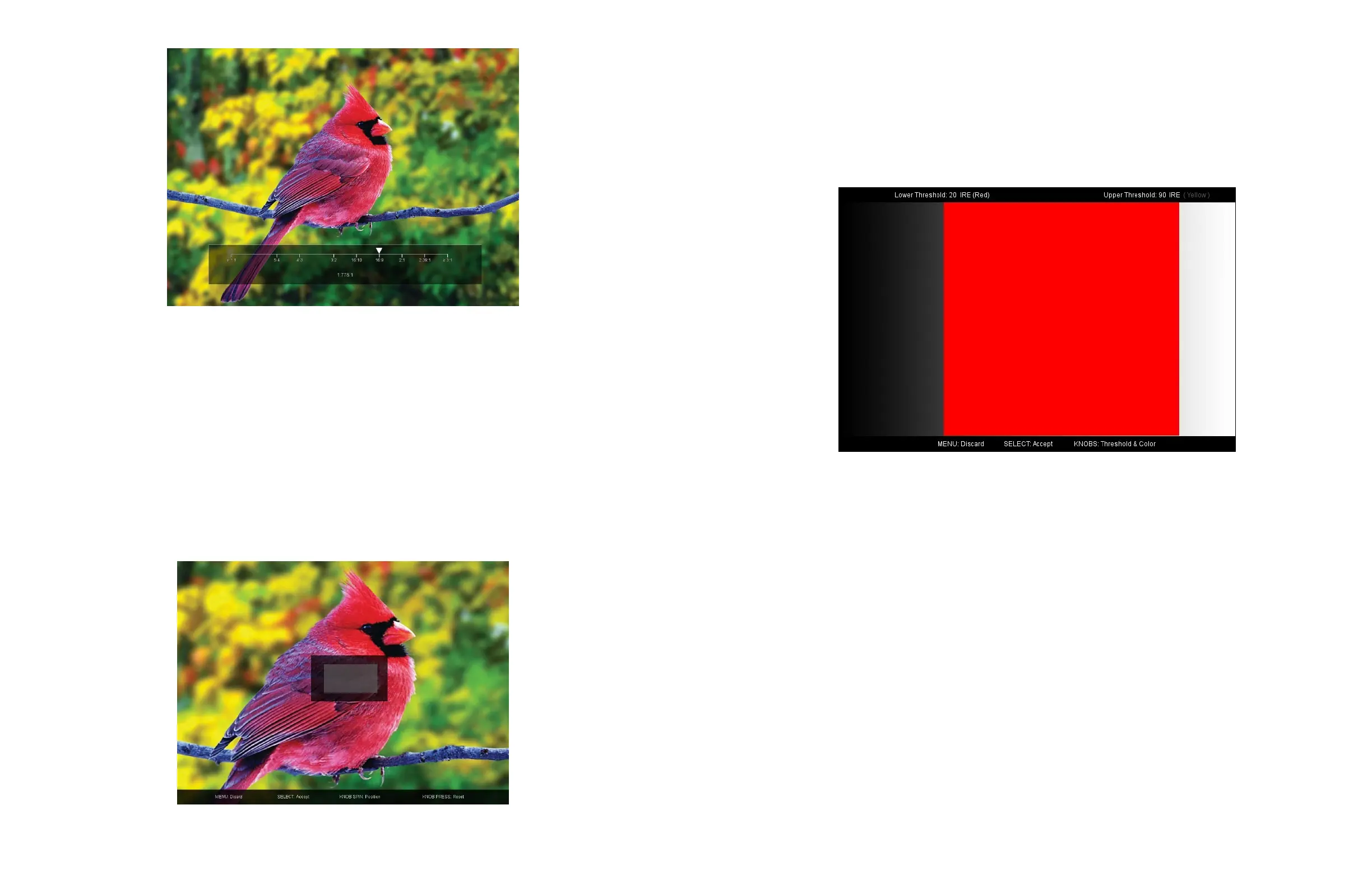

In the image above, the Lower Threshold has been set to 20 IRE (Red). This means that any part of the image UNDER 20 IRE
will be “colored” in RED. Also, the Upper Threshold has been set to 90 IRE (Yellow). This means that any part of the image
OVER 90 IRE will be “colored” in YELLOW.
■
Invert
The Clip function can also be inverted to filter the area between the Upper and Lower Threshold. The color selected
for the Lower Threshold acts as the color for all inverted Clip data.
In the image above, the Lower Threshold is set to 20 IRE and the Upper Threshold is set to 90 IRE. The Clip Invert will
filter all data in between 20 IRE and 90 IRE and color it RED.
■
Monochrome
Enabling Monochrome in the Clip filter will convert all video to monochrome first, and then apply the Clip filter. This
helps visually filtered data stand out from regular color video.
■
Apply To Waveform
Enabling Monochrome in the Clip filter will convert all video to monochrome first, and then apply the Clip filter. This
helps visually filtered data stand out from regular color video.
