Marshall Electronics VMV-402-SH User Manual

JR101017a
5

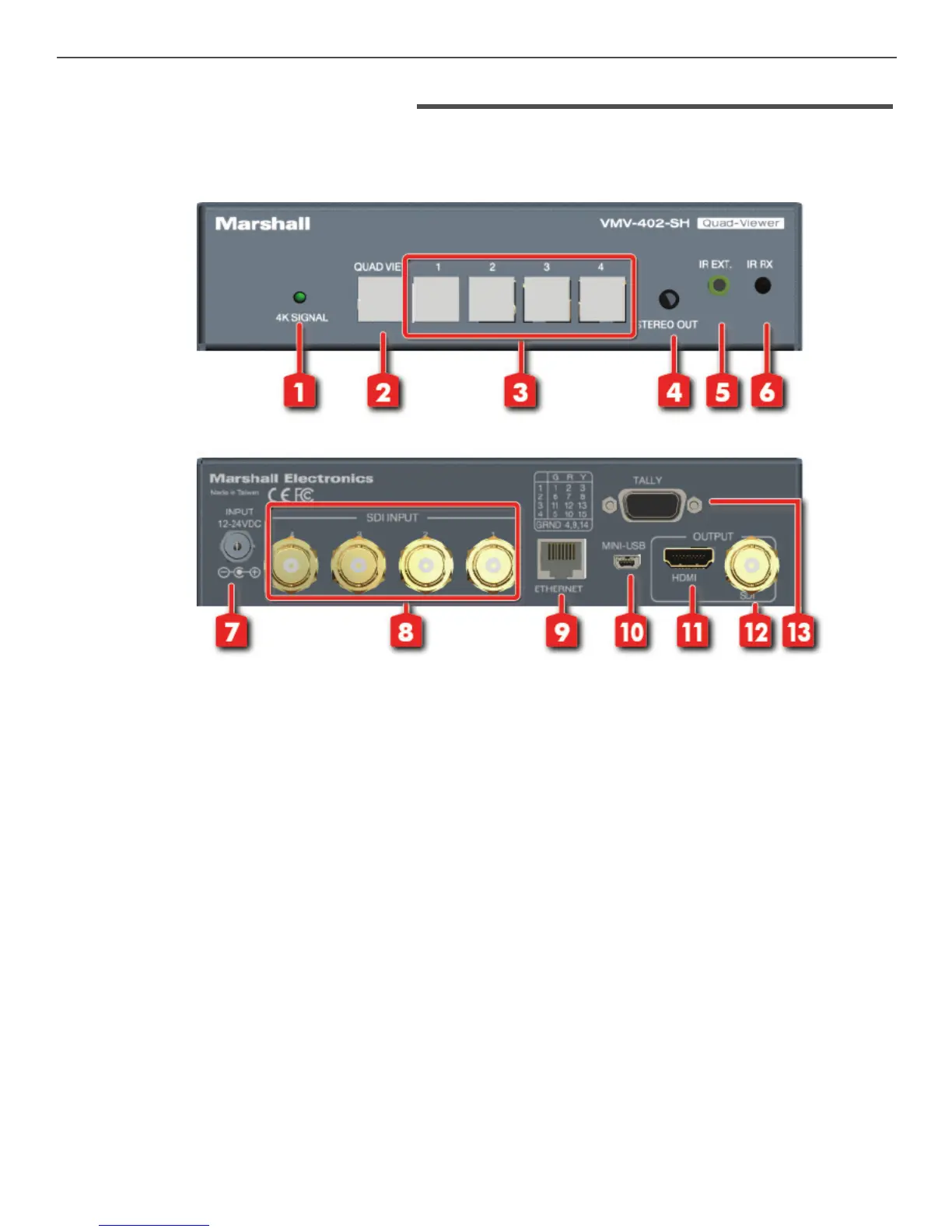

5. Panel Descriptions
1. 4K Signal LED: Lighted when output is set for 4K (HDMI output)
2. Quadview Button: Toggles between default quad-view layouts
3. Input Select Buttons: Selects between sources. The button will illuminate when source is selected.
4. Stereo out: Stereo audio output
5. IR Extension: 3.5mm output for IR receiver extension cable
6. IR Sensor: IR sensor for receiving commands from IR remote
7. DC 24V Input: Connects to the +12V or +24V DC power supply unit
8. Source 1-4: 3G-SDI inputs
9. Ethernet: Ethernet control port
10. Mini-USB Input: Connects to computer for control
11. HDMI Output: Provides the selected Program Output
12. SDI Output: Provides the selected Program Output
13. Tally
Front Panel
Rear Panel
VMV-402-SH Manual
www.marshall-usa.com
