6. Hardware Installation
1. Connect display, recorder, etc. to SDI or HDMI output of the VMV-402-SH
2. Connect the SDI input sources to the inputs of VMV-402-SH
3. Securely attach 5V power supply unit to the locking power jack
4. Use IR remote or computer software to switch between input channels

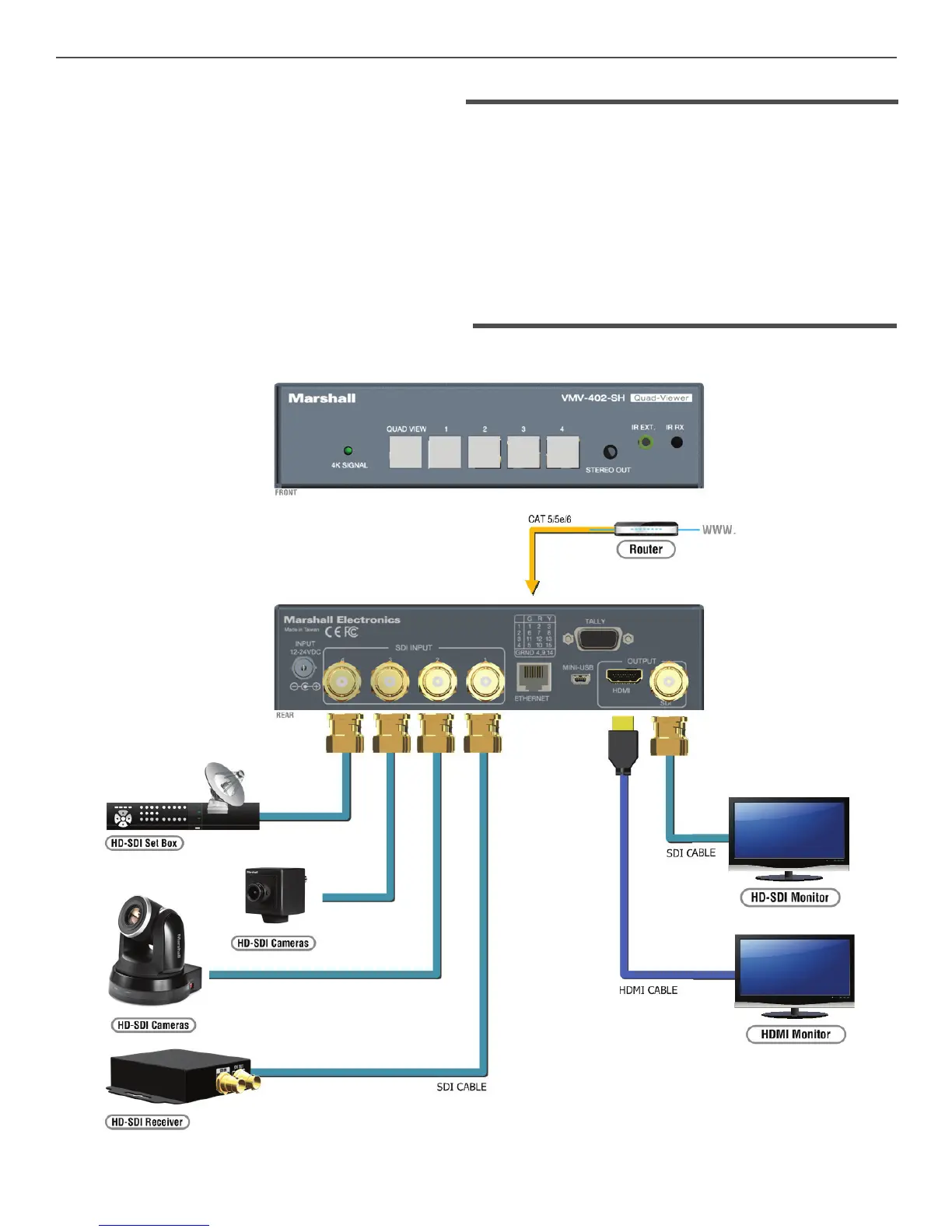

7. Connection Diagram
