VS-570-HDSDI User Manual
2.0 Megapixel Speed Dome Manual
System Connections
VS-570-HDSDI IP Cameras can be connected in either 1 to 1 connection where one VS-570-HDSDI
is connected to one PC client or a decoder system or, 1 to many connections where one VS-570-
HDSDI can be connected to several PCs and decoder systems. The VS-101 video server can work as a
video decoder which takes the data from a video server or IP camera, decodes and outputs analog
or digital video, HDMI and HDSDI.
Topology

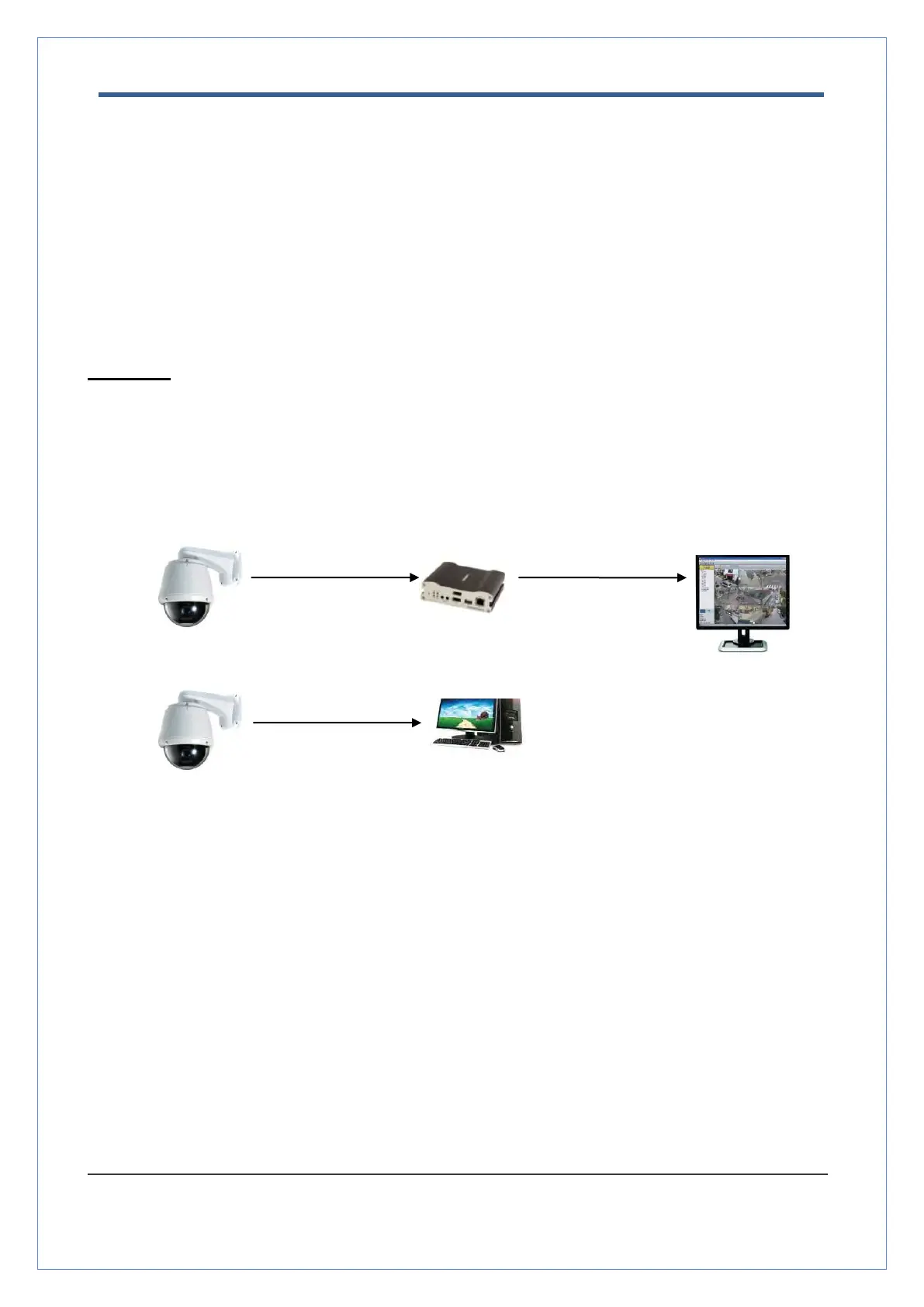

Generally, the VS-570-HDSDI and PC or a decoder is connected in 1-to-1 mode or 1-to many configuration.
1:1 Connection .
One VS-570-HDSDI is installed at a site where video images are transmitted. A PC or a decoder is
installed at a central location to receive and view the video images on an analog monitor. Audio and
serial data are transferred in either direction.
To Next Page
