Martin EVO - EVO Return Roller Dimensions

Martin Engineering M3796-05/12 14 EVO
®
Return Roller

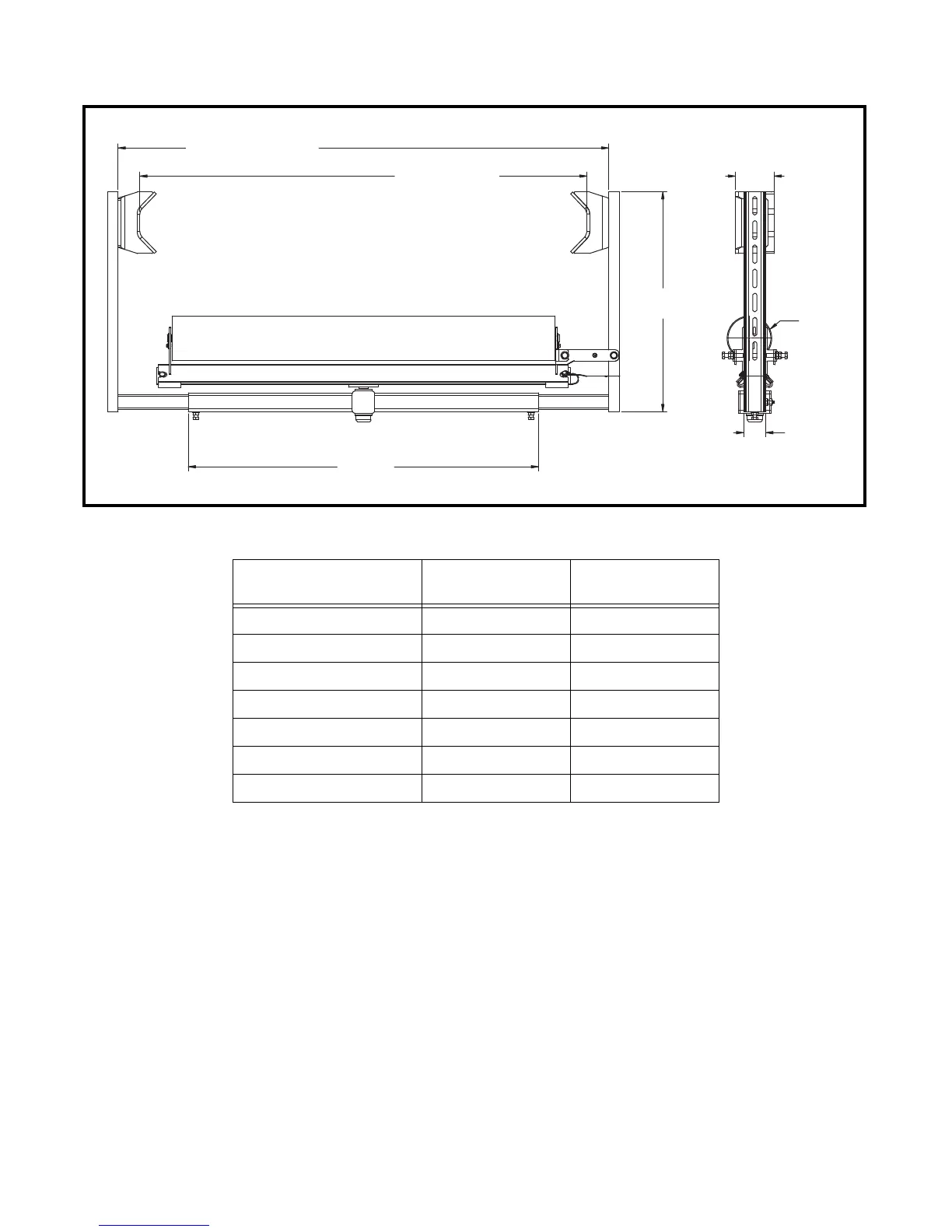

Figure 4. EVO
®
Return Roller Dimensions
Part Number
Dim. A
in. (mm)
Dim. B
in. (mm)
UCRR-007000-24X 36 (914) 29 (737)
UCRR-007000-36X 48 (1219) 37 (940)
UCRR-007000-42X 54 (1372) 43 (1092)
UCRR-007000-48X 60 (1524) 47 (1194)
UCRR-007000-54X 66 (1676) 55 (1397)
UCRR-007000-60X 72 (1829) 51 (1295)
UCRR-007000-72X 84 (2134) 61 (1549)
Dim. B
29.50
(749)
Dim. A
Standard Stinger
Dim. A
EVO
®
Stinger
5.20
(132)
3.00
(76)
Ø6.00
(152)
Part Numbers
