Martin EVO User Manual

Martin Engineering M3796-05/12 4 EVO
®
Return Roller
Installing Return Roller
Installing EVO
®
Return Roller

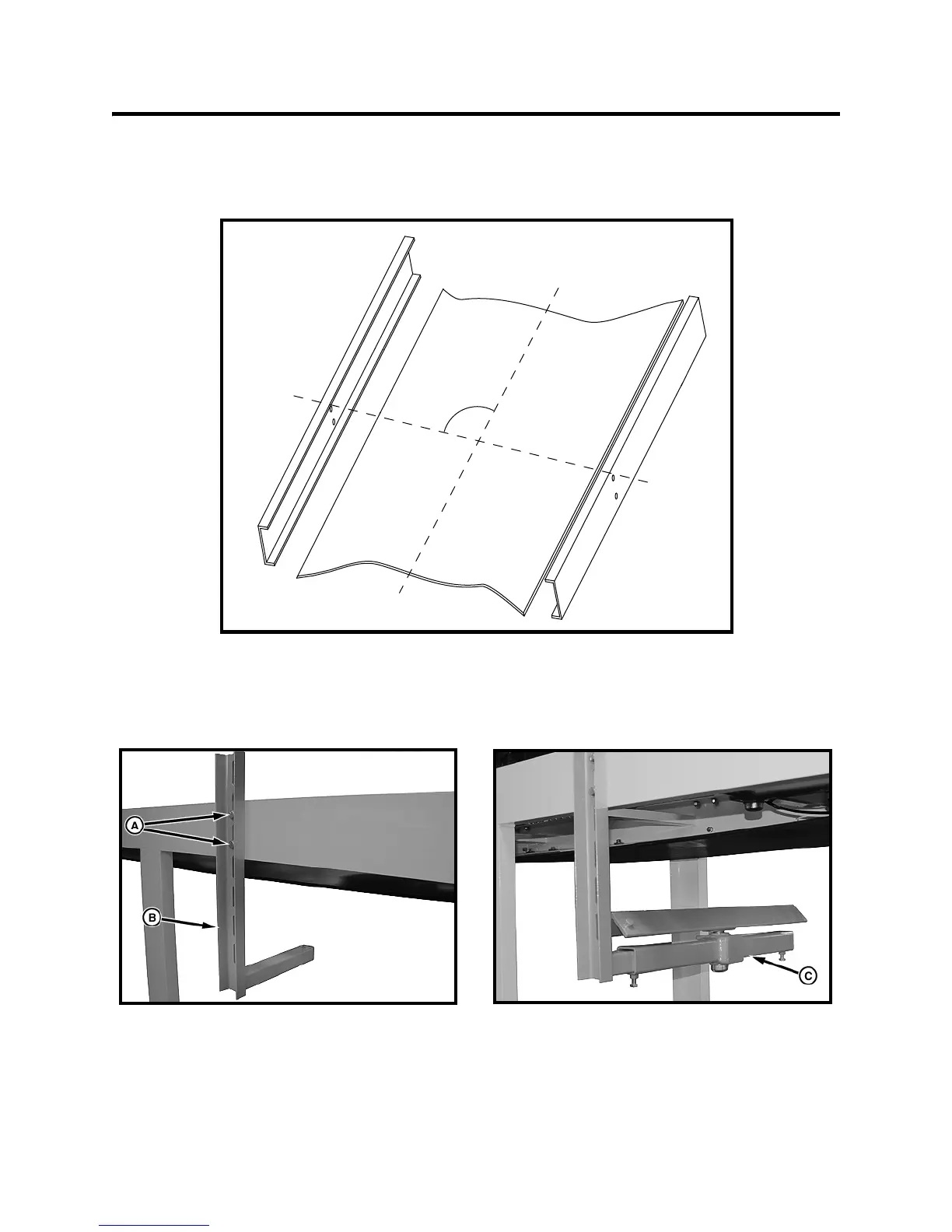

1. Remove existing return idler and mounting brackets.
2. Mark holes for hanger tubes opposite of each other and perpendicular to
belt.
3. Drill or torch holes into stringer.
4. Install hanger tube (B) on far side stringer using cap screws, washers, and
nuts (A), but do not tighten.
5. Slide pivoting weldment (C) onto hanger tube (B).
90°
C
L
A. Cap Screw, Washers, and Nut (2 used) B. Hanger Tube C. Pivoting Weldment
Installation
