Martin M6 Safety And Installation Guide

11 © 2013 Martin Professional A/S
Martin M6 Safety and Installation Guide

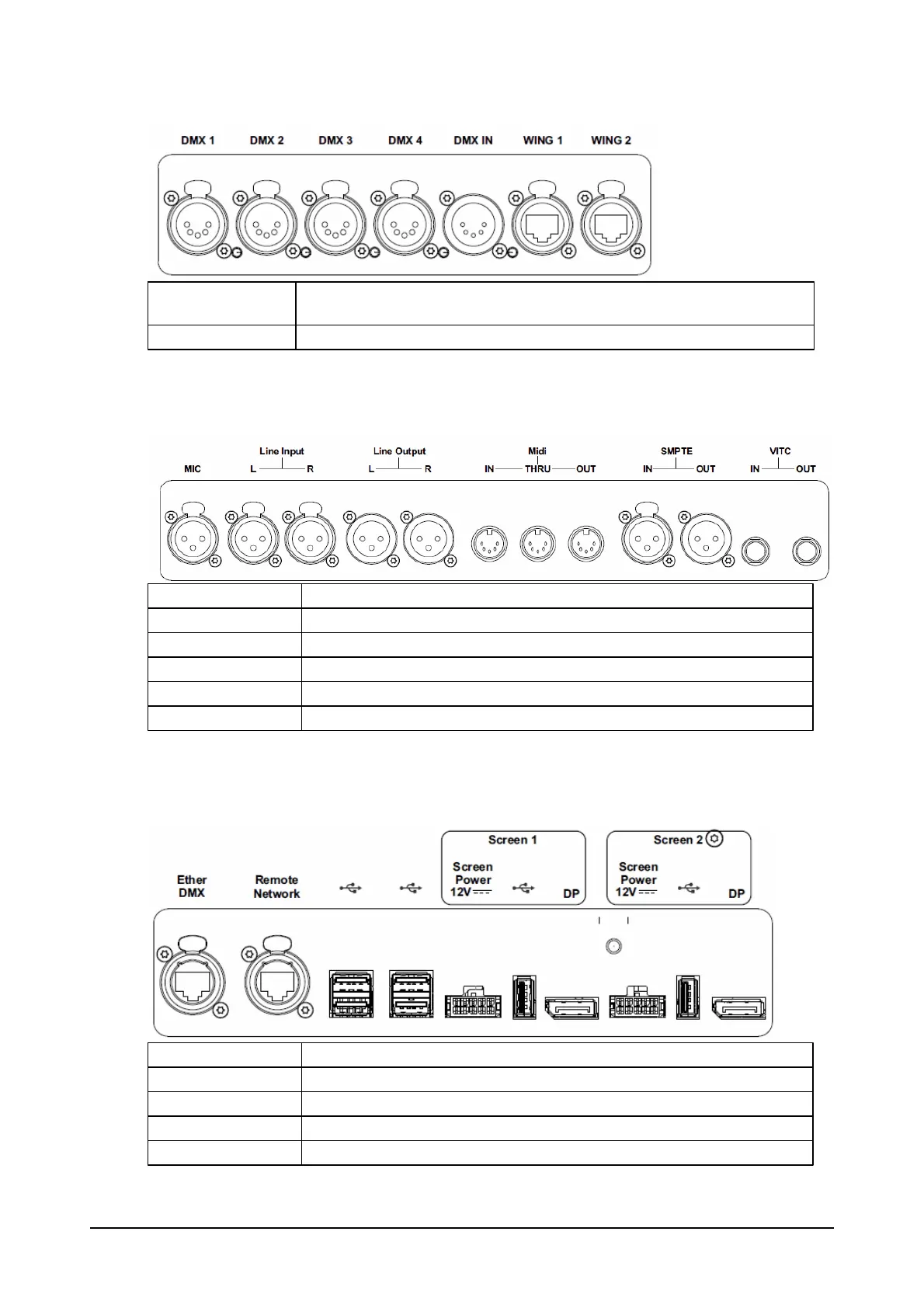

DMX and Wing
DMX 1-4
XLR 5-pin female DMX Outputs, RDM compatible, bidirectional for DMX
Input
Wing 1 + 2
2x RJ45 Ethercon USB for M-Series Modules (max. 500ma.)
Audio, MIDI, Timecode
MIC
XLR 3-pin microphone input
Line Input L+R
XLR 3-pin balanced audio input
Line Output L+R
XLR 3-pin balanced audio output
MIDI In, Out, Thru
5pin DIN MIDI
SMPTE In+Out
XLR 3-pin LTC Timecode
VITC In+Out
BNC Video Interval Timecode
Network, Video, USB
Ether DMX
RJ45 Ethercon Gigabit Network
Remote Network
RJ45 Ethercon Gigabit Network
USB
USB-A 2.0 (max 500ma)
Screen Power
12V Power outlet for Martin M-Series BriteTouch screen only
Display 1+2
DisplayPort Output

Martin M6 Specifications

General

Brand	Martin
Model	M6
Category	Controller
Language	English
