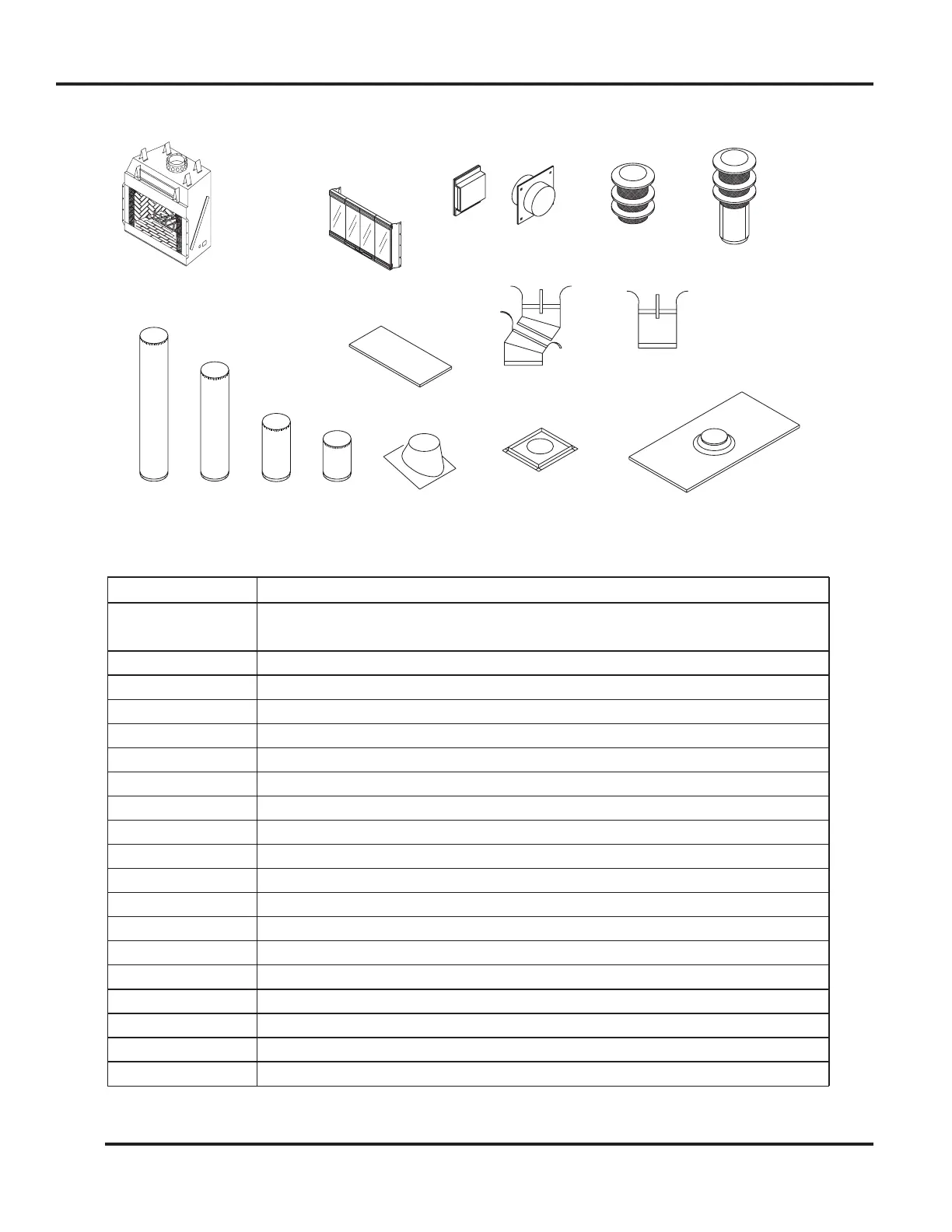

FIREPLACE COMPONENTS
FIGURE 14
LE30
LE30
30
30
˚ ELBOW SET
ELBOW SET
LCS
LCS
CHIMNEY SUPPORT
CHIMNEY SUPPORT
LCLF FLAT WASHER 
LCLF FLAT WASHER 
36" x 72" (13-1/2" DIA. HOLE)
36" x 72" (13-1/2" DIA. HOLE)
AK4 COMBUSTION
AK4 COMBUSTION
AIR ASSEMBLY
AIR ASSEMBLY
WSB60
WSB60
GLASS DOORS
GLASS DOORS
L48 L36 L18 L12
L48 L36 L18 L12
CHIMNEY SECTIONS
CHIMNEY SECTIONS
SB6000
SB6000
LCL TELESCOPING
LCL TELESCOPING
CHIMNEY CAP
CHIMNEY CAP
LC
LC
CHIMNEY CAP
CHIMNEY CAP
612-1212
612-1212
FLASHING
FLASHING
LF-FS-2
LF-FS-2
FIRESTOP SPACER
FIRESTOP SPACER
H2074
H2074
HEARTH EXTENSION
HEARTH EXTENSION
KIT
KIT
H2074
WSB60
AK4
LCLF
403
FP-4-U
LF-FS-30
LF-FS-2
1212
612
LCL
LC
LCS
LE30
L12
L18
L36
L48
SB6000
MODEL NUMBER
MODEL NUMBER
Hearth extension-protects floor against sparks and radiant heat (residential ins
Hearth extension-protects floor against sparks and radiant heat (residential ins
tallation) 20"x74".
Optional polished brass glass door kit.
4-inch outside combustion air assembly.
3'x7' Flat chase flashing. For use with LCL chimney cap.
4-inch duct connector (for splicing FP-4 ducts). Includes two clamps.
4-inch duct connector (for splicing FP-4 ducts). Includes two clamps.
4-inch insulated combustion air duct-8-foot lengths.
Firestop spacer--for 30 degree chimney incline through ceiling or floor.
Firestop spacer--for 30 degree chimney incline through ceiling or floor.
17-inch firestop spacer. One required at each ceiling or floor level.
17-inch firestop spacer. One required at each ceiling or floor level.
6/12-12/12 pitch flashing for contemporary installation.
0-6/12 pitch flashing for contemporary installation.
Round telescoping chimney cap. For use with flat chase top terminations.
Round telescoping chimney cap. For use with flat chase top terminations.
Round chimney cap for contemporary installation. Includes storm collar.
Round chimney cap for contemporary installation. Includes storm collar.
Chimney support (required when chimney height exceeds 30 feet)
Chimney support (required when chimney height exceeds 30 feet)
One pair of 30-degree elbows. Maximum-two pairs (4 elbows per chimney)
One pair of 30-degree elbows. Maximum-two pairs (4 elbows per chimney)
1-foot chimney section (11-inch diameter flue/13" dia. outer pipe)
1-foot chimney section (11-inch diameter flue/13" dia. outer pipe)
1 1/2- foot chimney section (11-inch diameter flue/13" dia. outer pipe)
1 1/2- foot chimney section (11-inch diameter flue/13" dia. outer pipe)
3-foot chimney section (11-inch diameter flue/13" dia. outer pipe)
3-foot chimney section (11-inch diameter flue/13" dia. outer pipe)
4-foot chimney section (11-inch diameter flue/13" dia. outer pipe)
4-foot chimney section (11-inch diameter flue/13" dia. outer pipe)
See installation instructions for details.
50 Inch front opening fireplace. Includes firescreen, sealing flue damper and ou
50 Inch front opening fireplace. Includes firescreen, sealing flue damper and ou
tside combustion air
capability. When installed, outside combustion air can be connected to either le
capability. When installed, outside combustion air can be connected to either le
ft or right side.
DESCRIPTION
DESCRIPTION
53D9027. Rev 1 03/03
