Martin Tracker Series - Installing the MARTIN Tracker (Lower Unit)

© Martin Engineering GmbH 15 M3625UK-10/15
Installation
5.2.2 Installing the MARTIN
®
Tracker conveyor belt centring system
(lower unit)
1. Remove the existing return roller (1, Fig. 1) and keep them
aside. The roller is required for further installation.
2. Install the return roller that has been removed in the supporting
construction of the lower tracker unit (Fig. 1).
3. Centre the roller on the tracker and secure it with 4 screws
(1, Fig. 2).

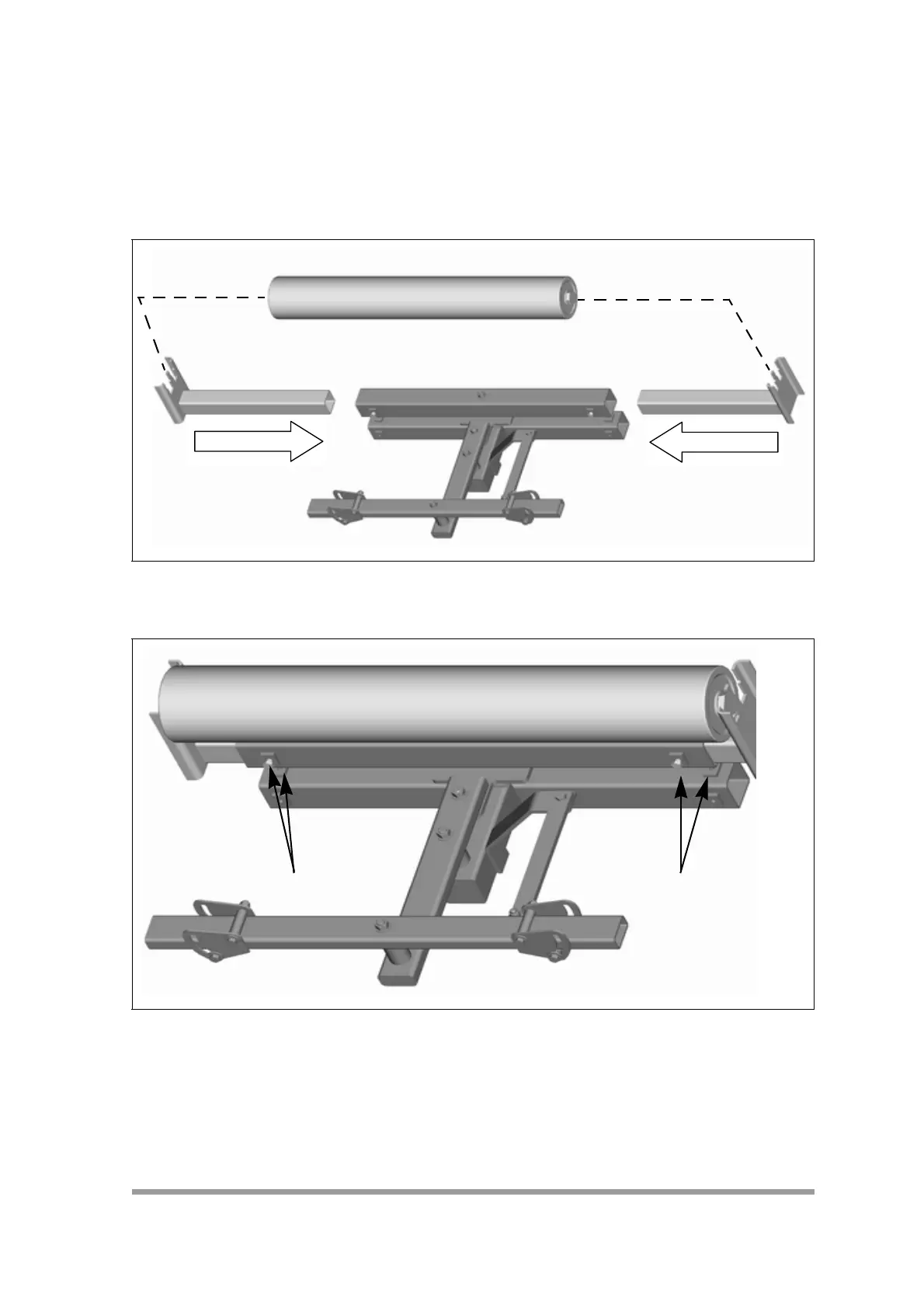

Fig. 1: Installing the return roller
Fig. 2: Centring and securing the return roller
