Martin Tracker Series - Installing the MARTIN Tracker Conveyor Belt Centring System (Upper Unit)

© Martin Engineering GmbH 23 M3625UK-10/15
Installation
5.2.3 Installing the MARTIN
®
Tracker conveyor belt centring system
(upper unit)
1. Remove the existing trough roller station (1, Fig. 14) available
in the conveyor system.
2. Fix the trough roller station to the roller station holder (2, Fig.
14) of the tracker with screws or by welding it.
NOTE
If possible, remove the conveyor belt to create space for the instal-
lation.
NOTE
In the following step, keep the dismantled trough roller station
available since it would still be needed in the course of the installa-
tion.

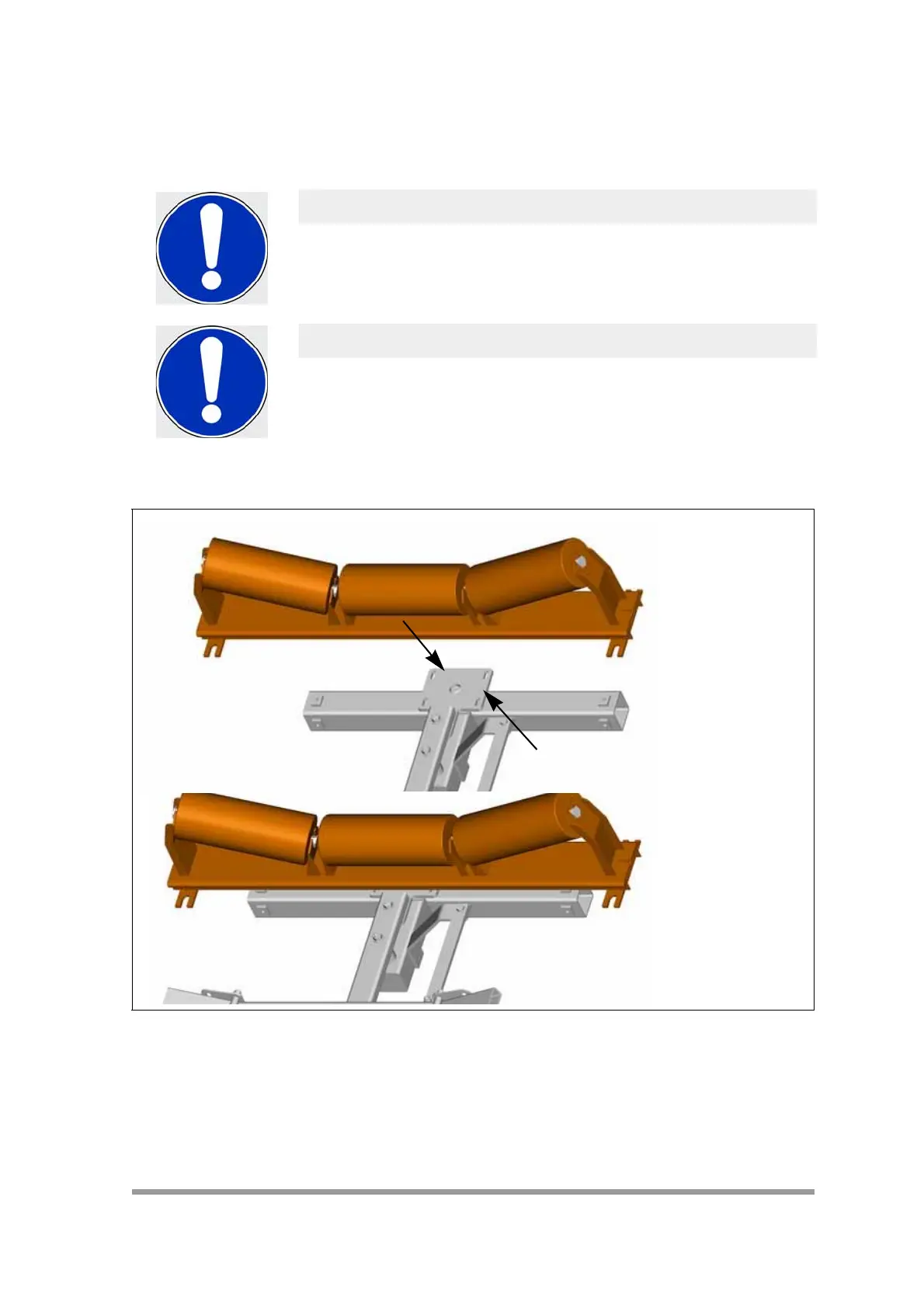

Fig. 14: Assembling the trough roller station / roller station holder
2
1
