Installation

3. Position the installation frame on the opposite side on the sup-

port construction and mark the holes (1, Fig. 15).

4. Drill or cut the holes (14 mm dia.) in the existing support con-

struction.

5. Fix the installation frame on the side turned away.

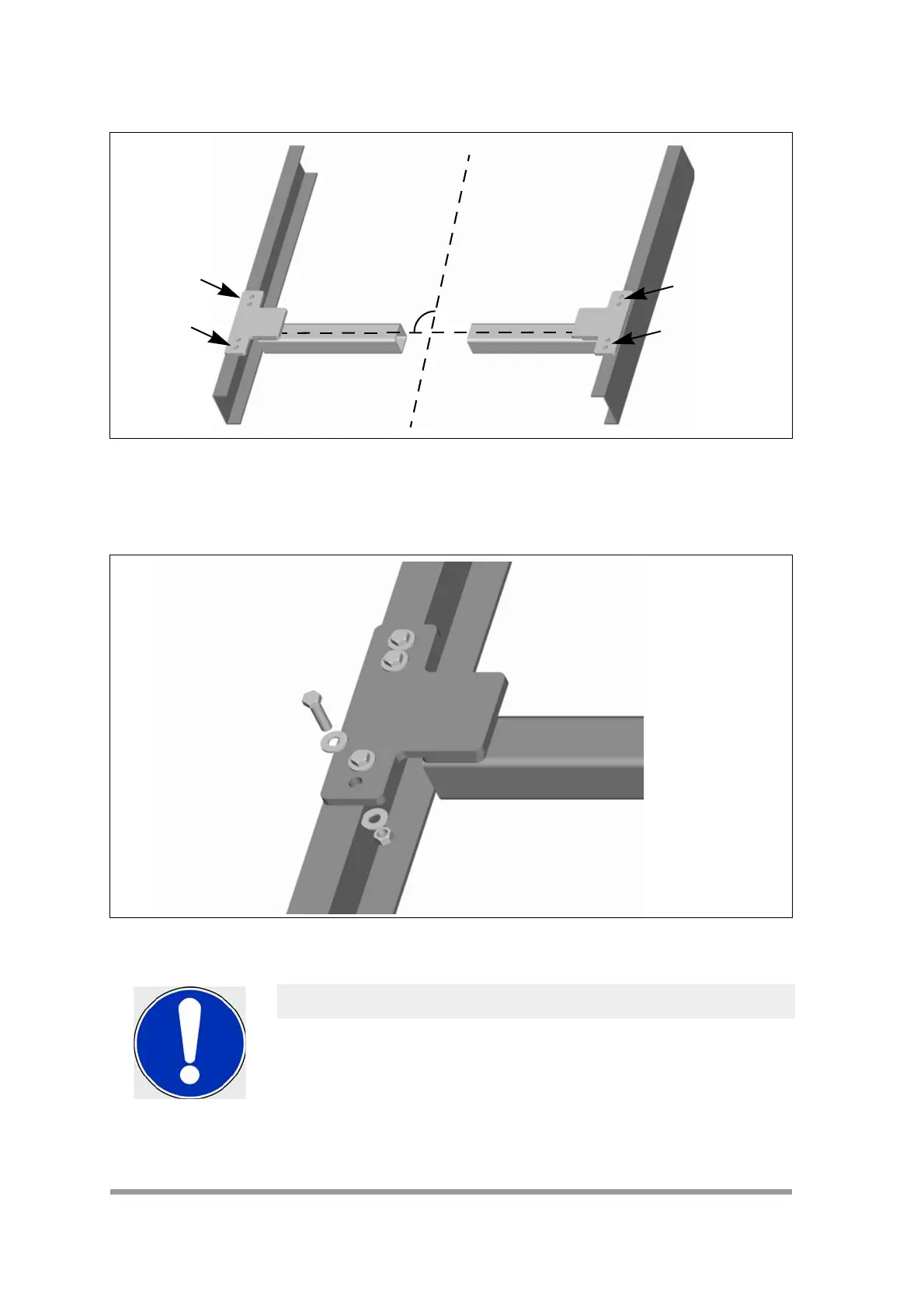

Fig. 15: Positioning the installation frame

Fig. 16: Mounting the installation frame

NOTE

Do not tighten the screw connection yet.

90°
