Installation
6. Insert the pre-installed tracker in the installation frame installed
earlier. Pay attention to the direction of movement of the con-
veyor belt (1, Fig. 17) and the alignment of the guide unit
(2, Fig. 17).

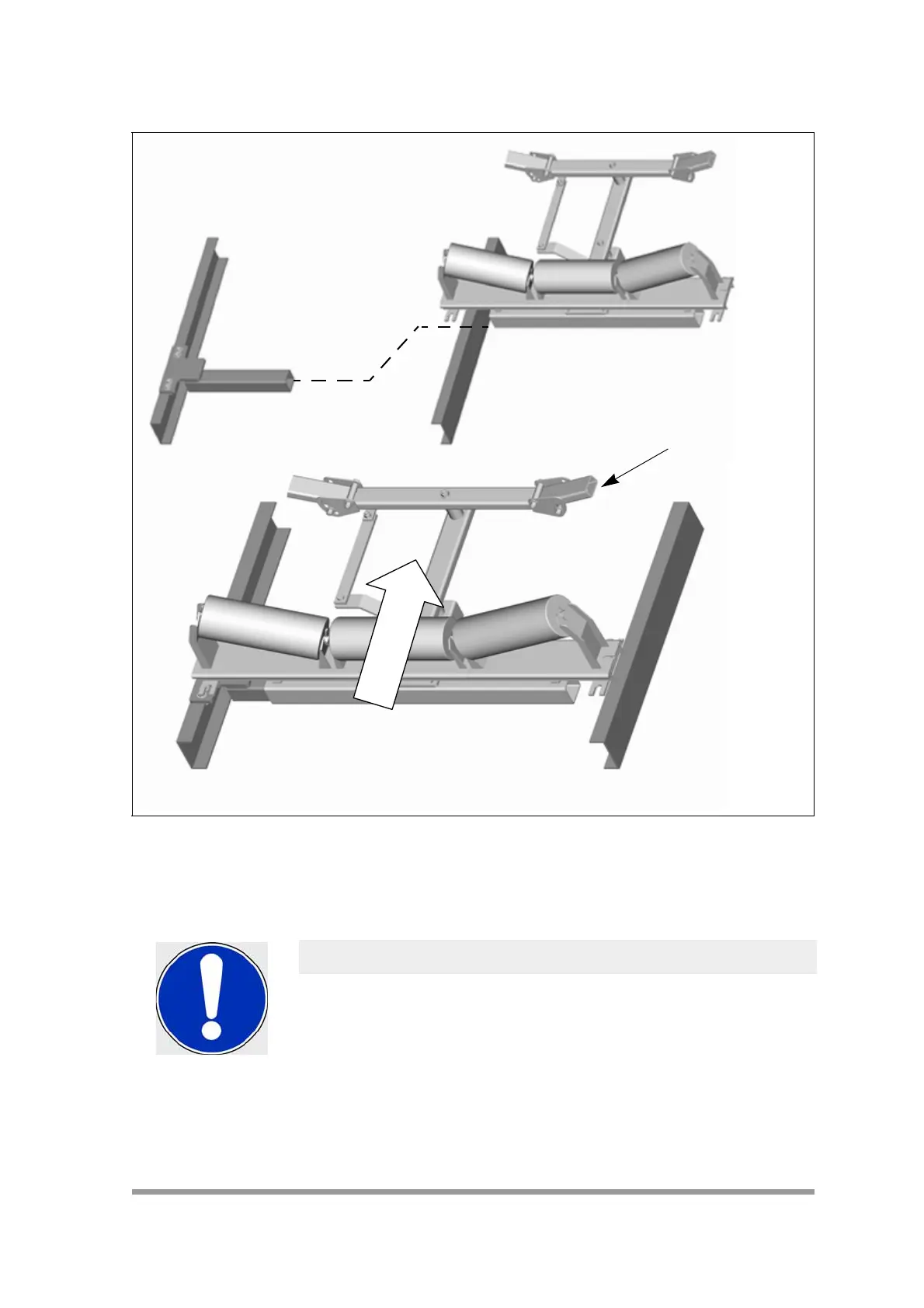

Fig. 17: Installing the tracker
NOTE
If necessary, use the play in the installation frame to come up to
the support construction.
