© Martin Engineering GmbH 17 M3625UK-10/15
Installation
4. Mark the holes for the installation frame on the opposite side
(Fig. 3). Ensure that the lower holes (1, Fig. 4) are accessible
for fixing screws from both sides.
5. Drill or cut holes (14 mm dia.) at the points marked earlier in the
stringer.
6. Fix the installation frame with screws (Fig. 5).

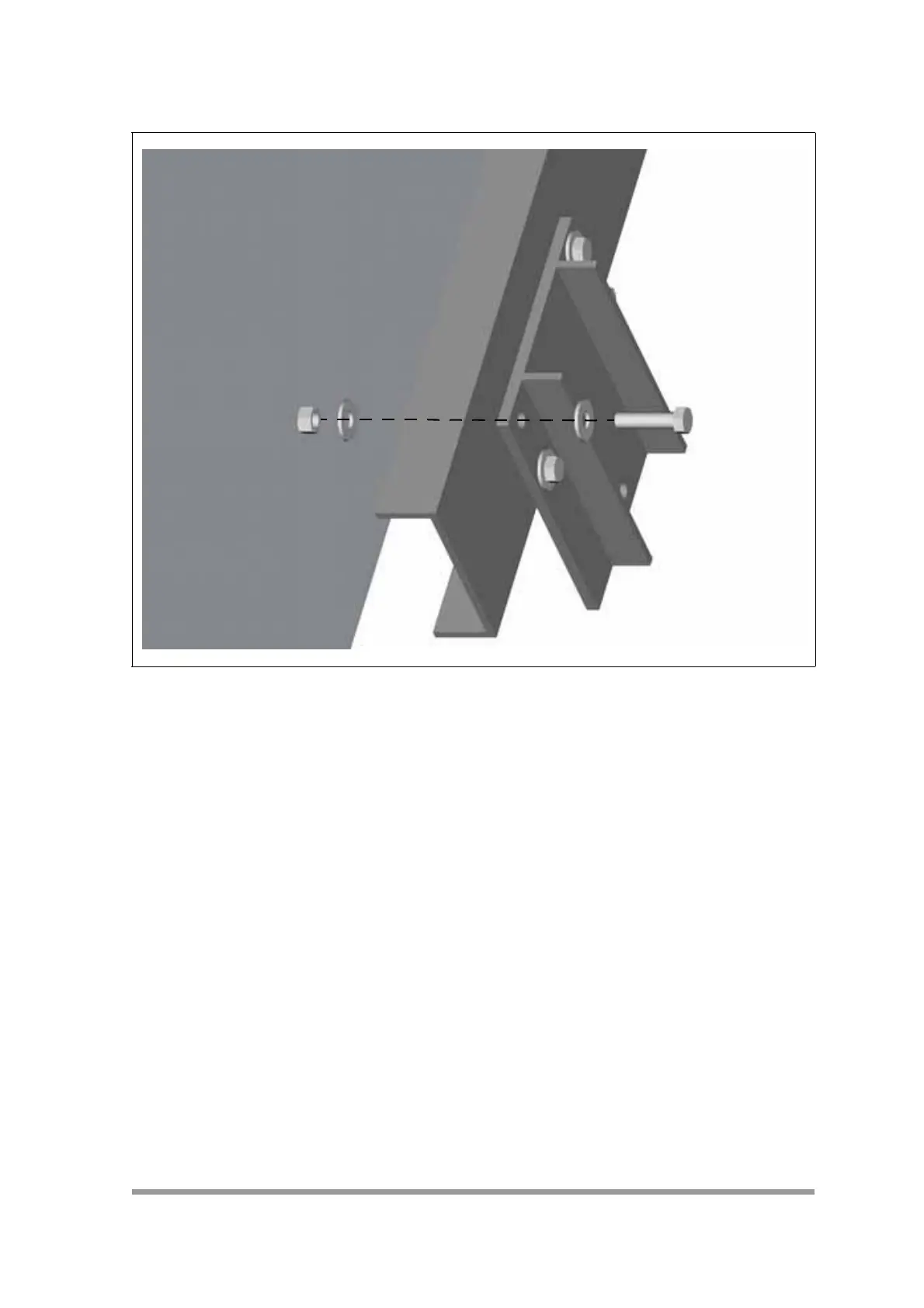

Fig. 5: Fix the installation frame with screws
