5
speaker is not magnetically shielded and therefore
should not be placed directly beside or atop a
CRT television.
Toe-In:.When installed on a surface and used as
front channels we recommend aiming your speak-
ers towards the primary listening position.
INSTALLING ON A WALL

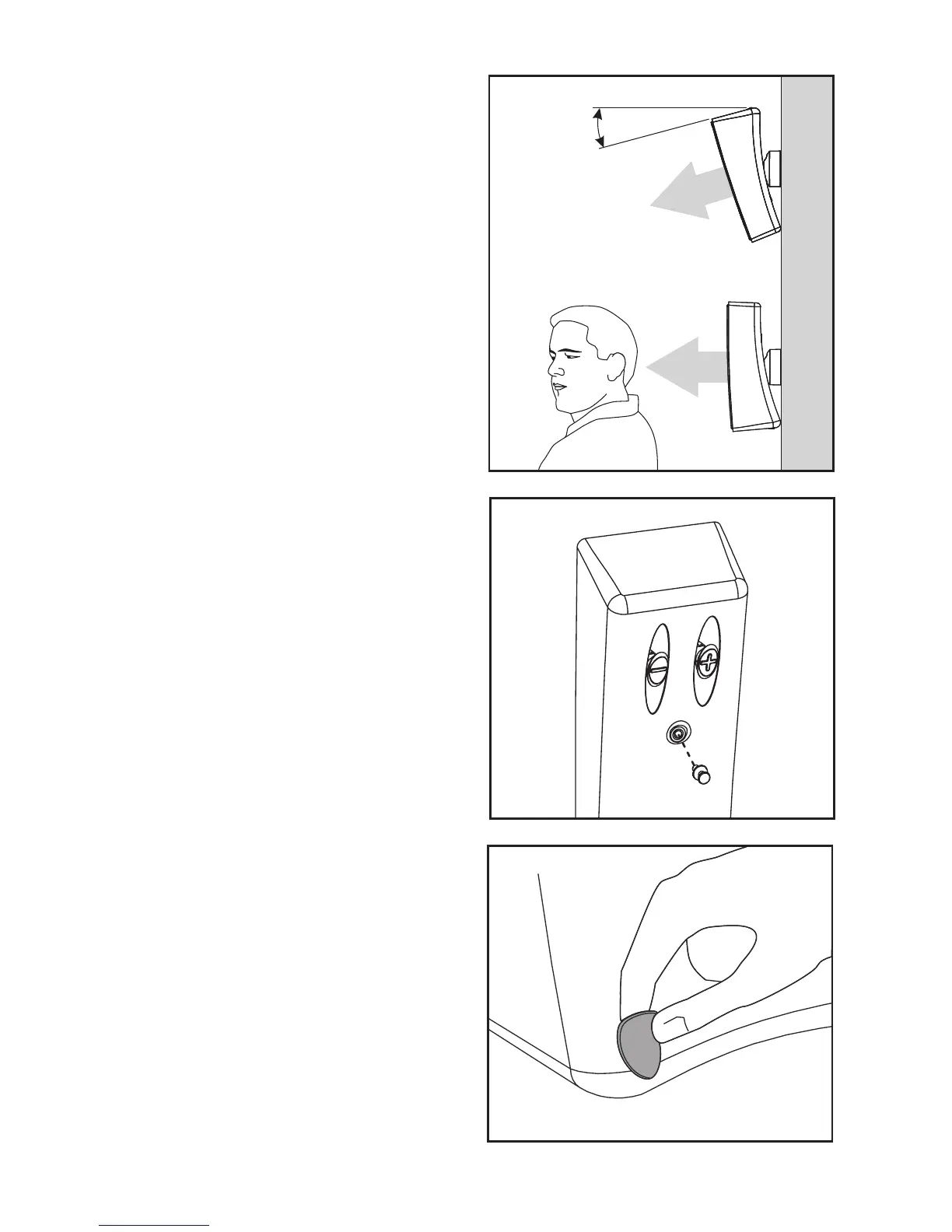

If the speaker is being mounted approximately AT
EAR LEVEL, the speaker should be oriented with
the tweeter at top. This will disperse sound directly
towards the desired listening area (fig. 5).
If the speaker is being mounted ABOVE EAR LEVEL,
the speaker should be oriented with the tweeter at
bottom. This will disperse the sound down at a 20°
angle towards the listening area (fig. 5).
Note: These instructions assume the mounting
surface is standard wood frame and sheet rock
construction. If you wish to mount to another type
of surface, consult a bonded contractor.
Required.hardware.(included):
• (1) Installation template
• (1) Wall bracket
• (1) Wall bracket spacer (Motion 4 only)
• (2) 1.5-inch Phillips sheet metal screws
• (2) Sheet rock anchors
• (1) Shoulder bolt
• (2) Wall pads
Required.tools.(not.supplied):
• Ruler
• Level
• Electric drill and 1/4” and 1/8” drill bits
• Phillips screwdriver
1 Screw the shoulder bolt into the back (fig. 6).
2 Affix the wall pads to the back of the speaker
at the lower contact points (fig. 7).
Fig. 6
Fig. 7
20°
Fig. 5
