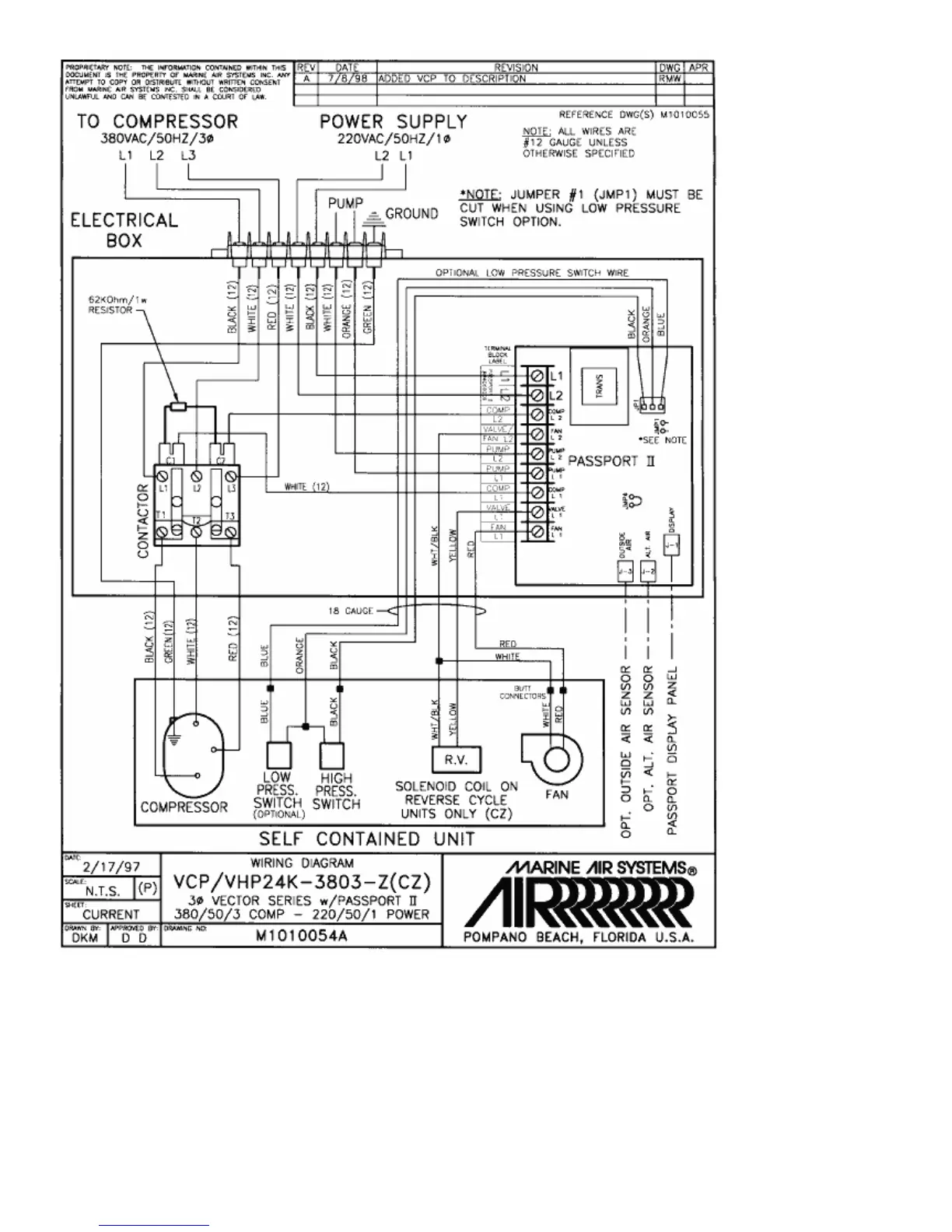

MANUAL CONTROL PANEL (MCP) INSTALLATION
The MCP should be located within cap tube length of the a/c unit. The 3 knob MCP is configured either vertically (shown) or
horizontally. The cut out size is 2.5" by 7.0", see MCP for orientation. Once the cut out is made, carefully uncoil the copper cap
tube with return air sensor (copper bulb) and route the control wires and cap tube through the hole and back to the a/c unit
using caution not to kink the cap tube. Mount the return air sensor into the clips provided on the evaporator coil. If the
return air sensor cannot be mounted on the evaporator coil, mount it behind the return air grille. The sensor must be mounted in
